LX90-ATPET (1992)
Toyota Mark 2
Production
Oct 1992
-
Sep 1996
Engine
2LTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

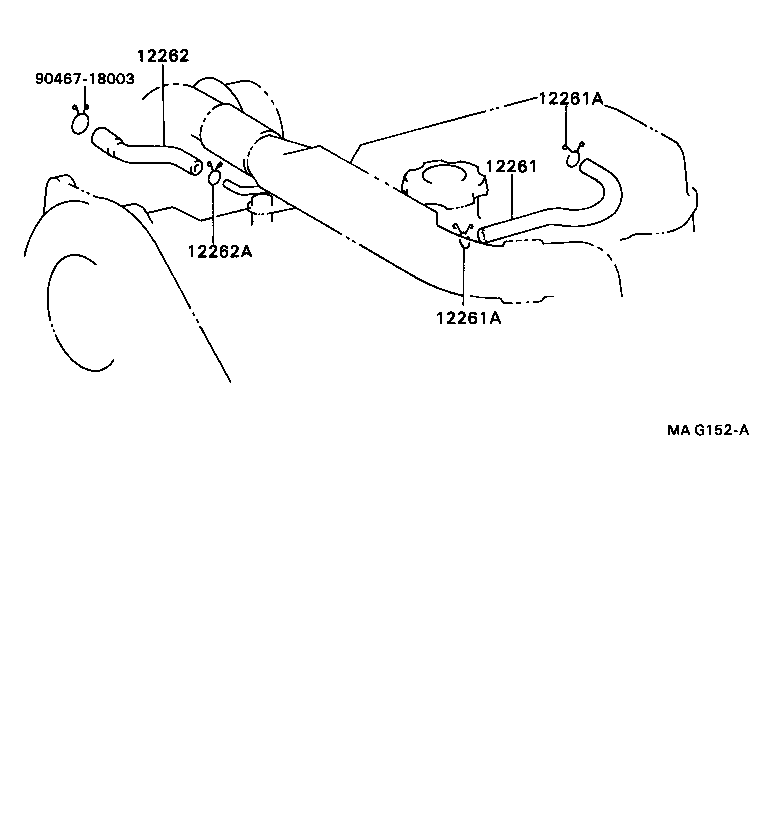

(9210-9509)2LTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-54090 |
2LTE..LX90 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-18003 |
2LTE..LX90 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-18003 |
2LTE..LX90 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-54031 |
2LTE..LX90 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18003 |
2LTE..LX90 |
1 | ||
| Common parts | ||||
| 90467-18003 | ||||

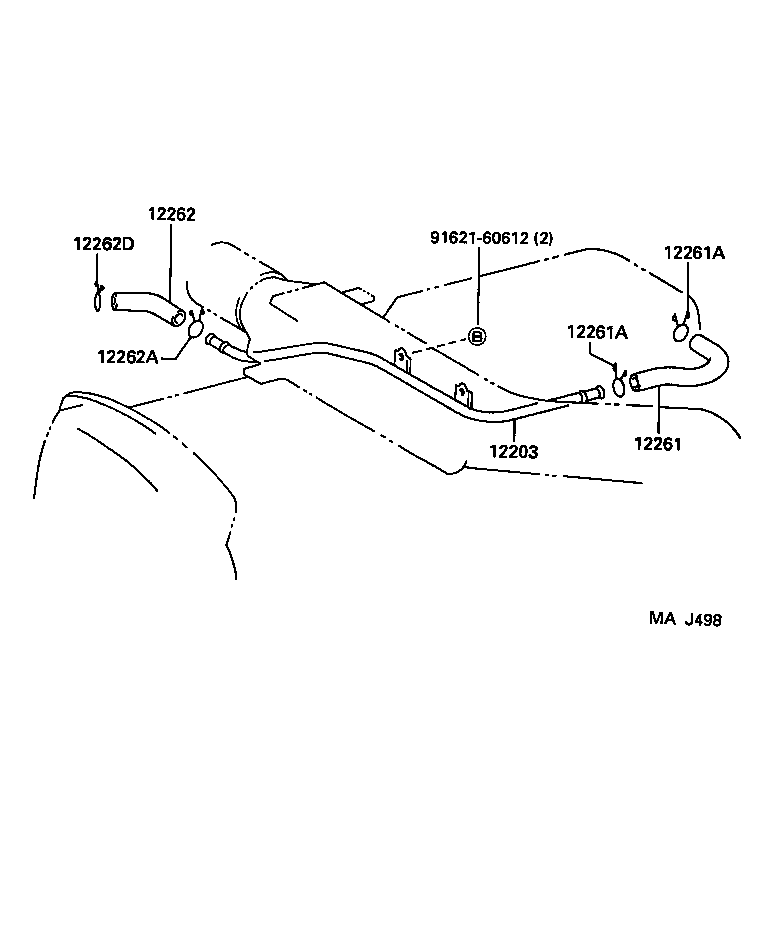

(9509- )2LTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12203 - PIPE SUB-ASSY, VENTILATION | ||||
| 12203-54010 |
2LTE..LX90 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-54090 |
2LTE..LX90 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-18003 |
2LTE..LX90 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-18003 |
2LTE..LX90 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-54031 |
2LTE..LX90 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18003 |
2LTE..LX90 |
1 | ||
| 12262D - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-18003 |
2LTE..LX90 |
1 | ||
| Common parts | ||||
| 91621-60612 | ||||
