LX90-ATMNT (1992)
Toyota Mark 2

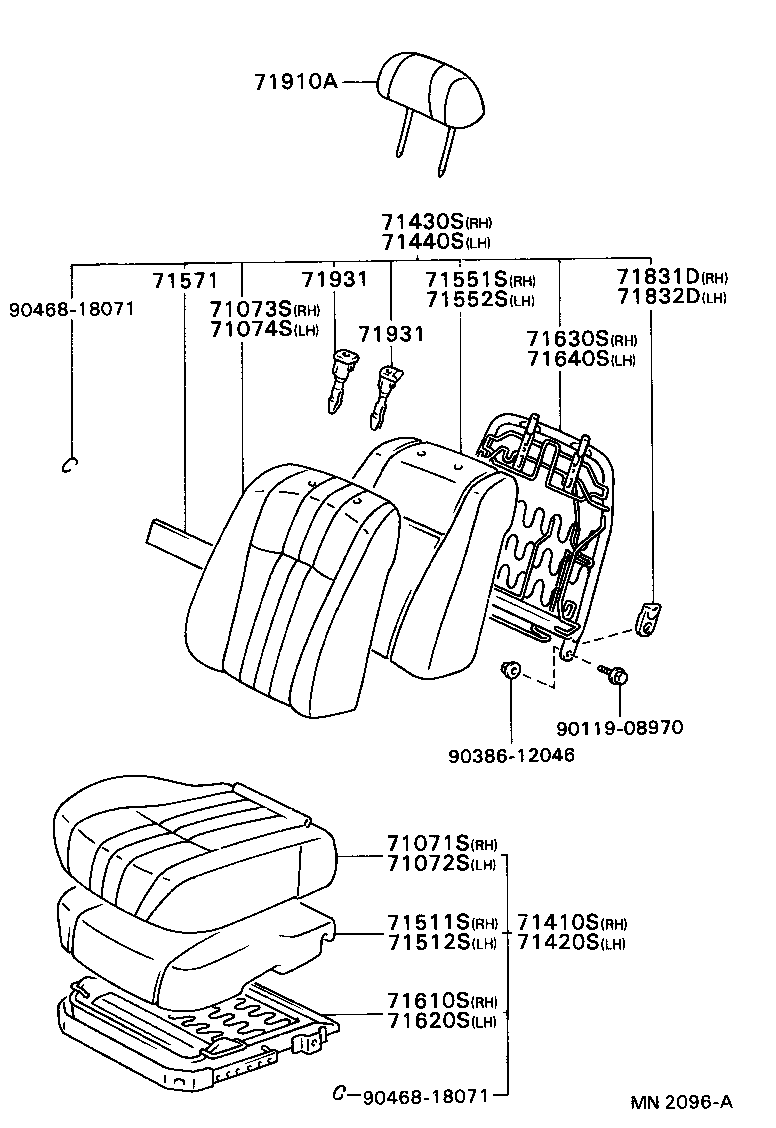

ILLUST NO. 1 OF 2(9210- )GL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2A700E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71071-2A700J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2A250J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71072-2A250E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2C130J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71073-2C130E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2A370E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71074-2A370J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2C060J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71410-2C060E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2A450J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71420-2A450E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2C410J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71430-2C410E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2C260J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71440-2C260E0 |
LX90,SX90..GL BEIGE,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22530 |
LX90,SX90..GL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-22150 |
LX90,SX90..GL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22520 |
LX90,SX90..GL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22520 |
LX90,SX90..GL |
1 | ||
| 71571 - PAD, FRONT SEAT BACK SILENCER, A | ||||
| 71571-22200 |
LX90,SX90..GL |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22360 |
GX90,LX90,SX90;JZX90..TOUS,TOUV |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22170 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22580 |
LX90,SX90..GL |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22450 |
LX90,SX90..GL |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-22050 |
JZX90..TOUS,TOUV;GX90,JZX93,LX90,SX90..GD,GL,GRO |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-22050 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-22880J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
2 | ||
| 71910-22880E0 |
LX90,SX90..GL BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71931-10020J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ無,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-10070E7 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-10020E7 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-10070J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ付,GRAYISH BLUE,TRIM8# |
2 | ||
| 71931-10020J2 |
GX90,JZX90,91,LX90,SX90 ﾛｯｸ無,GRAYISH BLUE,TRIM8# |
2 | ||
| 71930-10070E7 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-10020E7 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90386-12046 | ||||
| 90468-18071 | ||||
ILLUST NO. 2 OF 2(9210- )
ﾏﾆﾕｱﾙ ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-22270E0 |
LX90,SX90..GL SABLE,TRIM4# |
1 | ||
| 71811-22270J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-22200J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71812-22200E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-22110J0 |
GX90,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71861-22110E0 |
GX90,JZX93,LX90,SX90..GD,GL,GRO SABLE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-22130E0 |
GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 71862-22130J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-22040J0 |
GX90,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71875-22040E0 |
GX90,JZX93,LX90,SX90..GD,GL,GRO SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-22040J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71876-22040E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22260 |
GX90,JZX93,LX90,SX90..GD,GL,GRO |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22220 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130E1 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72123-20130J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-22060E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72127-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72128-22060E0 |
GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-22370 |
GX90,LX90,SX90 |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72137-22060E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-22060E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72138-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-22280 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-22050J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72157-22050E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-22010E0 |
GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72158-22010J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH | ||||
| 72301-12090 |
JZX90..TOUS,TOUV;GX90,JZX93,LX90,SX90..GD,GL,GRO |
1 | ||
| 72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH | ||||
| 72301-12090 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-22020E1 |
GX90,JZX93,LX90,SX90..GD,GL,GRO SABLE,TRIM4# |
2 | ||
| 72457-22020J1 |
GX90,LX90,SX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8# |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-22040J0 |
GX90,LX90,SX90;JZX90..TOUS,TOUV GRAYISH BLUE,TRIM8# |
1 | ||
| 72525-22040E0 |
GX90,JZX93,LX90,SX90..GD,GL,GRO SABLE,TRIM4# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-22040E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72526-22040J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08134 | ||||
| 90119-10116 | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 93381-16012 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
ILLUST NO. 2 OF 2(9210- )
ﾊﾟﾜ- ｼ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-22270E0 |
LX90,SX90..GL SABLE,TRIM4# |
1 | ||
| 71811-22270J0 |
LX90,SX90..GL GRAYISH BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-22200J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71812-22200E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-22110J0 |
GX90,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71861-22110E0 |
GX90,JZX93,LX90,SX90..GD,GL,GRO SABLE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-22130E0 |
GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 71862-22130J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-22040J0 |
GX90,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71875-22040E0 |
GX90,JZX93,LX90,SX90..GD,GL,GRO SABLE,TRIM4# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-22040J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 71876-22040E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22260 |
GX90,JZX93,LX90,SX90..GD,GL,GRO |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22220 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72123-20130E1 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72123-20130J1 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-22060E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72127-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72128-22060E0 |
GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72137-22060E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-22060E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72138-22060J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-22050J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| 72157-22050E0 |
GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-22010E0 |
GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4# |
1 | ||
| 72158-22010J0 |
GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-10769 | ||||
| 90167-40044 | ||||
| 90168-40124 | ||||
| 90168-90124 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
