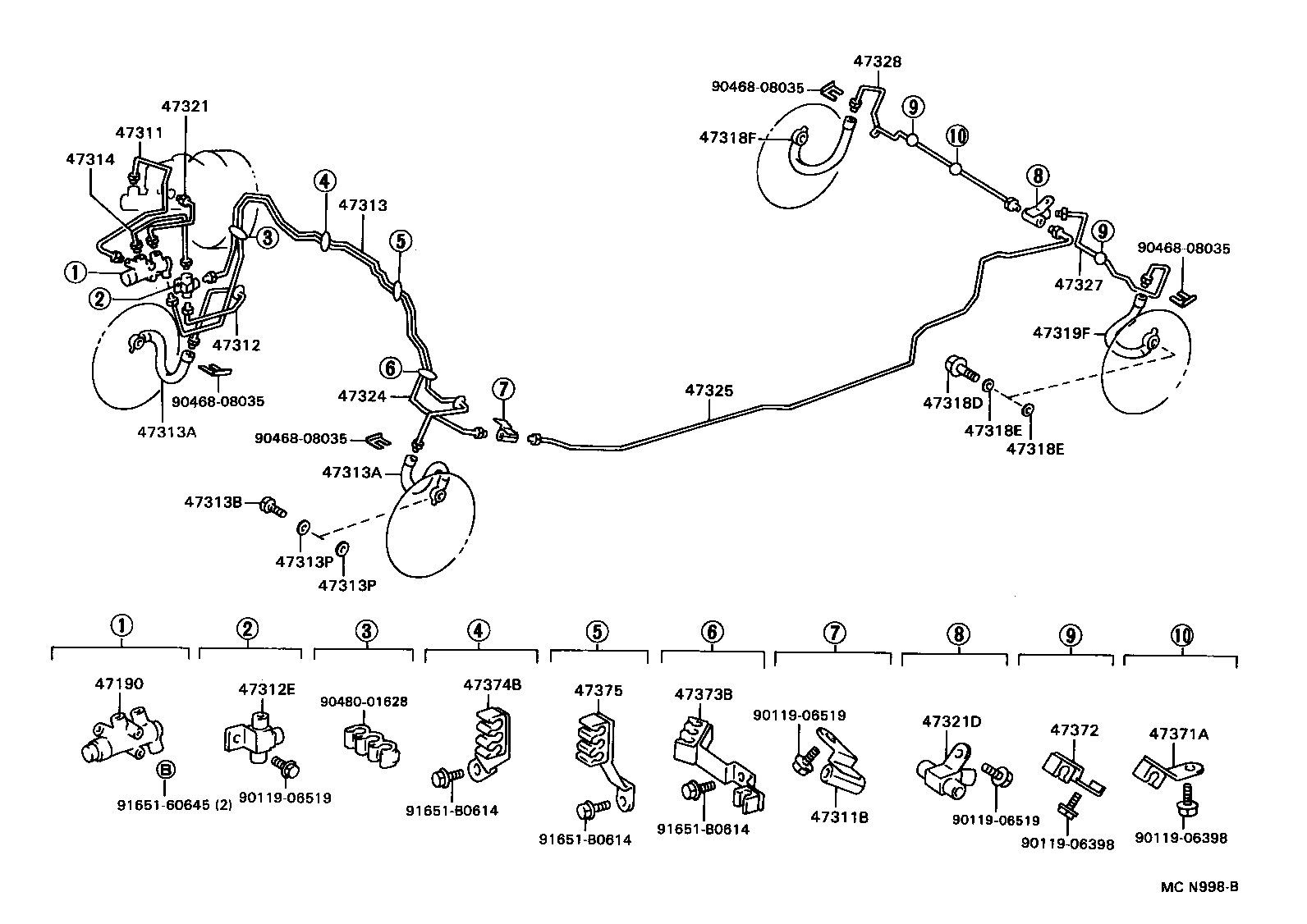

LX90-ATMET (1992)
Toyota Mark 2
(9210- )GX90,JZX90,LX90..GD,GL,GRO,TOUS ; (9310- )JZX93..GD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-22100 |
LX90..ATM ｱﾘ(ABS OR ABS & *TRC) |
1 | ||
| 47190-30190 |
LX90 |
1 | ||
| 47190-22100 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-22590 |
LX90..ATM ｱﾘ(ABS OR *TRC) |
1 | ||
| 47311-22500 |
LX90 |
1 | ||
| 47311-22590 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-22300 |
GX90;LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47312-22330 |
GX90,JZX90,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 47312-22300 |
JZX90,LX90..ATM..(GD,GL,GRO,TOUS) ｱﾘ(ABS OR *TRC) |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10279 |
GX90,JZX90,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 90413-10004 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-22480 |
GX90;LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47313-22480 |
JZX90,LX90..ATM..(GD,GL,GRO,TOUS) ｱﾘ(ABS OR *TRC) |
1 | ||
| 47313-22520 |
LX90 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02735 |
GX90,JZX90,91,LX90,SX90 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02735 |
GX90,JZX90,91,LX90,SX90 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-22210 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47314-22220 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 47314-22210 |
LX90..ATM ｱﾘ(ABS OR *TRC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02733 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02733 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-22260 |
LX90 |
1 | ||
| 47321-22360 |
LX90..ATM ｱﾘ(ABS OR *TRC) |
1 | ||
| 47321-22360 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10281 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-22360 |
JZX90,LX90..ATM..(GD,GL,GRO,TOUS) ｱﾘ(ABS OR *TRC) |
1 | ||
| 47324-22280 |
LX90 |
1 | ||
| 47324-22360 |
GX90;LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-22070 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-22140 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-22140 |
GX90,JZX9#,LX90 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-22420 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-22530 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22400 |
GX90,JZX90,93,LX90..GD,GL,GRO,TOUS |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-22480 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-22490 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-06519 | ||||
| 90468-08035 | ||||
| 90480-01628 | ||||
| 91651-60645 | ||||
| 91651-B0614 | ||||

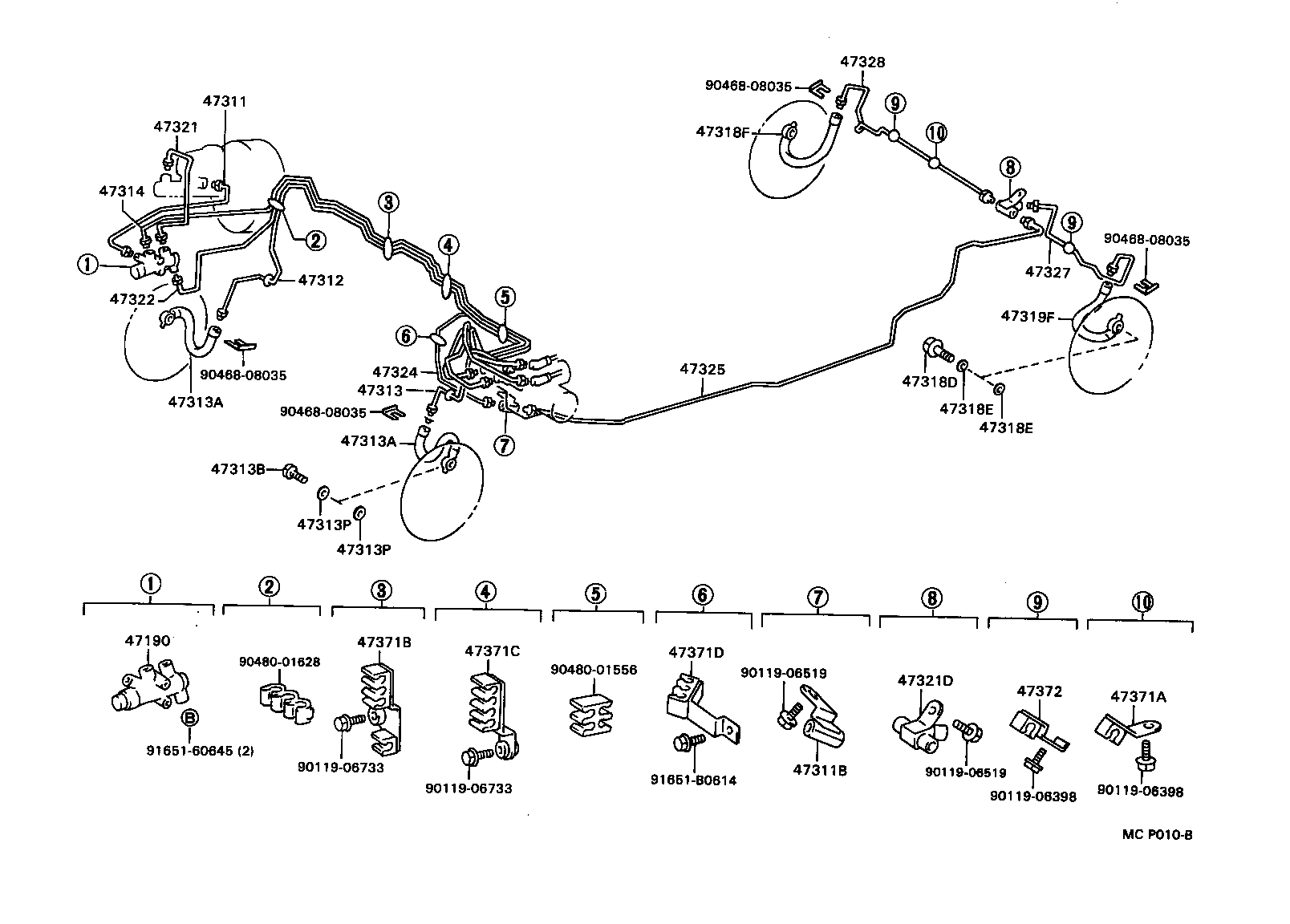

ILLUST NO. 1 OF 2(9210- )LX90
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-22100 |
LX90..ATM ｱﾘ(ABS OR ABS & *TRC) |
1 | ||
| 47190-30190 |
LX90 |
1 | ||
| 47190-22100 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-22590 |
LX90..ATM ｱﾘ(ABS OR *TRC) |
1 | ||
| 47311-22500 |
LX90 |
1 | ||
| 47311-22590 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-22300 |
GX90;LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47312-22330 |
GX90,JZX90,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 47312-22300 |
JZX90,LX90..ATM..(GD,GL,GRO,TOUS) ｱﾘ(ABS OR *TRC) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-22480 |
GX90;LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47313-22480 |
JZX90,LX90..ATM..(GD,GL,GRO,TOUS) ｱﾘ(ABS OR *TRC) |
1 | ||
| 47313-22520 |
LX90 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02735 |
GX90,JZX90,91,LX90,SX90 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02735 |
GX90,JZX90,91,LX90,SX90 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-22210 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47314-22220 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 47314-22210 |
LX90..ATM ｱﾘ(ABS OR *TRC) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-30010 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02733 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02733 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-22260 |
LX90 |
1 | ||
| 47321-22360 |
LX90..ATM ｱﾘ(ABS OR *TRC) |
1 | ||
| 47321-22360 |
LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10281 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-22330 |
LX90 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-22360 |
JZX90,LX90..ATM..(GD,GL,GRO,TOUS) ｱﾘ(ABS OR *TRC) |
1 | ||
| 47324-22280 |
LX90 |
1 | ||
| 47324-22360 |
GX90;LX90..MTM ｱﾘ(ABS) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-22070 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-22140 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-22140 |
GX90,JZX9#,LX90 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-22420 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-22460 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-22470 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-22500 |
GX90,JZX90,93,LX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-22530 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
2 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-06519 | ||||
| 90119-06733 | ||||
| 90468-08035 | ||||
| 90480-01556 | ||||
| 90480-01628 | ||||
| 91651-60645 | ||||
| 91651-B0614 | ||||

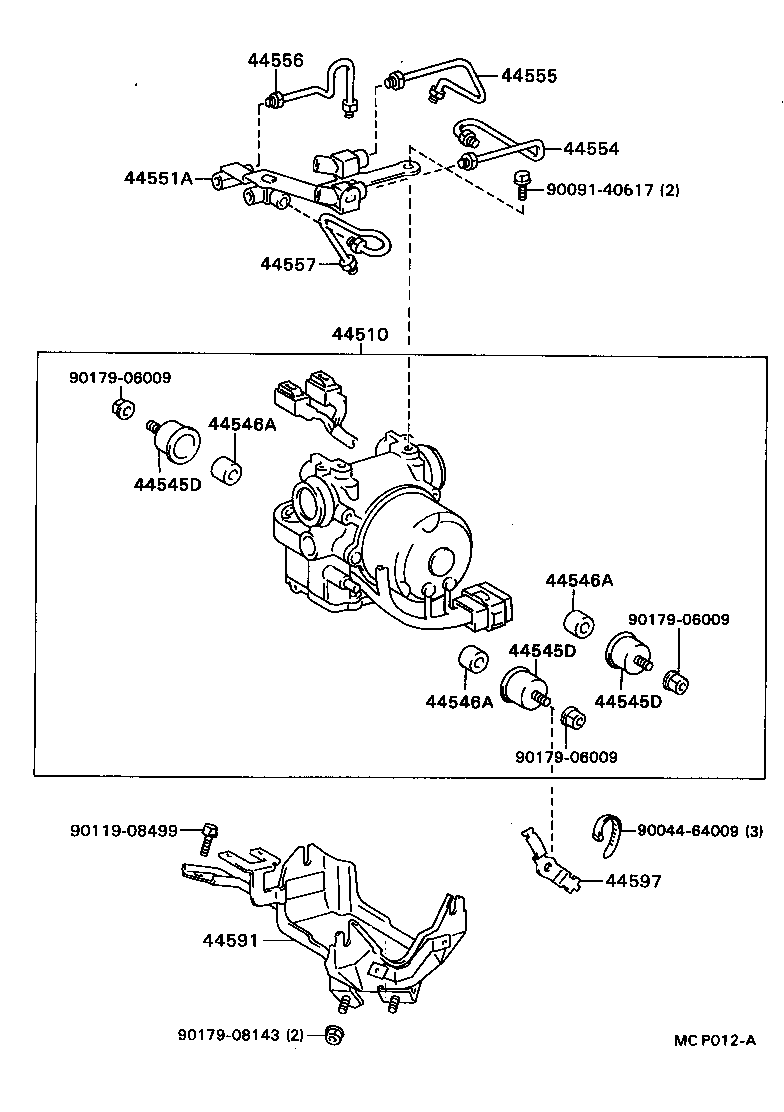

ILLUST NO. 2 OF 2(9210- )
ｱﾘ(ｱﾝﾁﾛﾂｸ ﾌﾞﾚ-ｷﾝｸﾞ ｼｽﾃﾑ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-22090 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10216 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44556 - TUBE, BRAKE ACTUATOR, NO.6 | ||||
| 44556-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44557 - TUBE, BRAKE ACTUATOR, NO.7 | ||||
| 44557-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-22110 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 44591-30140 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90091-40617 | ||||
| 90119-08499 | ||||
| 90179-06009 | ||||
| 90179-08143 | ||||

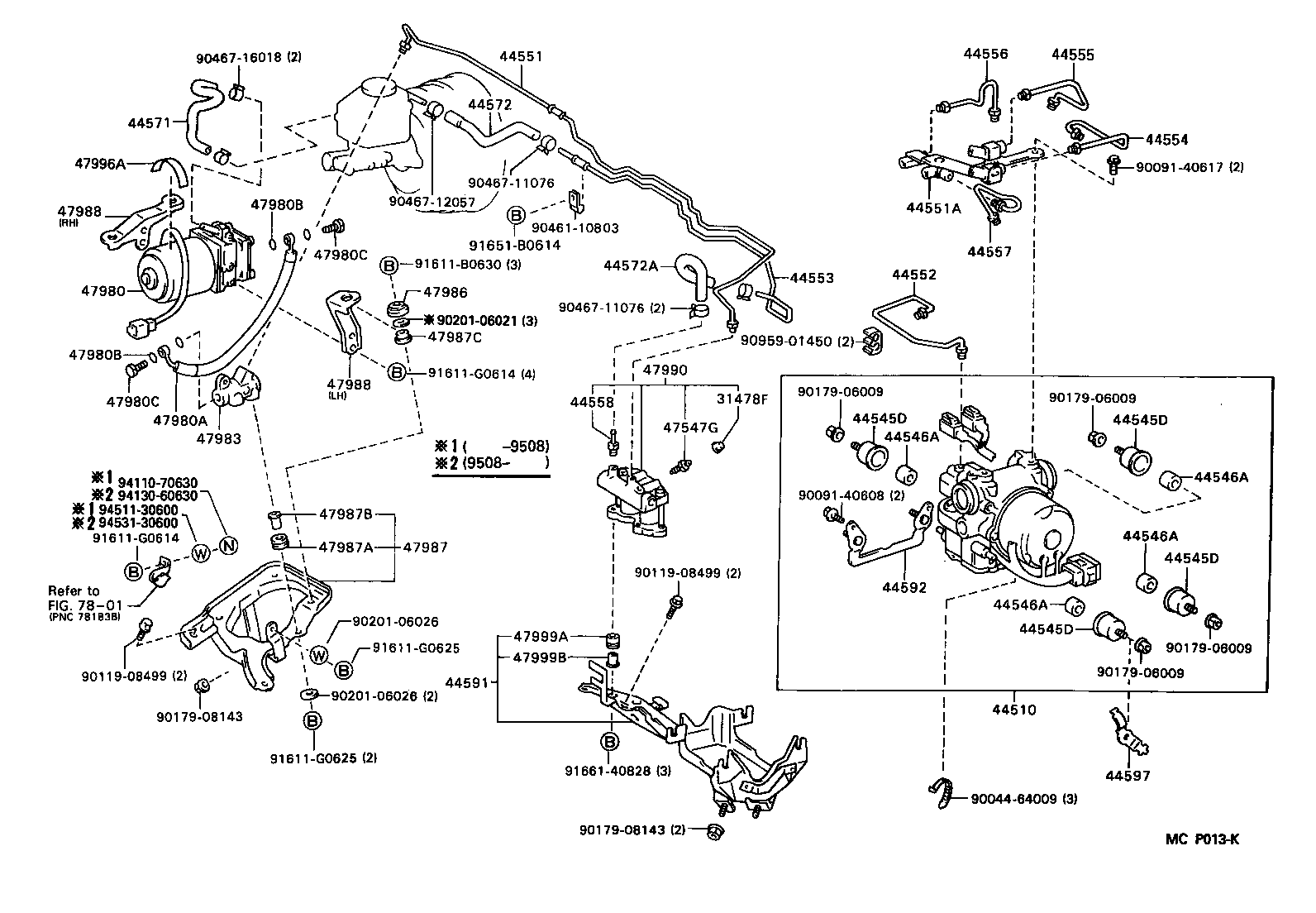

ILLUST NO. 2 OF 2(9210- )
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-22090 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
3 | ||
| 44551A - WAY, NO.1(FOR BRAKE ACTUATOR) | ||||
| 90412-10216 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44554 - TUBE, BRAKE ACTUATOR, NO.4 | ||||
| 44554-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44555 - TUBE, BRAKE ACTUATOR, NO.5 | ||||
| 44555-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44556 - TUBE, BRAKE ACTUATOR, NO.6 | ||||
| 44556-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44557 - TUBE, BRAKE ACTUATOR, NO.7 | ||||
| 44557-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-22110 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 44591-30140 |
GX90,JZX90,93,LX90,SX90..GD,GDG,GL,GRO,TOUS |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-22010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90044-64009 | ||||
| 90091-40608 | ||||
| 90091-40617 | ||||
| 90119-08499 | ||||
| 90179-06009 | ||||
| 90179-08143 | ||||
| 90201-06021 | ||||
| 90201-06026 | ||||
| 90461-10803 | ||||
| 90467-11076 | ||||
| 90467-12057 | ||||
| 90467-16018 | ||||
| 90959-01450 | ||||
| 91611-B0630 | ||||
| 91611-G0614 | ||||
| 91611-G0625 | ||||
| 91651-B0614 | ||||
| 91661-40828 | ||||
| 94110-70630 | ||||
| 94130-60630 | ||||
| 94511-30600 | ||||
| 94531-30600 | ||||
| Linked diagrams | ||||
| 7801 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
