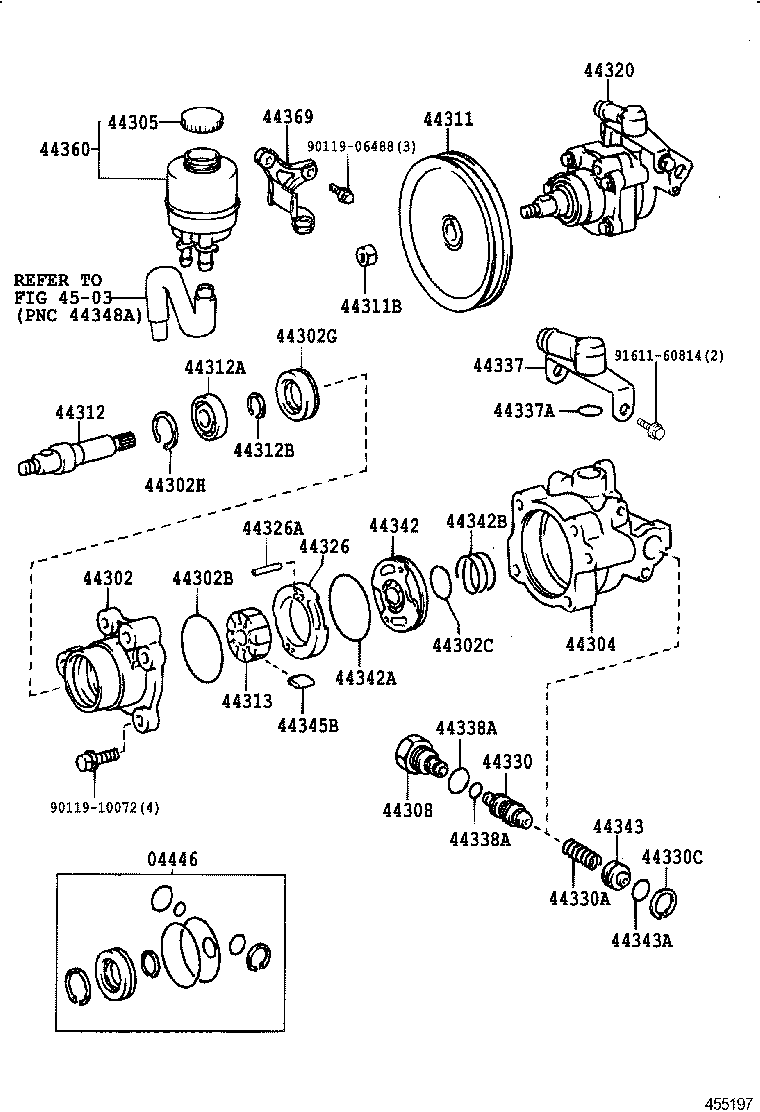

Toyota Mark 2 LX90 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-27020	LX90,SX90	10/1992 - 09/1996	1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-30110	LX90,SX90	10/1992 - 09/1996	1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001	LX90,SX90	10/1992 - 09/1996	1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016	LX90,SX90	10/1992 - 09/1996	1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004	LX90,SX90	10/1992 - 09/1996	1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-51003	LX90,SX90	10/1992 - 09/1996	1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-30051	LX90	10/1992 - 09/1996	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-32030	JZX90,LX90..GL,GRO,TOUV	10/1992 - 09/1993	1
44305-28020	JZX90,LX90..GL,GRO,TOUV	09/1993 - 09/1996	1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-14041	LX90,SX90	10/1992 - 09/1996	1
44311 - PULLEY, VANE PUMP
44311-30150	LX90	10/1992 - 09/1996	1
44311B - NUT(FOR VANE PUMP PULLEY)
90179-12022	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
44312 - SHAFT, VANE PUMP
44312-28010	LX90,SX90	10/1992 - 09/1996	1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17011	LX90,SX90	10/1992 - 09/1996	1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005	LX90,SX90	10/1992 - 09/1996	1
44313 - ROTOR, VANE PUMP
44313-22060	GX90,LX90,SX90 ﾏｰｸ 2	10/1992 - 09/1996	1
44313-22040	GX90,LX90,SX90 ﾏｰｸ無し	10/1992 - 09/1996	1
44313-22080	GX90,LX90,SX90 ﾏｰｸ 4	10/1992 - 09/1996	1
44313-22050	GX90,LX90,SX90 ﾏｰｸ 1	10/1992 - 09/1996	1
44313-22070	GX90,LX90,SX90 ﾏｰｸ 3	10/1992 - 09/1996	1
44320 - PUMP ASSY, VANE
44320-22470	LX90	10/1992 - 09/1996	1
44326 - RING, CAM(FOR VANE PUMP)
44325-12020	LX90,SX90 ﾏｰｸ 1	10/1992 - 09/1996	1
44325-12040	LX90,SX90 ﾏｰｸ 3	10/1992 - 09/1996	1
44325-12050	LX90,SX90 ﾏｰｸ 4	10/1992 - 09/1996	1
44325-12010	LX90,SX90 ﾏｰｸ無し	10/1992 - 09/1996	1
44325-12030	LX90,SX90 ﾏｰｸ 2	10/1992 - 09/1996	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008	LX90,SX90 長さ=25,外径=5.0	10/1992 - 09/1996	2
44330 - VALVE ASSY, FLOW CONTROL
44330-12131	LX90 ﾏｰｸ A	10/1992 - 09/1996	1
44330-12151	LX90 ﾏｰｸ C	10/1992 - 09/1996	1
44330-12141	LX90 ﾏｰｸ B	10/1992 - 09/1996	1
44330-12181	LX90 ﾏｰｸ F	10/1992 - 09/1996	1
44330-12161	LX90 ﾏｰｸ D	10/1992 - 09/1996	1
44330-12171	LX90 ﾏｰｸ E	10/1992 - 09/1996	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103	GX90,LX90,SX90	10/1992 - 09/1996	1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700	LX90,SX90	10/1992 - 09/1996	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-30010	LX90	10/1992 - 09/1996	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
96711-19013	LX90,SX90	10/1992 - 09/1996	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001	LX90,SX90 外径=25.5,内径=22.5	10/1992 - 09/1996	1
96711-19014	LX90,SX90 外径=17.0,内径=13.0	10/1992 - 09/1996	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001	LX90,SX90 外径=25.5,内径=22.5	10/1992 - 09/1996	1
96711-19014	LX90,SX90 外径=17.0,内径=13.0	10/1992 - 09/1996	1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010	LX90,SX90	10/1992 - 09/1996	1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002	LX90,SX90	10/1992 - 09/1996	1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014	LX90,SX90	10/1992 - 09/1996	1
44343 - SEAT, FLOW CONTROL SPRING
44343-12040	LX90,SX90	10/1992 - 09/1996	1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014	LX90,SX90	10/1992 - 09/1996	1
44345B - PLATE, VANE PUMP
44345-12010	GX90,LX90,SX90 長さ=14.997	10/1992 - 09/1996	10
44345-12030	GX90,LX90,SX90 長さ=14.993	10/1992 - 09/1996	10
44345-12040	GX90,LX90,SX90 長さ=14.991	10/1992 - 09/1996	10
44345-12050	GX90,LX90,SX90 長さ=14.989	10/1992 - 09/1996	10
44345-12020	GX90,LX90,SX90 長さ=14.995	10/1992 - 09/1996	10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-22170	JZX90,LX90..GL,GRO,TOUV	10/1992 - 09/1996	1
44369 - BRACKET, OIL RESERVOIR, NO.1
44390-22030	JZX90,LX90..GL,GRO,TOUV	10/1992 - 09/1996	1
Common parts
90119-06488
90119-10072
91611-60814
Linked diagrams
4503

LX90-ATMET (1992)

(9210- )LX90
