LX80-ATPEX (1989)
Toyota Mark 2
Production
Aug 1989
-
Oct 1992
Engine
2LT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

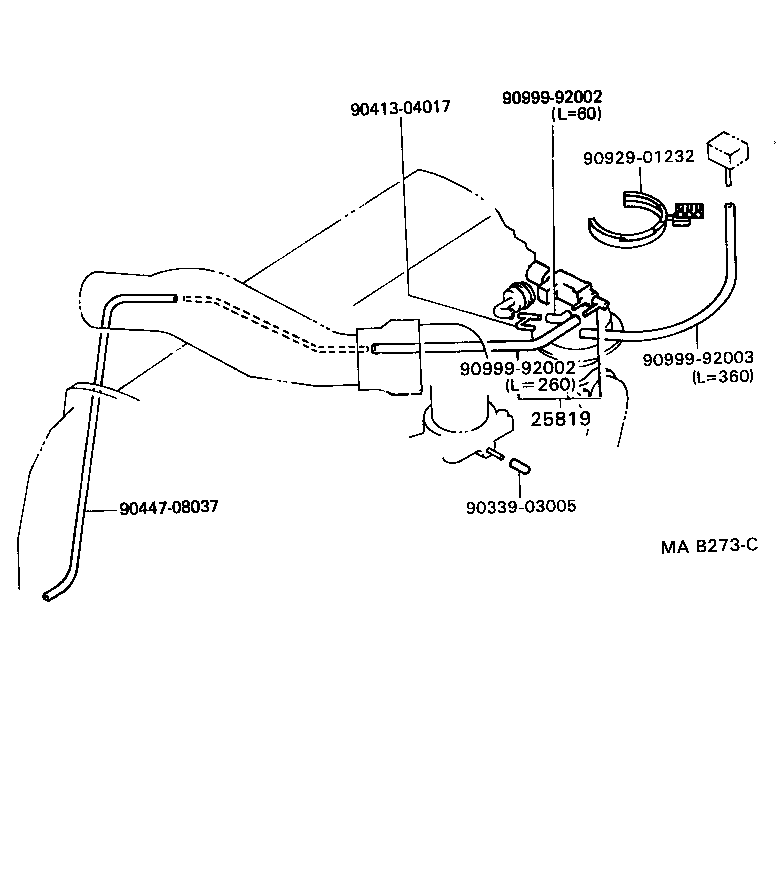

(8808-9308)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 25819 - VALVE ASSY, VACUUM REGULATING | ||||
| 25819-54050 |
2L..LX80 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04017 | ||||
| 90447-08037 | ||||
| 90929-01232 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
(8808-9302)2LT..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89470-22010 |
2LT..LX80..4FC |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12089 |
2LT..LX80..4FC NO.2 |
1 | ||
| 90910-12088 |
2LT..LX80..4FC NO.1 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12089 |
2LT..LX80..4FC NO.2 |
1 | ||
| 90910-12088 |
2LT..LX80..4FC NO.1 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
2LT..LX80 |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03108 |
2LT..LX80 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-54010 |
2LT..LX80 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12070 |
2LT..LX80 |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90413-04017 | ||||
| 90414-04006 | ||||
| 90445-11103 | ||||
| 90447-08036 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00184 | ||||
| 90467-07016 | ||||
| 90929-01228 | ||||
| 90929-01232 | ||||
| 90929-01237 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-F0812 | ||||
| 91651-F0612 | ||||
| 93319-15008 | ||||
| 96132-30600 | ||||
