LX80-ATMEX (1989)

Toyota Mark 2

Production Aug 1989 - Oct 1992
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9302)2LT

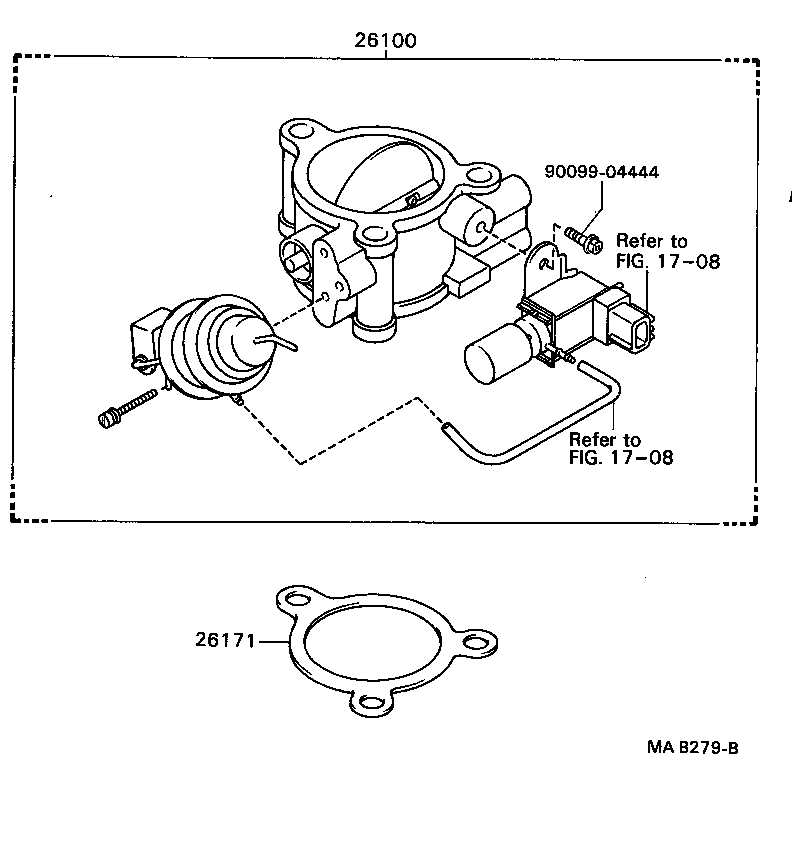

Click highlighted areas on diagram

diagram 1708 1708 26100 26171 9009904444
Part # Description Qty Price
26100 - VENTURI ASSY
26100-54140

2LT..LX80

 1
26171 - GASKET, VENTURI
17116-54020

2LT..LX80

 1
Common parts
90099-04444
Linked diagrams
1708
