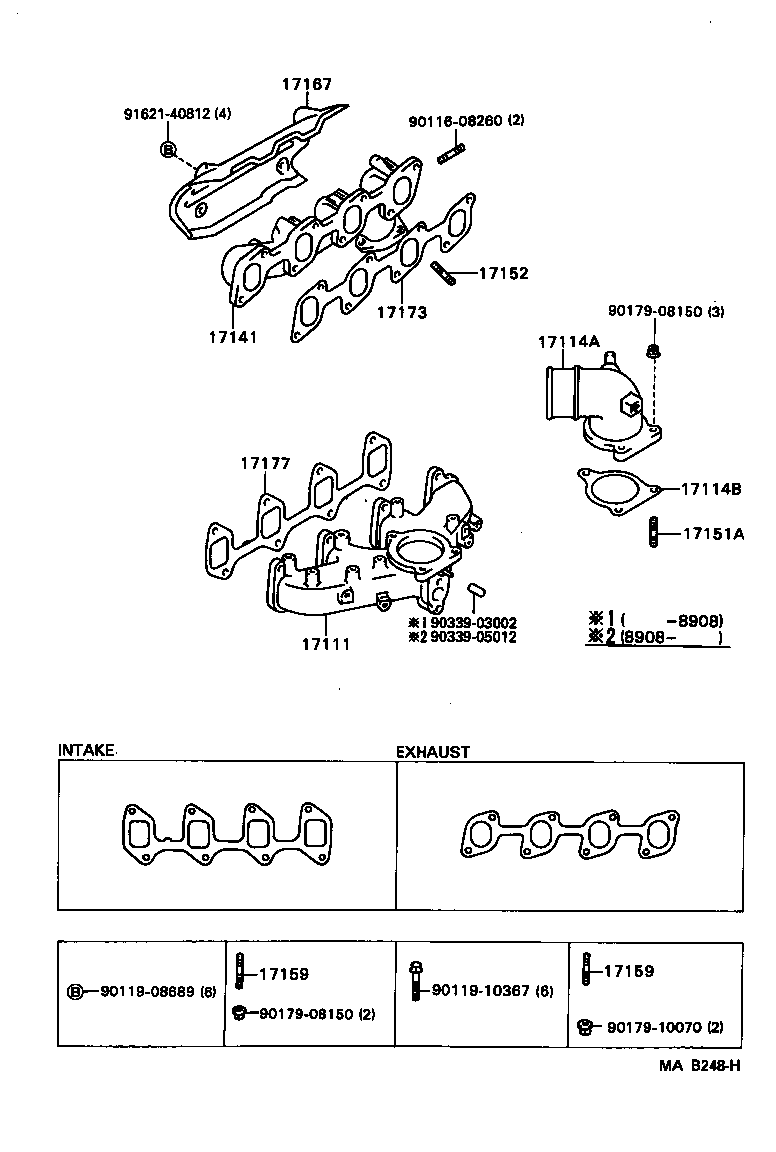

LX80-ATMEX (1989)
Toyota Mark 2
(8808-9308)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54091 |
2L#..LX80 |
1 | ||
| 17101-54090 |
2L#..LX80 |
1 | ||
| 17114A - FLANGE, INTAKE | ||||
| 17114-54050 |
2L..LX80 |
1 | ||
| 17114-54060 |
2LT..LX80 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-54020 |
2L#..LX80 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54100 |
2LT..LX80 |
1 | ||
| 17141-54080 |
2L..LX80 |
1 | ||
| 17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI) | ||||
| 90116-08293 |
2L..LX80 |
3 | ||
| 90116-08292 |
2LT..LX80 |
3 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
2L#..LX80 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L#..LX80 INTAKE SIDE |
2 | ||
| 90116-10140 |
2LT..LX80 EXHAUST SIDE |
4 | ||
| 90116-10141 |
2L..LX80 EXHAUST SIDE |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L#..LX80 INTAKE SIDE |
2 | ||
| 90116-10140 |
2LT..LX80 EXHAUST SIDE |
4 | ||
| 90116-10141 |
2L..LX80 EXHAUST SIDE |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-54070 |
2L..LX80 |
1 | ||
| 17167-54080 |
2LT..LX80 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54030 |
2L..LX80 |
1 | ||
| 17173-54040 |
2LT..LX80 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54020 |
2L#..LX80 |
1 | ||
| Common parts | ||||
| 90116-08260 | ||||
| 90119-08689 | ||||
| 90119-10367 | ||||
| 90179-08150 | ||||
| 90179-10070 | ||||
| 90339-03002 | ||||
| 90339-05012 | ||||
| 91621-40812 | ||||

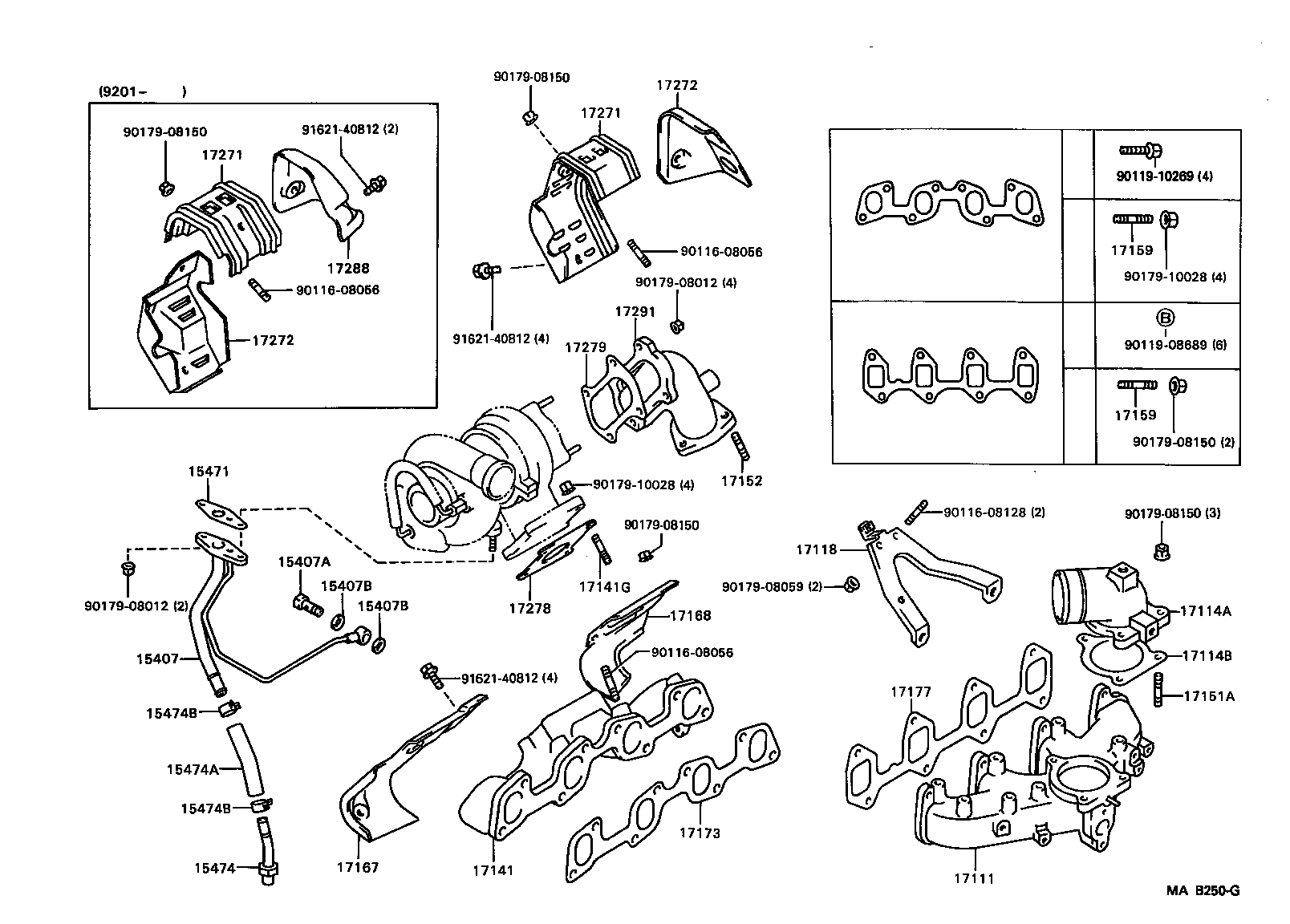

ILLUST NO. 1 OF 2(8808-9302)2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-54040 |
2LT..LX80 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10006 |
2LT..LX80 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2LT..LX80 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-10035 |
2LT..LX80 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-54010 |
2LT..LX80 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15476-54020 |
2LT..LX80 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-54020 |
2LT..LX80 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26002 |
2LT..LX80 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26002 |
2LT..LX80 |
2 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-54091 |
2L#..LX80 |
1 | ||
| 17101-54090 |
2L#..LX80 |
1 | ||
| 17114A - FLANGE, INTAKE | ||||
| 17114-54050 |
2L..LX80 |
1 | ||
| 17114-54060 |
2LT..LX80 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 17116-54020 |
2L#..LX80 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-54040 |
2LT..LX80 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-54100 |
2LT..LX80 |
1 | ||
| 17141-54080 |
2L..LX80 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10094 |
2LT..LX80 |
4 | ||
| 17151A - BOLT, STUD(FOR MANIFOLD TO VENTURI) | ||||
| 90116-08293 |
2L..LX80 |
3 | ||
| 90116-08292 |
2LT..LX80 |
3 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10088 |
2L#..LX80 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L#..LX80 INTAKE SIDE |
2 | ||
| 90116-10140 |
2LT..LX80 EXHAUST SIDE |
4 | ||
| 90116-10141 |
2L..LX80 EXHAUST SIDE |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08220 |
2L#..LX80 INTAKE SIDE |
2 | ||
| 90116-10140 |
2LT..LX80 EXHAUST SIDE |
4 | ||
| 90116-10141 |
2L..LX80 EXHAUST SIDE |
2 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-54070 |
2L..LX80 |
1 | ||
| 17167-54080 |
2LT..LX80 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-54030 |
2LT..LX80 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-54030 |
2L..LX80 |
1 | ||
| 17173-54040 |
2LT..LX80 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-54020 |
2L#..LX80 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-54050 |
2LT..LX80 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-54050 |
2LT..LX80 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-54031 |
2LT..LX80 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17272-54031 |
2LT..LX80 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-54020 |
2LT..LX80 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-64010 |
2LT..LX80 |
1 | ||
| 17288 - INSULATOR, TURBO, NO.3 | ||||
| 17288-54010 |
2LT..LX80 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-54050 |
2LT..LX80 |
1 | ||
| Common parts | ||||
| 90116-08056 | ||||
| 90116-08128 | ||||
| 90119-08689 | ||||
| 90119-10269 | ||||
| 90179-08012 | ||||
| 90179-08059 | ||||
| 90179-08150 | ||||
| 90179-10028 | ||||
| 91621-40812 | ||||

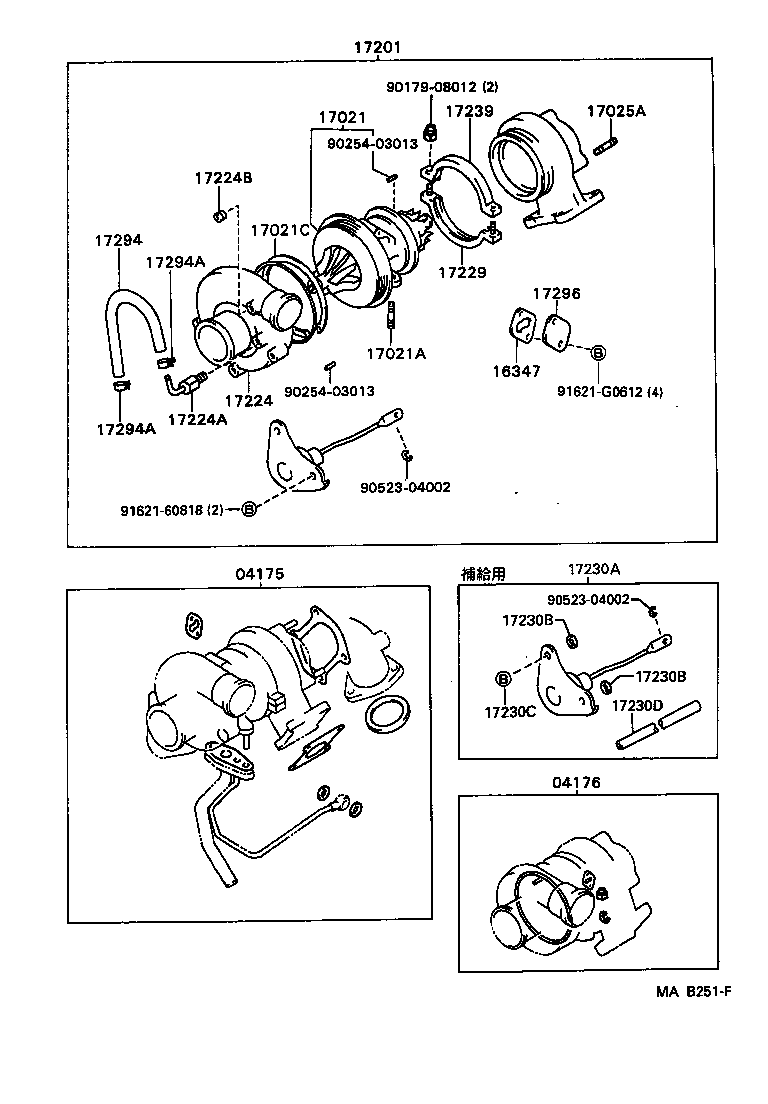

ILLUST NO. 2 OF 2(8808-9302)2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-54020 |
2LT..LX80 |
1 | ||
| 04176 - SEAL KIT, TURBOCHARGER | ||||
| 04176-54020 |
2LT..LX80 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-28010 |
2LT..LX80 |
2 | ||
| 17021 - HOUSING SUB-ASSY, BEARING | ||||
| 17021-54040 |
2LT..LX80 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
2LT..LX80 |
2 | ||
| 17021C - RING, HOLE SNAP(FOR BEARING HOUSING) | ||||
| 90521-99007 |
2LT..LX80 |
1 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-08200 |
2LT..LX80 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-54050 |
2LT..LX80 |
1 | ||
| 17224 - HOUSING, COMPRESSOR | ||||
| 17224-54020 |
2LT..LX80 |
1 | ||
| 17224A - UNION(FOR COMPRESSOR HOUSING) | ||||
| 90404-51053 |
2LT..LX80 |
1 | ||
| 17224B - PLUG, TAPER SCREW | ||||
| 90344-51014 |
2LT..LX80 |
1 | ||
| 17229 - BAND, V | ||||
| 17229-28010 |
2LT..LX80 |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-59045 |
2LT..LX80 |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08082 |
2LT..LX80 厚さ=1.0 |
2 | ||
| 90201-08081 |
2LT..LX80 厚さ=0.5 |
2 | ||
| 90201-08086 |
2LT..LX80 厚さ=2.0 |
2 | ||
| 90201-08087 |
2LT..LX80 厚さ=3.0 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08082 |
2LT..LX80 厚さ=1.0 |
2 | ||
| 90201-08081 |
2LT..LX80 厚さ=0.5 |
2 | ||
| 90201-08086 |
2LT..LX80 厚さ=2.0 |
2 | ||
| 90201-08087 |
2LT..LX80 厚さ=3.0 |
2 | ||
| 17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET) | ||||
| 91621-60822 |
2LT..LX80 |
2 | ||
| 17230D - HOSE(FOR REPAIR ACTUATOR SET) | ||||
| 90445-12111 |
2LT..LX80 |
1 | ||
| 17239 - CLAMP, V, NO.2 | ||||
| 17239-28010 |
2LT..LX80 |
1 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-12219 |
2LT..LX80 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2LT..LX80 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-30600 |
2LT..LX80 |
2 | ||
| 17296 - PLATE, BEARING HOUSING, SIDE | ||||
| 17296-28010 |
2LT..LX80 |
2 | ||
| Common parts | ||||
| 90179-08012 | ||||
| 90254-03013 | ||||
| 90523-04002 | ||||
| 91621-60818 | ||||
| 91621-G0612 | ||||
