LX80-AEPNX (1988)

Toyota Mark 2

Production Aug 1988 - Feb 1993
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )CI,DSL,HTWC,LPG,TD

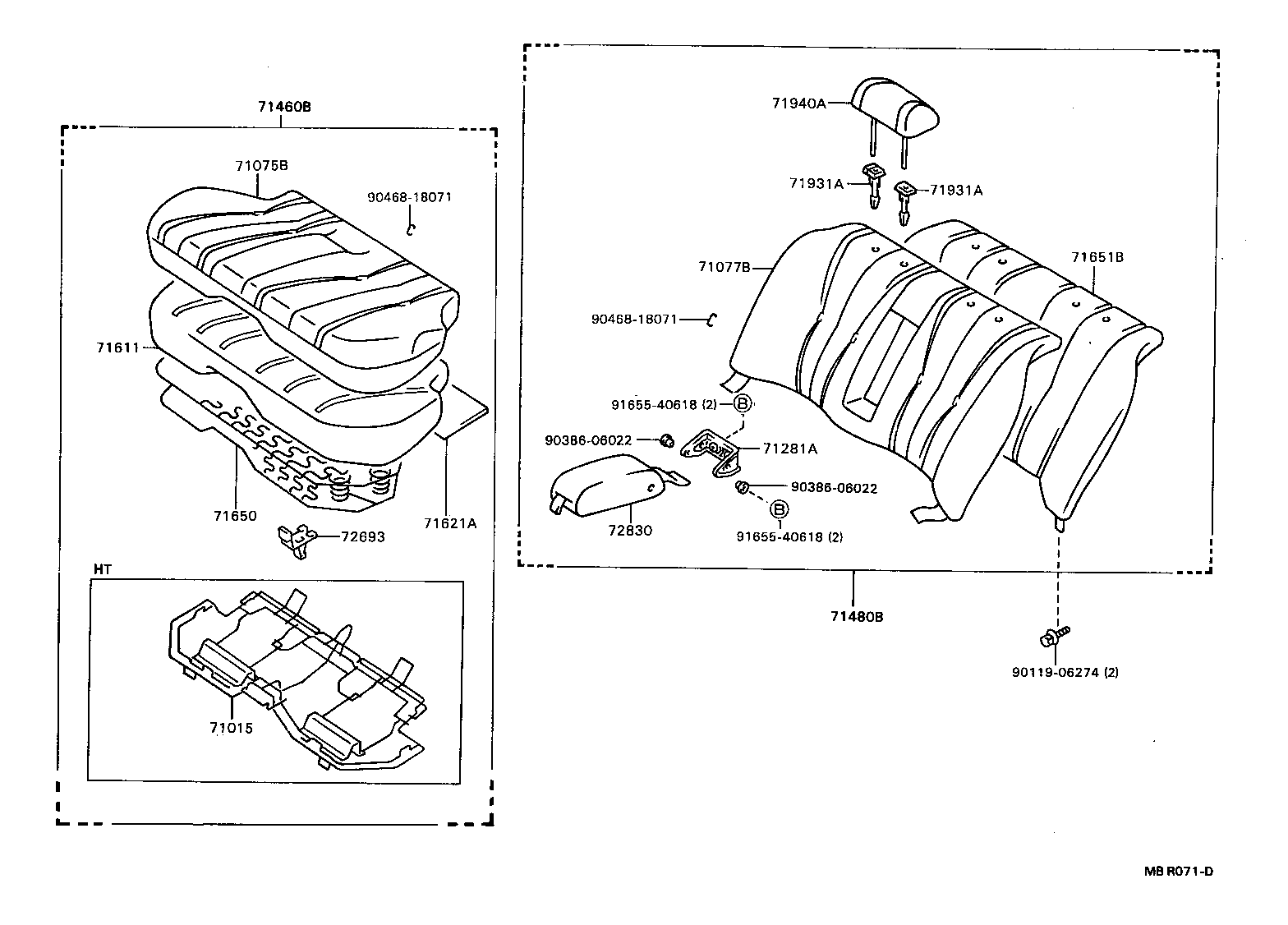

Click highlighted areas on diagram

diagram 71015 71075B 71077B 71281A 71460B 71480B 71611 71621A 71650 71651B 71931A 71931A 71940A 72693 72830 9011906274 9038606022 9038606022 9046818071 9046818071 9165540618 9165540618
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71065-2210004

LX80,SX80..GL

DARK BLUE,TRIM8#

 1
71065-2210006

LX80,SX80..GL

SABLE,TRIM4#

 1
71065-2210003

LX80,SX80..GL

MEDIUM GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-2A32004

LX80,SX80..GL

DARK BLUE,TRIM8#

 1
71077-2A32006

LX80,SX80..GL

SABLE,TRIM4#

 1
71077-2A32003

LX80,SX80..GL

MEDIUM GRAY,TRIM1#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71560-2220004

LX80,SX80..GL

***,DARK BLUE,TRIM8#

 1
71560-2220006

LX80,SX80..GL

***,SABLE,TRIM4#

 1
71560-2252006

LX80,SX80..GL

***,SABLE,TRIM4#

 1
71560-2252003

LX80,SX80..GL

***,MEDIUM GRAY,TRIM1#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-2A38004

LX80,SX80..GL

***,DARK BLUE,TRIM8#

 1
71480-2A38006

LX80,SX80..GL

***,SABLE,TRIM4#

 1
71480-2A38003

LX80,SX80..GL

***,MEDIUM GRAY,TRIM1#

 1
71611 - PAD, REAR SEAT CUSHION
71611-22300

GX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)

 1
71621A - PAD, REAR SEAT CUSHION SILENCER, A
71621-22060

GX81,JZX81,LX80,MX83,SX80,YX80..SED

150 X 300,T=6

 1
71621-22070

GX81,JZX81,LX80,MX83,SX80,YX80..SED

20 X 70,T=10

 2
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-22160

GX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD)

 1
71650-22170

GX81,LX80,SX80..SED..(GD,GL,GR,LG,STD)..(DSL,HTWC,TD)

 1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71507-22200

YX80..KYO;LX80,SX80..GL,KYO,STD

 1
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-32010

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 2
Common parts
90119-06274
90386-06022
90468-18071
91655-40618
