LX80-AEMNX (1988)

Toyota Mark 2

Production Aug 1988 - Feb 1993
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

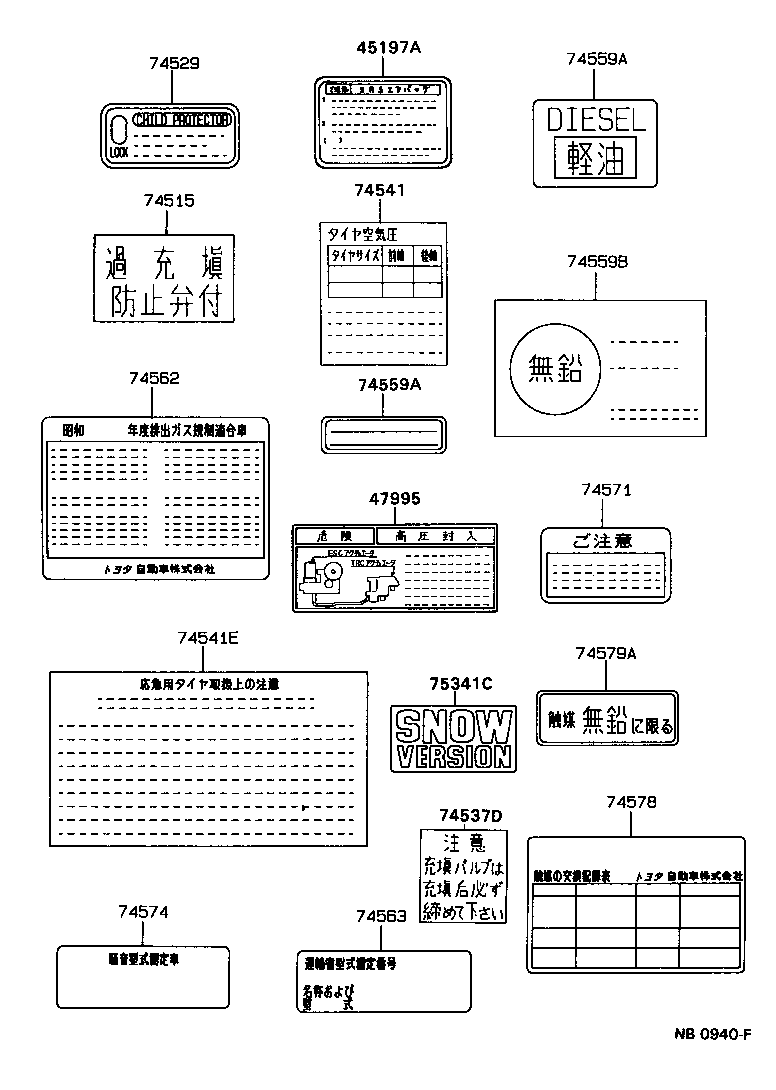

Click highlighted areas on diagram

diagram 45197A 47995 74515 74529 74537D 74541 74541E 74559A 74559A 74559B 74562 74563 74571 74574 74578 74579A 75341C
Part # Description Qty Price
74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION
69339-12010

YX80..KYO;GX81,JZX81,LX80,MX83,SX80

 2
74541 - PLATE, TIRE PRESSURE CAUTION
42661-22570

LX80..GL,GR

 1
42661-22571

LX80..GL,GR

 1
74541E - PLATE, COMPACT SPARE TIRE CAUTION
42668-40010

GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD

 1
74559A - PLATE, FUEL CAUTION
74559-14030

LX80..SED

 1
74559A - PLATE, FUEL CAUTION
74559-14030

LX80..SED

 1
74562 - PLATE, EMISSION CONTROL SYSTEM INFORMATION
74562-22410

LX80..5F

 1
74563 - PLATE, EMISSION CONTROL DEVICE IDENTIFICATION
74563-26150

LX80..TD

 1
74571 - PLATE, BRAKE FLUID CAUTION
47288-32010

GX81,JZX81,LX80,MX83,SX80,YX80

 1
