LX80-AEMNX (1988)

Toyota Mark 2

Production Aug 1988 - Feb 1993
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GX81,LX80..5F..DSL,HTWC,TD,TWC

Click highlighted areas on diagram

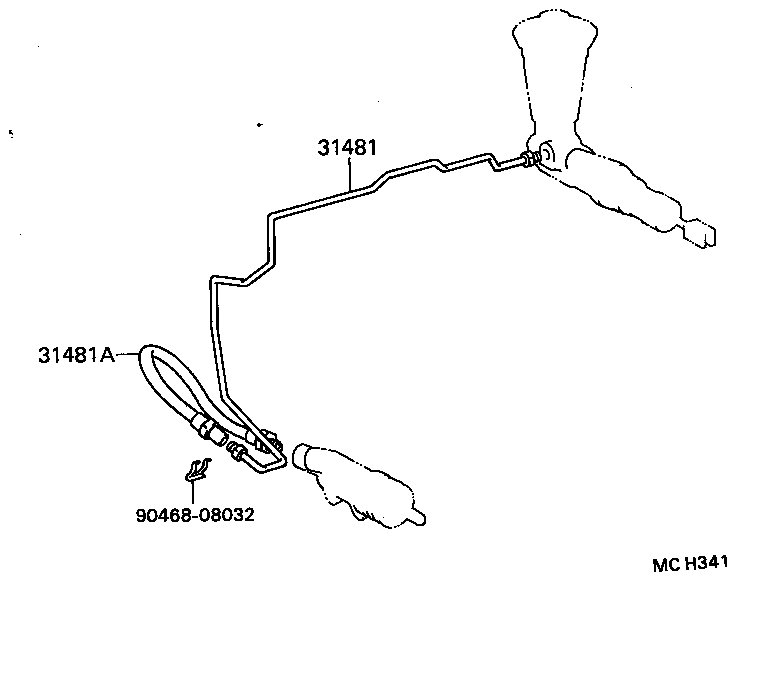

diagram 31481 31481A 9046808032
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-22360

GX81,LX80..5F..(DSL,HTWC,TD,TWC)

 1
31481A - HOSE, CLUTCH, NO.1
90931-01057

LX80..5F

 1
Common parts
90468-08032

(8808- )5F..TD,TWT

Click highlighted areas on diagram

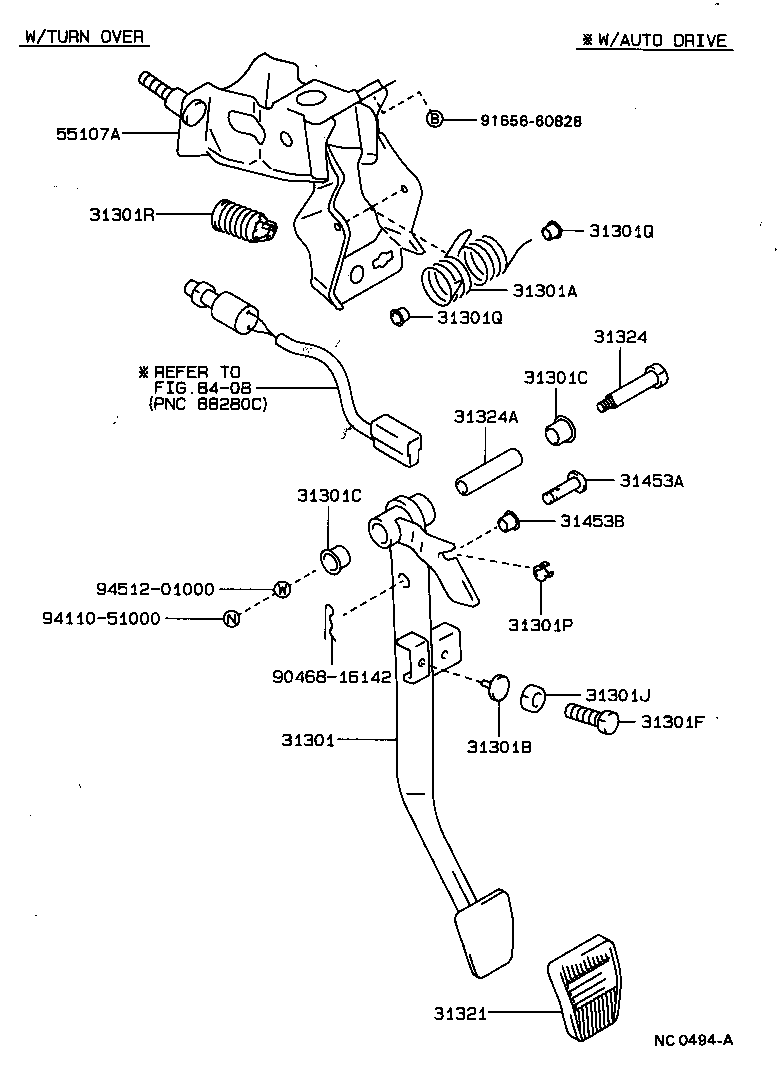

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301J 31301P 31301Q 31301Q 31301R 31321 31324 31324A 31453A 31453B 55107A 8408 9046816142 9165660828 9411051000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31310-22070

GX81,LX80..5F..(TD,TWT)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90508-45001

GX81,LX80..5F..(TD,TWT)

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06008

GX81,LX80,SX80,YX80..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GX81,LX80..5F..(TD,TWT)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

GX81,LX80..5F..(TD,TWT)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

GX81,LX80,SX80,YX80..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
94120-41000

GX81,LX80,SX80,YX80..5F

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-05010

GX81,LX80..5F..(TD,TWT)

 1
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-05007

GX81,LX80..5F..(TD,TWT)

 2
31301Q - BUSH(FOR CLUTCH PEDAL SPRING)
90386-05007

GX81,LX80..5F..(TD,TWT)

 2
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90501-20097

GX81,LX80..5F..(TD,TWT)

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

GX81,LX80,SX80,YX80..5F

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10039

GX81,LX80,SX80,YX80..5F

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

GX81,LX80,SX80,YX80..5F

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

GX81,LX80..5F..(TD,TWT)

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

GX81,LX80,SX80,YX80..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-22180

LX80..5F..TD

 1
Common parts
90468-16142
91656-60828
94110-51000
94512-01000
Linked diagrams
8408
