Toyota Mark 2 LX80 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
JP
MARK 2
LX80-AEMNS (1988)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

LX80-AEMNS (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1993

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8808- )GL,KYO

Click highlighted areas on diagram

(GL=TAXI SPEC)

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22180	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88501-22210	LX80,SX80..GL,STD ｶﾝﾚｲﾁｼﾖｳ	03/1989 - 08/1990	1
88501-22180	LX80..GL..DSL	08/1988 - 03/1989	1
88501-22200	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88501-22180	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88501-22200	LX80	05/1993 - 08/1993	1
88501-22200	LX80;SX80,YX80..KYO	02/1993 - 05/1993	1
88501-22210	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 02/1993	1
88510 - UNIT ASSY, COOLER
88510-22520	LX80..GL..DSL;GX81,LX80,SX80..GR,LG ﾏﾆﾕｱﾙ	08/1988 - 03/1989	1
88510-22520	GX81,LX80,SX80..GL,GR,LG,STD ﾏﾆﾕｱﾙ	03/1989 - 08/1990	1
88510-22570	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88510-22630	GX81,LX80,SX80..GL,GR,LG,STD ｶﾝﾚｲﾁｼﾖｳ,ﾏﾆﾕｱﾙ	03/1989 - 08/1990	1
88510-22570	LX80	05/1993 - 08/1993	1
88510-22570	LX80;SX80..KYO	02/1993 - 05/1993	1
88510-22720	LX80,SX80..GL	08/1990 - 02/1993	1
88510-22730	LX80,SX80..GL ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 02/1993	1
88515 - VALVE, COOLER EXPANSION
88515-22080	LX80..GL..DSL	08/1988 - 12/1988	1
88515-22070	LX80;SX80..KYO	02/1993 - 05/1993	1
88515-22070	LX80	05/1993 - 08/1993	1
88515-22070	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88515-22082	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	04/1992 - 02/1993	1
88515-22081	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88515-22081	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 04/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22130	LX80..GL..DSL	08/1988 - 03/1989	1
88539-22130	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88539-22160	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88539-22130	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88539-22160	LX80	02/1993 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22650	LX80..GL..DSL	08/1988 - 08/1990	1
88605-22650	LX80..GL,GR	08/1990 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22650	LX80..GL..DSL	08/1988 - 08/1990	1
88605-22650	LX80..GL,GR	08/1990 - 08/1993	1
88630A - RELAY ASSY, COOLER
90987-03001	LX80..GL..DSL	08/1988 - 08/1990	1
90987-03001	LX80..GL..DSL	08/1990 - 02/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22280	LX80..GL,GR NO.1	08/1988 - 03/1989	1
88650-22520	LX80..GL,GR	08/1990 - 06/1993	1
88650-22280	LX80..GL;LX80..4FC..GR NO.1	03/1989 - 08/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22280	LX80..GL,GR NO.1	08/1988 - 03/1989	1
88650-22520	LX80..GL,GR	08/1990 - 06/1993	1
88650-22280	LX80..GL;LX80..4FC..GR NO.1	03/1989 - 08/1990	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-2A150	LX80..GL..DSL	08/1988 - 02/1993	1
88716-2A150	LX80	05/1993 - 08/1993	1
88716-2A150	LX80;SX80,YX80..KYO	02/1993 - 05/1993	1
88899K - PLATE, COVER
88899-22150	LX80..GL..DSL	08/1988 - 03/1989	1
88899-22220	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88899-22150	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88899-22150	LX80,SX80..GL,STD	03/1989 - 08/1990	1
Common parts
82711-12200
87116-14010
88569-22260
88688-22680
90094-90405
90099-32127
90159-60213
90179-06054
90480-26022
93385-16016
93540-14010
93540-14012

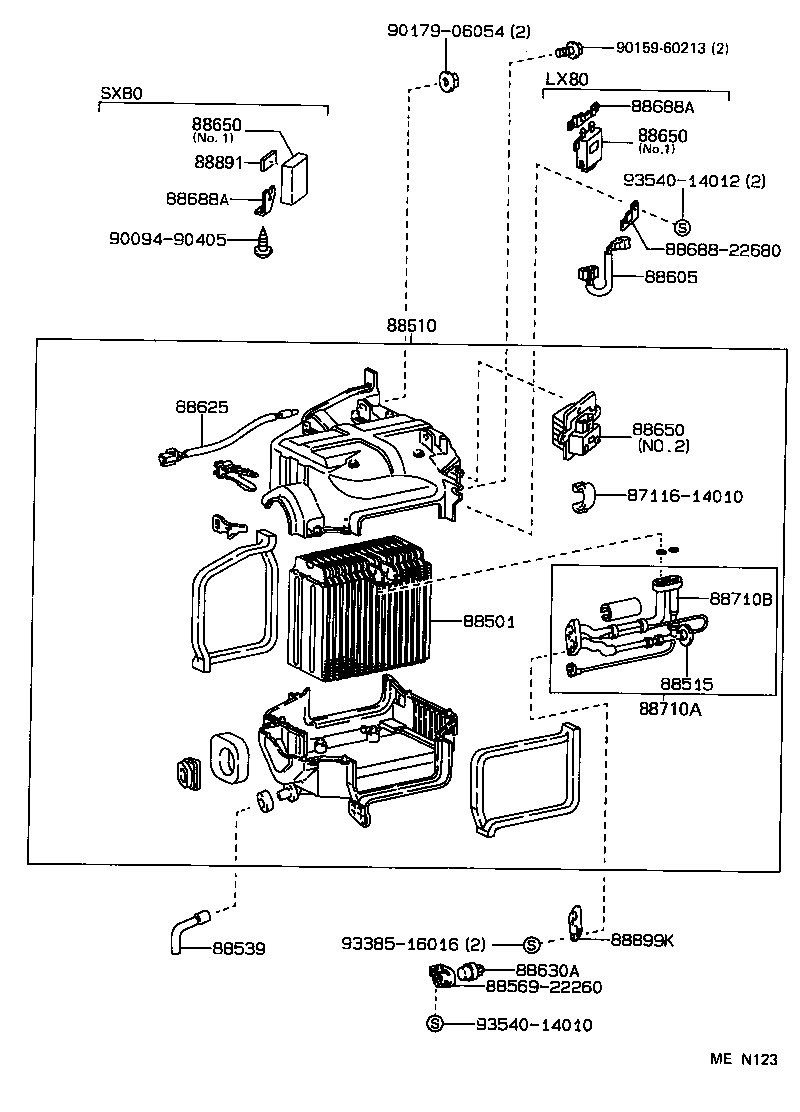

(8808-9008)GX81,LX80,SX80..GL,GR,LG,STD ; (9008-)LX80,SX80..GL,GR,STD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22180	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88501-22210	LX80,SX80..GL,STD ｶﾝﾚｲﾁｼﾖｳ	03/1989 - 08/1990	1
88501-22180	LX80..GL..DSL	08/1988 - 03/1989	1
88501-22200	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88501-22180	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88501-22200	LX80	05/1993 - 08/1993	1
88501-22200	LX80;SX80,YX80..KYO	02/1993 - 05/1993	1
88501-22210	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 02/1993	1
88510 - UNIT ASSY, COOLER
88510-22520	LX80..GL..DSL;GX81,LX80,SX80..GR,LG ﾏﾆﾕｱﾙ	08/1988 - 03/1989	1
88510-22520	GX81,LX80,SX80..GL,GR,LG,STD ﾏﾆﾕｱﾙ	03/1989 - 08/1990	1
88510-22570	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88510-22630	GX81,LX80,SX80..GL,GR,LG,STD ｶﾝﾚｲﾁｼﾖｳ,ﾏﾆﾕｱﾙ	03/1989 - 08/1990	1
88510-22570	LX80	05/1993 - 08/1993	1
88510-22570	LX80;SX80..KYO	02/1993 - 05/1993	1
88510-22720	LX80,SX80..GL	08/1990 - 02/1993	1
88510-22730	LX80,SX80..GL ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 02/1993	1
88515 - VALVE, COOLER EXPANSION
88515-22080	LX80..GL..DSL	08/1988 - 12/1988	1
88515-22070	LX80;SX80..KYO	02/1993 - 05/1993	1
88515-22070	LX80	05/1993 - 08/1993	1
88515-22070	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88515-22082	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	04/1992 - 02/1993	1
88515-22081	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88515-22081	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 04/1992	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22130	LX80..GL..DSL	08/1988 - 03/1989	1
88539-22130	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88539-22160	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88539-22130	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88539-22160	LX80	02/1993 - 08/1993	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22650	LX80..GL..DSL	08/1988 - 08/1990	1
88605-22650	LX80..GL,GR	08/1990 - 08/1993	1
88630A - RELAY ASSY, COOLER
90987-03001	LX80..GL..DSL	08/1988 - 08/1990	1
90987-03001	LX80..GL..DSL	08/1990 - 02/1993	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22280	LX80..GL,GR NO.1	08/1988 - 03/1989	1
88650-22520	LX80..GL,GR	08/1990 - 06/1993	1
88650-22280	LX80..GL;LX80..4FC..GR NO.1	03/1989 - 08/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22280	LX80..GL,GR NO.1	08/1988 - 03/1989	1
88650-22520	LX80..GL,GR	08/1990 - 06/1993	1
88650-22280	LX80..GL;LX80..4FC..GR NO.1	03/1989 - 08/1990	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22280	LX80..GL,GR NO.1	08/1988 - 03/1989	1
88650-22520	LX80..GL,GR	08/1990 - 06/1993	1
88650-22280	LX80..GL;LX80..4FC..GR NO.1	03/1989 - 08/1990	1
88710A - TUBE ASSY, AIR CONDITIONER
88710-22420	GX81,LX80,SX80..GD,GDG,GL,GR,GT,LG,STD	08/1988 - 03/1989	1
88710-22420	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88710-22500	LX80,SX80..GL,STD ｶﾝﾚｲﾁｼﾖｳ	03/1989 - 08/1990	1
88710-22500	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GT ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 02/1993	1
88710-22420	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88710B - TUBE ASSY, AIR CONDITIONER
88710-22460	LX80,SX80..GL,STD	03/1989 - 08/1990	1
88710-22460	LX80,SX80..GL	08/1990 - 02/1993	1
88710-22460	GX81,LX80,SX80..GD,GDG,GL,GR,GT,LG,STD	08/1988 - 03/1989	1
88710-22460	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88710-22510	LX80,SX80..GL,STD ｶﾝﾚｲﾁｼﾖｳ	03/1989 - 08/1990	1
88710-22510	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GT ｶﾝﾚｲﾁｼﾖｳ	08/1990 - 02/1993	1
88899K - PLATE, COVER
88899-22150	LX80..GL..DSL	08/1988 - 03/1989	1
88899-22220	LX80..GL..DSL ﾀｸｼ- ｼﾖｳ	08/1988 - 02/1993	1
88899-22150	GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG	08/1990 - 02/1993	1
88899-22150	LX80,SX80..GL,STD	03/1989 - 08/1990	1
Common parts
87116-14010
88569-22260
88688-22680
90094-90405
90159-60213
90179-06054
93385-16016
93540-14010
93540-14012

LX80-AEMNS (1988)

(8808- )GL,KYO

(8808-9008)GX81,LX80,SX80..GL,GR,LG,STD ; (9008-)LX80,SX80..GL,GR,STD
