LX80-AEMNS (1988)
Toyota Mark 2

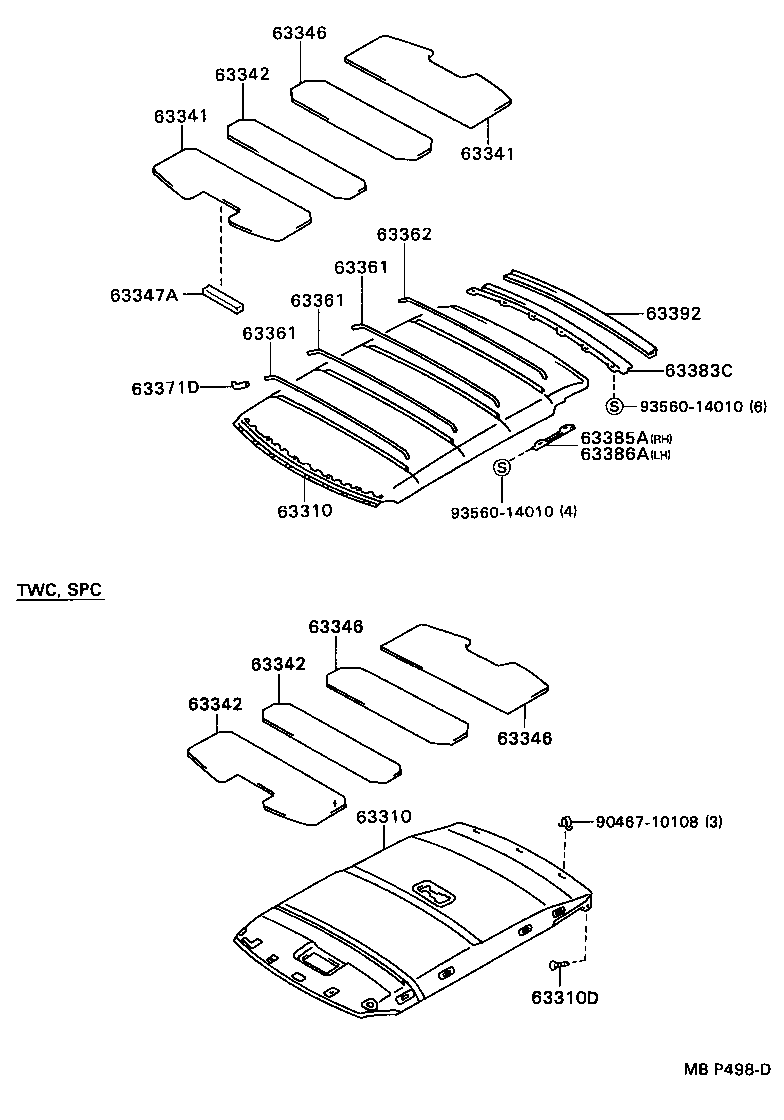

ILLUST NO. 1 OF 2(8808- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-2240004 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 63310-2249003 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2249002 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,NEW MAROON,TRIM3# |
1 | ||
| 63310-2249016 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,SABLE,TRIM4# |
1 | ||
| 63310-2249004 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT BLUE,TRIM8# |
1 | ||
| 63310-2249006 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-2240006 |
LX80,SX80,YX80..GL LIGHT SABLE,TRIM4# |
1 | ||
| 63310-2240003 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2240006 |
LX80,SX80..GL LIGHT SABLE,TRIM4# |
1 | ||
| 63310-2240003 |
LX80,SX80..GL,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2249002 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,NEW MAROON,TRIM3# |
1 | ||
| 63310-2249016 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,SABLE,TRIM4# |
1 | ||
| 63310-2249003 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2251003 |
LX80..GL..DSL ﾋﾖｳｼﾞﾕﾝ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2251006 |
LX80..GL..DSL ﾋﾖｳｼﾞﾕﾝ ﾀｸｼ-*99,LIGHT SABLE,TRIM4# |
1 | ||
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-2240004 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 63310-2249003 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2249002 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,NEW MAROON,TRIM3# |
1 | ||
| 63310-2249016 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,SABLE,TRIM4# |
1 | ||
| 63310-2249004 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT BLUE,TRIM8# |
1 | ||
| 63310-2249006 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-2240006 |
LX80,SX80,YX80..GL LIGHT SABLE,TRIM4# |
1 | ||
| 63310-2240003 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2240006 |
LX80,SX80..GL LIGHT SABLE,TRIM4# |
1 | ||
| 63310-2240003 |
LX80,SX80..GL,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2249002 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,NEW MAROON,TRIM3# |
1 | ||
| 63310-2249016 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,SABLE,TRIM4# |
1 | ||
| 63310-2249003 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2251003 |
LX80..GL..DSL ﾋﾖｳｼﾞﾕﾝ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2251006 |
LX80..GL..DSL ﾋﾖｳｼﾞﾕﾝ ﾀｸｼ-*99,LIGHT SABLE,TRIM4# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-22150 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-22150 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63342-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 63346 - PAD, ROOF SILENCER, NO.6 | ||||
| 63346-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
1 | ||
| 63347A - PAD, ROOF SILENCER, NO.7 | ||||
| 63347-22020 |
LX80..GL..DSL |
1 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22200 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1016 |
3 | ||
| 63361-22130 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1013 |
3 | ||
| 63361-22210 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1019 |
3 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22200 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1016 |
3 | ||
| 63361-22130 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1013 |
3 | ||
| 63361-22210 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1019 |
3 | ||
| 63361 - SUPPORT, ROOF HEADLINING, NO.1 | ||||
| 63361-22200 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1016 |
3 | ||
| 63361-22130 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1013 |
3 | ||
| 63361-22210 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1019 |
3 | ||
| 63362 - SUPPORT, ROOF HEADLINING, NO.2 | ||||
| 63361-22200 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1016 |
1 | ||
| 63361-22220 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1022 |
1 | ||
| 63361-22210 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) L=1019 |
1 | ||
| 63371D - RETAINER, ROOF HEADLINING SUPPORT | ||||
| 63371-22030 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) |
8 | ||
| 63383C - RETAINER, ROOF HEADLINING TRIM, REAR | ||||
| 63383-22070 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) |
1 | ||
| 63385A - RETAINER, ROOF HEADLINING TRIM SIDE, RH | ||||
| 63385-22040 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) |
1 | ||
| 63386A - RETAINER, ROOF HEADLINING TRIM SIDE, LH | ||||
| 63386-22040 |
GX81,LX80,SX80,YX80..SED..(CI,DSL,HTWC,LPG,TD) |
1 | ||
| 63392 - TRIM, ROOF HEADLINING, REAR | ||||
| 63392-2214006 |
LX80,SX80,YX80..GL LIGHT SABLE,TRIM4# |
1 | ||
| 63392-2215004 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT BLUE,TRIM8# |
1 | ||
| 63392-2214004 |
GX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG,STD) LIGHT BLUE,TRIM8# |
1 | ||
| 63392-2214002 |
LX80,SX80..SED..GR;GX81,LX80,YX80..SED..(GL,LG)..(DSL,HTWC,LPG) NEW MAROON,TRIM3# |
1 | ||
| 63392-2214006 |
GX81,LX80,SX80,YX80..SED..(GL,GR,LG) LIGHT SABLE,TRIM4# |
1 | ||
| 63392-2215006 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63392-2215003 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63392-2215016 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,SABLE,TRIM4# |
1 | ||
| 63392-2215002 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 90467-10108 | ||||
| 93560-14010 | ||||
ILLUST NO. 2 OF 2(8808- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310 - HEADLINING ASSY, ROOF | ||||
| 63310-2240004 |
LX80,SX80,YX80..GL,KYO,STD DARK BLUE,TRIM8# |
1 | ||
| 63310-2249003 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2249002 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,NEW MAROON,TRIM3# |
1 | ||
| 63310-2249016 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,SABLE,TRIM4# |
1 | ||
| 63310-2249004 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT BLUE,TRIM8# |
1 | ||
| 63310-2249006 |
LX80,YX80..GL..(DSL,LPG) ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,LIGHT SABLE,TRIM3#,4# |
1 | ||
| 63310-2240006 |
LX80,SX80,YX80..GL LIGHT SABLE,TRIM4# |
1 | ||
| 63310-2240003 |
LX80,SX80,YX80..GL,KYO,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2240006 |
LX80,SX80..GL LIGHT SABLE,TRIM4# |
1 | ||
| 63310-2240003 |
LX80,SX80..GL,STD MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2249002 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,NEW MAROON,TRIM3# |
1 | ||
| 63310-2249016 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,SABLE,TRIM4# |
1 | ||
| 63310-2249003 |
LX80..GL..DSL ﾊｲ ｸﾞﾚ-ﾄﾞ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2251003 |
LX80..GL..DSL ﾋﾖｳｼﾞﾕﾝ ﾀｸｼ-*99,MEDIUM GRAY,TRIM1# |
1 | ||
| 63310-2251006 |
LX80..GL..DSL ﾋﾖｳｼﾞﾕﾝ ﾀｸｼ-*99,LIGHT SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90168-40012 | ||||
| 90467-10108 | ||||
