LX80-AEMNS (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1993

Engine 2L

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8808-9308)2L#

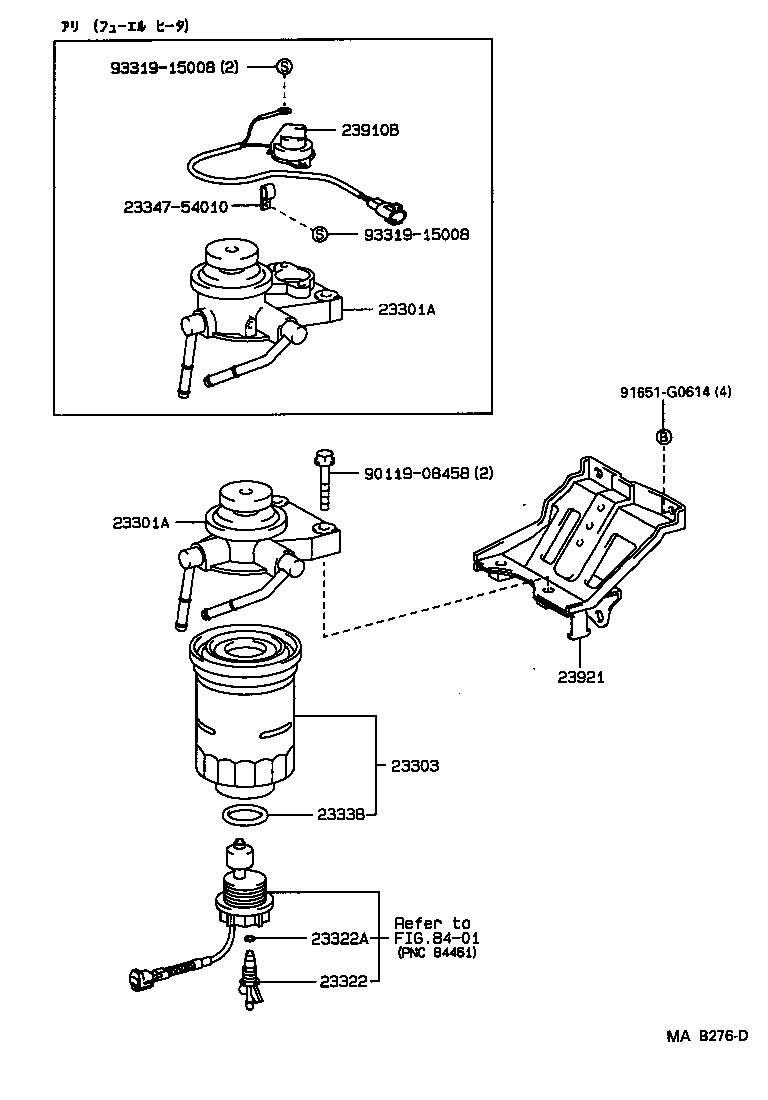

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
23301A - CAP ASSY, FUEL FILTER
23301-54380	2L#..LX80	08/1988 - 02/1993	1
23301-54400	2L#..LX80 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1988 - 02/1993	1
23301A - CAP ASSY, FUEL FILTER
23301-54380	2L#..LX80	08/1988 - 02/1993	1
23301-54400	2L#..LX80 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1988 - 02/1993	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010	2L#..LX80	01/1992 - 08/1993	1
23303-64020	2L#..LX80	08/1988 - 01/1992	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010	2L#..LX80	08/1988 - 08/1993	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	2L#..LX80	08/1988 - 08/1993	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	2L#..LX80	08/1988 - 08/1993	1
23910B - HEATER ASSY, FUEL
23910-64010	2L#..LX80 ｶﾝﾚｲﾁｼﾖｳ OR ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1988 - 06/1993	1
23921 - SUPPORT, FUEL FILTER
23921-54300	2L#..LX80	08/1988 - 09/1994	1
Common parts
23347-54010
90119-08458
91651-G0614
93319-15008
Linked diagrams
8401
