LX80-AEMEX (1988)
Toyota Mark 2

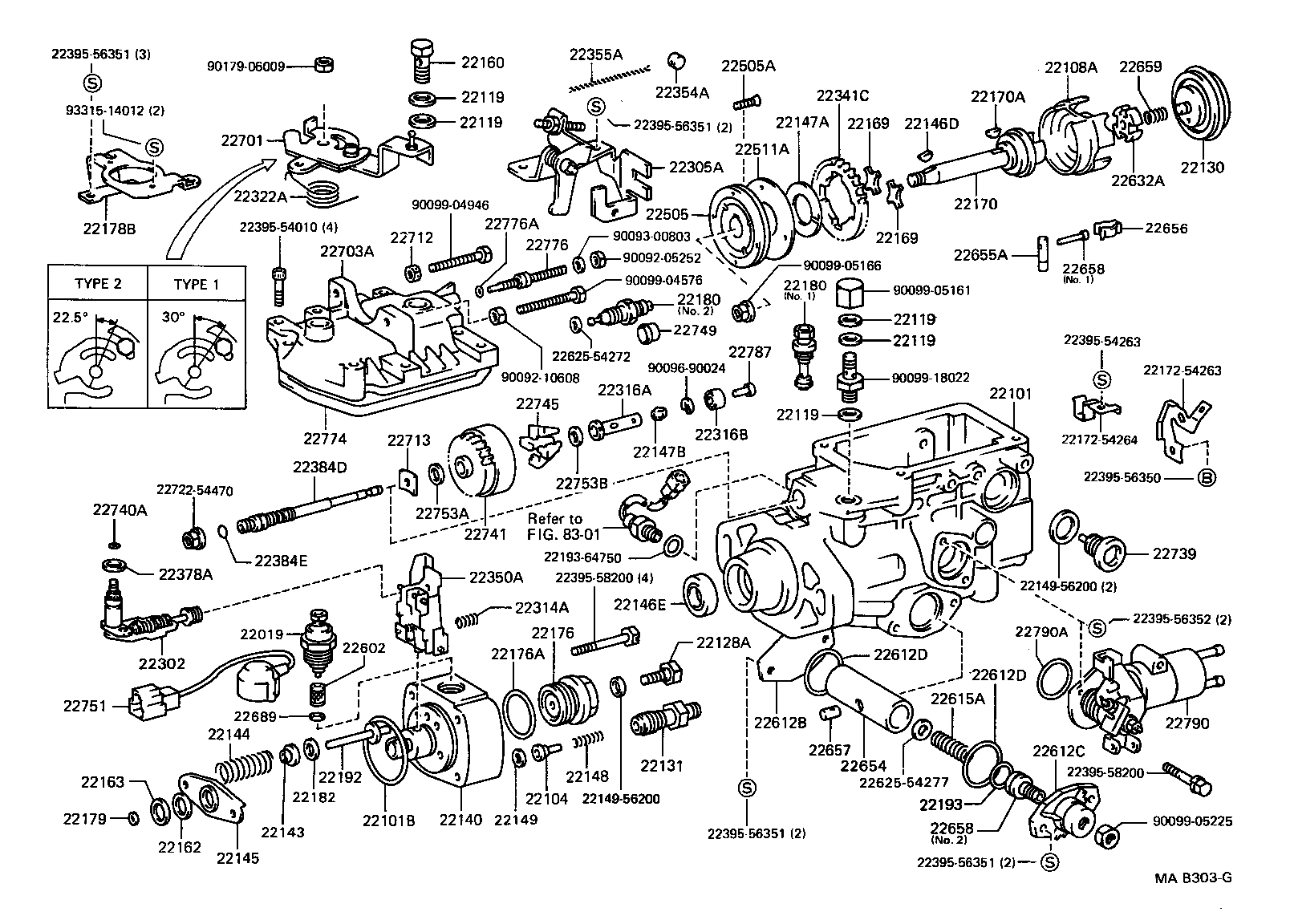

ILLUST NO. 2 OF 2(8808-9302)2LT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22019 - SOLENOID ASSY, FUEL CUT | ||||
| 22019-6A510 |
2L#..LX80 |
1 | ||
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54260 |
2LT..LX80 |
1 | ||
| 22101-64020 |
2L..LX80 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
2L#..LX80 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-5B010 |
2LT..LX80 |
4 | ||
| 22104-64010 |
2L..LX80 |
4 | ||
| 22104-5B011 |
2LT..LX80 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
2L#..LX80 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-54010 |
2L..LX80 |
1 | ||
| 22130-5B010 |
2LT..LX80 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-64740 |
2L#..LX80 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-54730 |
2L#..LX80 |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
2L#..LX80 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
2L#..LX80 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
2L#..LX80 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
2L#..LX80 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
2L#..LX80 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
2L#..LX80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
2L#..LX80 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
2L#..LX80 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
2L#..LX80 |
4 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
2L#..LX80 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
2L#..LX80 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L#..LX80 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L#..LX80 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
2LT..LX80 |
1 | ||
| 22170-6A510 |
2L..LX80 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
2L#..LX80 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
2L#..LX80 |
1 | ||
| 22178B - BRACKET(FOR INJECTION PUMP ASSY) | ||||
| 22178-54620 |
2L..LX80 |
1 | ||
| 22178-54630 |
2LT..LX80 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54010 |
2L#..LX80 厚さ=1.9 |
1 | ||
| 22179-54017 |
2L#..LX80 厚さ=2.6 |
1 | ||
| 22179-54012 |
2L#..LX80 厚さ=2.1 |
1 | ||
| 22179-54020 |
2L#..LX80 厚さ=2.9 |
1 | ||
| 22179-54018 |
2L#..LX80 厚さ=2.7 |
1 | ||
| 22179-54013 |
2L#..LX80 厚さ=2.2 |
1 | ||
| 22179-54015 |
2L#..LX80 厚さ=2.4 |
1 | ||
| 22179-54011 |
2L#..LX80 厚さ=2.0 |
1 | ||
| 22179-54016 |
2L#..LX80 厚さ=2.5 |
1 | ||
| 22179-54014 |
2L#..LX80 厚さ=2.3 |
1 | ||
| 22179-54019 |
2L#..LX80 厚さ=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-64851 |
2L#..LX80 NO.2 |
1 | ||
| 22180-55050 |
2L#..LX80 NO.1 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-64851 |
2L#..LX80 NO.2 |
1 | ||
| 22180-55050 |
2L#..LX80 NO.1 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-54010 |
2L#..LX80 厚さ=1.0 |
2 | ||
| 22182-54010 |
2L#..LX80 厚さ=0.5 |
2 | ||
| 22185-54010 |
2L#..LX80 厚さ=1.2 |
2 | ||
| 22186-54010 |
2L#..LX80 厚さ=1.5 |
2 | ||
| 22183-54010 |
2L#..LX80 厚さ=0.8 |
2 | ||
| 22188-54010 |
2L#..LX80 厚さ=2.0 |
2 | ||
| 22187-54010 |
2L#..LX80 厚さ=1.8 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
2L#..LX80 |
2 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-64750 |
2L..LX80 |
1 | ||
| 22193-55031 |
2LT..LX80 NO.2 |
1 | ||
| 22193-64750 |
2LT..LX80 NO.1 |
1 | ||
| 22302 - SHAFT SUB-ASSY, SPEED CONTROL | ||||
| 22302-5B090 |
2LT..LX80..5F |
1 | ||
| 22302-54890 |
2L..LX80 |
1 | ||
| 22302-5B010 |
2LT..LX80 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
2L#..LX80 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54290 |
2L..LX80 内径=0.80 |
1 | ||
| 22316-54360 |
2L#..LX80 内径=0.75 |
1 | ||
| 22316-54261 |
2LT..LX80 内径=1.00 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
2L#..LX80 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54630 |
2L#..LX80 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
2L#..LX80 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-54890 |
2L#..LX80 |
1 | ||
| 22350-54620 |
2LT..LX80 |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
2L#..LX80 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
2L#..LX80 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
2L#..LX80 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
2L#..LX80 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
2L#..LX80 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
2L#..LX80 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
2L#..LX80 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
2L#..LX80 |
1 | ||
| 22511-54020 |
2L..LX80 |
1 | ||
| 22511-58650 |
2LT..LX80 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
2L#..LX80 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
2L#..LX80 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
2L#..LX80 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
2L..LX80 |
2 | ||
| 90099-14051 |
2LT..LX80 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
2L..LX80 |
2 | ||
| 90099-14051 |
2LT..LX80 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-5B010 |
2LT..LX80 ﾊﾞﾈ定数=2.80,長さ=38.1 |
1 | ||
| 22615-54180 |
2LT..LX80 ﾊﾞﾈ定数=3.00,長さ=37.3 |
1 | ||
| 22615-54490 |
2LT..LX80 ﾊﾞﾈ定数=2.50,長さ=38.2 |
1 | ||
| 22615-54892 |
2L..LX80 ﾊﾞﾈ定数=2.20,長さ=40.6 |
1 | ||
| 22615-54891 |
2L..LX80 ﾊﾞﾈ定数=2.00,長さ=39.5 |
1 | ||
| 22615-54890 |
2L..LX80 ﾊﾞﾈ定数=2.40,長さ=39.5 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
2L#..LX80 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-54770 |
2LT..LX80 |
1 | ||
| 22654-5B011 |
2LT..LX80 |
1 | ||
| 22654-54890 |
2L..LX80 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
2L#..LX80 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
2LT..LX80 NO.1 |
1 | ||
| 22656-54010 |
2L..LX80 |
1 | ||
| 22656-54490 |
2LT..LX80 NO.2 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
2L#..LX80 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
2L#..LX80 NO.2 |
1 | ||
| 22658-54010 |
2L#..LX80 NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
2L#..LX80 NO.2 |
1 | ||
| 22658-54010 |
2L#..LX80 NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
2L#..LX80 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
2L#..LX80 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54451 |
2L..LX80 TYPE 1,MARK 130 |
1 | ||
| 22701-54630 |
2LT..LX80..5F TYPE 1,MARK 269 |
1 | ||
| 22701-54631 |
2LT..LX80..5F TYPE 2,MARK 270 |
1 | ||
| 22701-54452 |
2L..LX80 TYPE 2,MARK 131 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
2L#..LX80 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
2L#..LX80 厚さ=1.25 |
1 | ||
| 22716-54010 |
2L#..LX80 厚さ=1.65 |
1 | ||
| 22713-54010 |
2L#..LX80 厚さ=1.05 |
1 | ||
| 22717-54010 |
2L#..LX80 厚さ=1.85 |
1 | ||
| 22715-54010 |
2L#..LX80 厚さ=1.45 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
2L#..LX80 |
2 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
2L#..LX80 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
2L#..LX80 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
2L#..LX80 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-55050 |
2L#..LX80 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-54311 |
2L..LX80 |
1 | ||
| 22751-6A220 |
2LT..LX80 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
2L#..LX80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
2L#..LX80 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
2L#..LX80 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
2L..LX80 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54029 |
2L#..LX80 長さ=3.6 |
1 | ||
| 22787-64641 |
2L#..LX80 長さ=3.0 |
1 | ||
| 22787-54031 |
2L#..LX80 長さ=3.8 |
1 | ||
| 22787-64640 |
2L#..LX80 長さ=4.1 |
1 | ||
| 22787-54033 |
2L#..LX80 長さ=4.0 |
1 | ||
| 22787-54027 |
2L#..LX80 長さ=3.4 |
1 | ||
| 22787-64680 |
2L#..LX80 長さ=4.2 |
1 | ||
| 22787-64643 |
2L#..LX80 長さ=3.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-54890 |
2L..LX80 |
1 | ||
| 22790-5B010 |
2LT..LX80 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2LT..LX80 |
1 | ||
| 90099-14105 |
2L..LX80 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22172-54264 | ||||
| 22193-64750 | ||||
| 22395-54010 | ||||
| 22395-54263 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-54277 | ||||
| 22722-54470 | ||||
| 90092-05252 | ||||
| 90092-10601 | ||||
| 90093-00802 | ||||
| 90096-90024 | ||||
| 90099-04954 | ||||
| 90099-04959 | ||||
| 90099-05161 | ||||
| 90099-05166 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 90179-60009 | ||||
| 91611-60814 | ||||
| 93315-14012 | ||||
| 93381-16012 | ||||
| 93381-16016 | ||||
| Linked diagrams | ||||
| 8301 | ||||

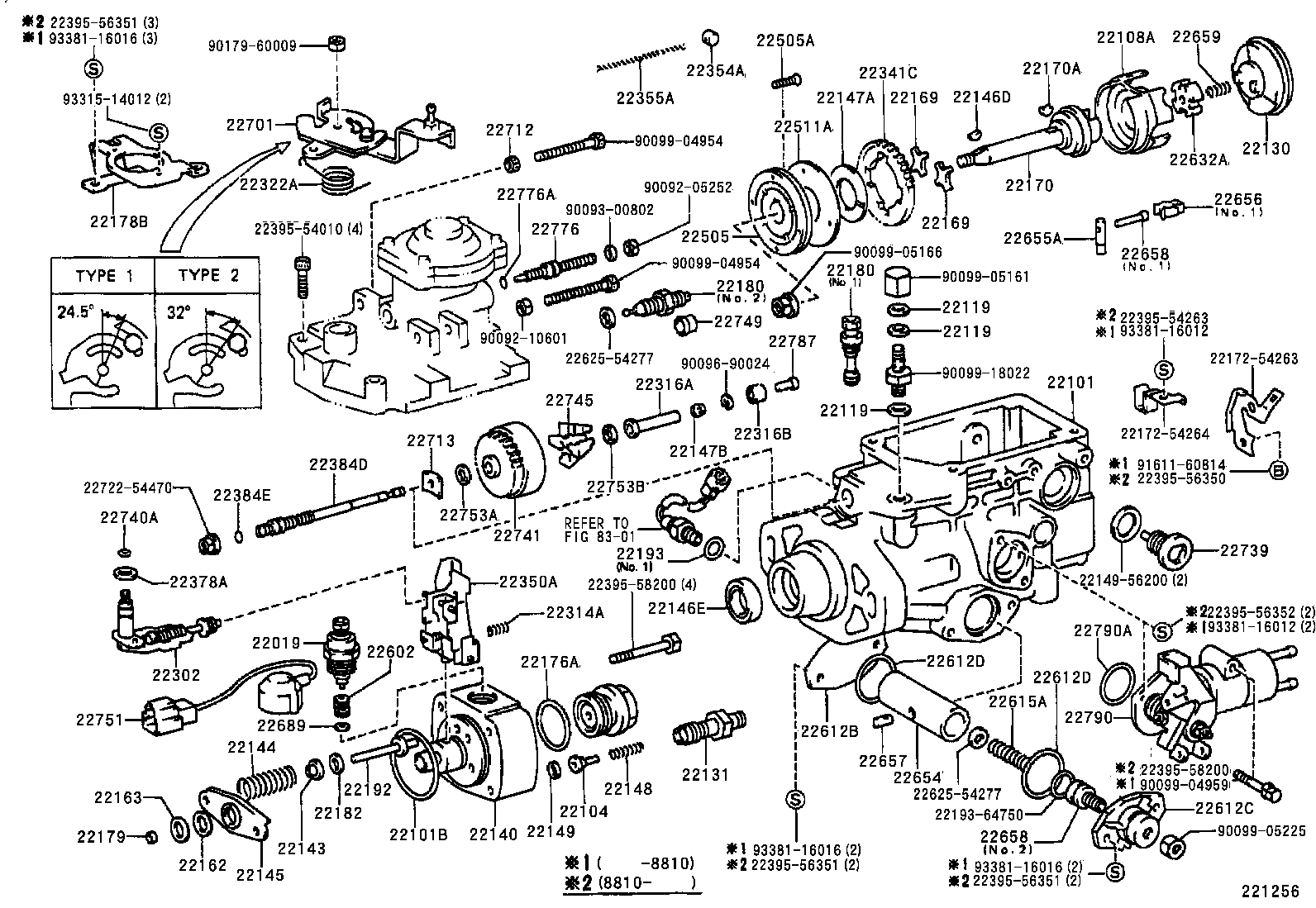

(8808-9308)2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22019 - SOLENOID ASSY, FUEL CUT | ||||
| 22019-6A510 |
2L#..LX80 |
1 | ||
| 22101 - HOUSING SUB-ASSY, INJECTION PUMP | ||||
| 22101-54260 |
2LT..LX80 |
1 | ||
| 22101-64020 |
2L..LX80 |
1 | ||
| 22101B - RING, O(FOR INJECTION PUMP HOUSING) | ||||
| 90099-14053 |
2L#..LX80 |
1 | ||
| 22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY | ||||
| 22104-5B010 |
2LT..LX80 |
4 | ||
| 22104-64010 |
2L..LX80 |
4 | ||
| 22104-5B011 |
2LT..LX80 |
4 | ||
| 22108A - RING SUB-ASSY, ROLLER | ||||
| 22108-54180 |
2L#..LX80 |
1 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22128A - BOLT, DISTRIBUTIVE HEAD | ||||
| 22128-54010 |
2L..LX80 |
1 | ||
| 22130 - CAMPLATE SUB-ASSY, FACE | ||||
| 22130-54010 |
2L..LX80 |
1 | ||
| 22130-5B010 |
2LT..LX80 |
1 | ||
| 22131 - HOLDER, DELIVERY VALVE | ||||
| 22190-64740 |
2L#..LX80 |
4 | ||
| 22140 - HEAD SUB-ASSY, DISTRIBUTIVE PUMP | ||||
| 22140-54730 |
2L#..LX80 |
1 | ||
| 22143 - SEAT, SPRING UPPER | ||||
| 22143-54010 |
2L#..LX80 |
2 | ||
| 22144 - SPRING, PUMP PLUNGER | ||||
| 22144-54190 |
2L#..LX80 |
2 | ||
| 22145 - SEAT, SPRING, LOWER | ||||
| 22145-54010 |
2L#..LX80 |
1 | ||
| 22146D - KEY(FOR DRIVE GEAR) | ||||
| 90099-13018 |
2L#..LX80 |
1 | ||
| 22146E - SEAL(FOR DRIVE SHAFT) | ||||
| 22544-64740 |
2L#..LX80 |
1 | ||
| 22147A - WASHER, DRIVE SHAFT | ||||
| 22161-54010 |
2L#..LX80 |
1 | ||
| 22147B - RING, GOVERNOR SLEEVE | ||||
| 22147-54290 |
2L#..LX80 |
1 | ||
| 22148 - SPRING, DELIVERY VALVE | ||||
| 22148-54010 |
2L#..LX80 |
4 | ||
| 22149 - GASKET, DELIVERY VALVE | ||||
| 22149-54010 |
2L#..LX80 |
4 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
2L#..LX80 |
1 | ||
| 22162 - PLATE, PLUNGER UPPER | ||||
| 22162-54010 |
2L#..LX80 |
1 | ||
| 22163 - PLATE, PLUNGER LOWER | ||||
| 22163-54010 |
2L#..LX80 |
1 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L#..LX80 |
2 | ||
| 22169 - JOINT, RUBBER | ||||
| 22169-54180 |
2L#..LX80 |
2 | ||
| 22170 - SHAFT SUB-ASSY, DRIVE | ||||
| 22170-54180 |
2LT..LX80 |
1 | ||
| 22170-6A510 |
2L..LX80 |
1 | ||
| 22170A - KEY(FOR DRIVE SHAFT) | ||||
| 90099-13017 |
2L#..LX80 |
1 | ||
| 22176 - PLUG, DISTRIBUTIVE HEAD | ||||
| 22176-54020 |
2L..LX80 |
1 | ||
| 22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG) | ||||
| 90099-14052 |
2L#..LX80 |
1 | ||
| 22178B - BRACKET(FOR INJECTION PUMP ASSY) | ||||
| 22178-54620 |
2L..LX80 |
1 | ||
| 22178-54630 |
2LT..LX80 |
1 | ||
| 22179 - SHIM, PLUNGER ADJUSTING | ||||
| 22179-54010 |
2L#..LX80 厚さ=1.9 |
1 | ||
| 22179-54017 |
2L#..LX80 厚さ=2.6 |
1 | ||
| 22179-54012 |
2L#..LX80 厚さ=2.1 |
1 | ||
| 22179-54020 |
2L#..LX80 厚さ=2.9 |
1 | ||
| 22179-54018 |
2L#..LX80 厚さ=2.7 |
1 | ||
| 22179-54013 |
2L#..LX80 厚さ=2.2 |
1 | ||
| 22179-54015 |
2L#..LX80 厚さ=2.4 |
1 | ||
| 22179-54011 |
2L#..LX80 厚さ=2.0 |
1 | ||
| 22179-54016 |
2L#..LX80 厚さ=2.5 |
1 | ||
| 22179-54014 |
2L#..LX80 厚さ=2.3 |
1 | ||
| 22179-54019 |
2L#..LX80 厚さ=2.8 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-64851 |
2L#..LX80 NO.2 |
1 | ||
| 22180-55050 |
2L#..LX80 NO.1 |
1 | ||
| 22180 - VALVE SUB-ASSY, REGULATOR | ||||
| 22180-64851 |
2L#..LX80 NO.2 |
1 | ||
| 22180-55050 |
2L#..LX80 NO.1 |
1 | ||
| 22182 - PLATE, TAPPET ADJUSTING SHIM | ||||
| 22184-54010 |
2L#..LX80 厚さ=1.0 |
2 | ||
| 22182-54010 |
2L#..LX80 厚さ=0.5 |
2 | ||
| 22185-54010 |
2L#..LX80 厚さ=1.2 |
2 | ||
| 22186-54010 |
2L#..LX80 厚さ=1.5 |
2 | ||
| 22183-54010 |
2L#..LX80 厚さ=0.8 |
2 | ||
| 22188-54010 |
2L#..LX80 厚さ=2.0 |
2 | ||
| 22187-54010 |
2L#..LX80 厚さ=1.8 |
2 | ||
| 22192 - GUIDE SUB-ASSY, PLUNGER SPRING | ||||
| 22192-54010 |
2L#..LX80 |
2 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-64750 |
2L..LX80 |
1 | ||
| 22193-55031 |
2LT..LX80 NO.2 |
1 | ||
| 22193-64750 |
2LT..LX80 NO.1 |
1 | ||
| 22302 - SHAFT SUB-ASSY, SPEED CONTROL | ||||
| 22302-5B090 |
2LT..LX80..5F |
1 | ||
| 22302-54890 |
2L..LX80 |
1 | ||
| 22302-5B010 |
2LT..LX80 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-54730 |
2L#..LX80 |
1 | ||
| 22314A - SPRING, LEVER SUPPORT | ||||
| 22314-54010 |
2L#..LX80 |
2 | ||
| 22316A - SLEEVE, GOVERNOR | ||||
| 22316-54290 |
2L..LX80 内径=0.80 |
1 | ||
| 22316-54360 |
2L#..LX80 内径=0.75 |
1 | ||
| 22316-54261 |
2LT..LX80 内径=1.00 |
1 | ||
| 22316B - BEARING, BALL(FOR GOVERNOR SLEEVE) | ||||
| 90099-10148 |
2L#..LX80 |
1 | ||
| 22322A - SPRING, RETURN | ||||
| 22322-54630 |
2L#..LX80 |
1 | ||
| 22341C - GEAR, GOVERNOR DRIVE | ||||
| 22341-54010 |
2L#..LX80 |
1 | ||
| 22350A - GOVERNOR ASSY, TORQUE CONTROL | ||||
| 22350-54890 |
2L#..LX80 |
1 | ||
| 22350-54620 |
2LT..LX80 |
1 | ||
| 22354A - SEAL, ROD | ||||
| 22354-77050 |
2L#..LX80 |
1 | ||
| 22355A - WIRE, GOVERNOR HOUSING SEAL | ||||
| 22355-78030 |
2L#..LX80 |
1 | ||
| 22378A - WASHER, GOVERNOR THRUST | ||||
| 22378-64010 |
2L#..LX80 |
1 | ||
| 22384D - SHAFT, GOVERNOR | ||||
| 22380-54020 |
2L#..LX80 |
1 | ||
| 22384E - RING, O(FOR GOVERNOR MAIN SHAFT) | ||||
| 90099-14049 |
2L#..LX80 |
1 | ||
| 22505 - PUMP SUB-ASSY, FUEL FEED | ||||
| 22505-54010 |
2L#..LX80 |
1 | ||
| 22505A - SCREW(FOR FUEL FEED PUMP) | ||||
| 90099-00723 |
2L#..LX80 |
2 | ||
| 22511A - COVER, FEED PUMP | ||||
| 22511-54020 |
2L#..LX80 |
1 | ||
| 22511-54020 |
2L..LX80 |
1 | ||
| 22511-58650 |
2LT..LX80 |
1 | ||
| 22602 - FILTER SUB-ASSY, FUEL INJECTION PUMP | ||||
| 22602-56350 |
2L#..LX80 |
1 | ||
| 22612B - COVER, TIMER | ||||
| 22612-54010 |
2L#..LX80 |
1 | ||
| 22612C - COVER, TIMER | ||||
| 22612-54450 |
2L#..LX80 |
1 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
2L..LX80 |
2 | ||
| 90099-14051 |
2LT..LX80 |
2 | ||
| 22612D - RING, O(FOR TIMER COVER) | ||||
| 90099-14105 |
2L..LX80 |
2 | ||
| 90099-14051 |
2LT..LX80 |
2 | ||
| 22615A - SPRING, TIMER OUTER | ||||
| 22615-5B010 |
2LT..LX80 ﾊﾞﾈ定数=2.80,長さ=38.1 |
1 | ||
| 22615-54180 |
2LT..LX80 ﾊﾞﾈ定数=3.00,長さ=37.3 |
1 | ||
| 22615-54490 |
2LT..LX80 ﾊﾞﾈ定数=2.50,長さ=38.2 |
1 | ||
| 22615-54892 |
2L..LX80 ﾊﾞﾈ定数=2.20,長さ=40.6 |
1 | ||
| 22615-54891 |
2L..LX80 ﾊﾞﾈ定数=2.00,長さ=39.5 |
1 | ||
| 22615-54890 |
2L..LX80 ﾊﾞﾈ定数=2.40,長さ=39.5 |
1 | ||
| 22632A - COUPLING, INJECTION PUMP | ||||
| 22632-54010 |
2L#..LX80 |
1 | ||
| 22654 - PISTON, TIMER | ||||
| 22654-54770 |
2LT..LX80 |
1 | ||
| 22654-5B011 |
2LT..LX80 |
1 | ||
| 22654-54890 |
2L..LX80 |
1 | ||
| 22655A - PIN, TIMER SLIDE | ||||
| 22655-54010 |
2L#..LX80 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
2L..LX80 |
1 | ||
| 22656-54490 |
2LT..LX80 NO.2 |
1 | ||
| 22656-54010 |
2LT..LX80 NO.1 |
1 | ||
| 22657 - CLIP, TIMER | ||||
| 22657-54010 |
2L#..LX80 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
2L#..LX80 NO.2 |
1 | ||
| 22658-54010 |
2L#..LX80 NO.1 |
1 | ||
| 22658 - STOPPER, TIMER | ||||
| 22658-54450 |
2L#..LX80 NO.2 |
1 | ||
| 22658-54010 |
2L#..LX80 NO.1 |
1 | ||
| 22659 - SPRING, COUPLING | ||||
| 22659-64150 |
2L#..LX80 |
1 | ||
| 22689 - WASHER(FOR SWIVEL NIPPLE) | ||||
| 22689-56350 |
2L#..LX80 |
1 | ||
| 22701 - LEVER SUB-ASSY, ADJUSTING | ||||
| 22701-54451 |
2L..LX80 TYPE 1,MARK 130 |
1 | ||
| 22701-54630 |
2LT..LX80..5F TYPE 1,MARK 269 |
1 | ||
| 22701-54631 |
2LT..LX80..5F TYPE 2,MARK 270 |
1 | ||
| 22701-54452 |
2L..LX80 TYPE 2,MARK 131 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54631 |
2LT..LX80 |
1 | ||
| 22703-54621 |
2L..LX80 |
1 | ||
| 22712 - NUT, ROCK | ||||
| 22775-77121 |
2L#..LX80 |
1 | ||
| 22713 - WASHER, GOVERNOR GEAR ADJUSTING | ||||
| 22714-54010 |
2L#..LX80 厚さ=1.25 |
1 | ||
| 22716-54010 |
2L#..LX80 厚さ=1.65 |
1 | ||
| 22713-54010 |
2L#..LX80 厚さ=1.05 |
1 | ||
| 22717-54010 |
2L#..LX80 厚さ=1.85 |
1 | ||
| 22715-54010 |
2L#..LX80 厚さ=1.45 |
1 | ||
| 22739 - BOLT, GOVERNOR LINK SUPPORT | ||||
| 22739-54020 |
2L#..LX80 |
2 | ||
| 22740A - RING, O(FOR GOVERNOR ADJUSTING SHAFT) | ||||
| 90099-14048 |
2L#..LX80 |
1 | ||
| 22741 - HOLDER SUB-ASSY, FLYWEIGHT | ||||
| 22741-54020 |
2L#..LX80 |
1 | ||
| 22745 - FLYWEIGHT, DISTRIBUTIVE PUMP | ||||
| 22745-54010 |
2L#..LX80 |
4 | ||
| 22749 - COLLAR, SMOKE SET ADJUSTING | ||||
| 22749-55050 |
2L#..LX80 |
1 | ||
| 22751 - WIRE SUB-ASSY, FUEL CUT SOLENOID | ||||
| 22751-54311 |
2L..LX80 |
1 | ||
| 22751-6A220 |
2LT..LX80 |
1 | ||
| 22753A - WASHER, FLYWEIGHT, NO.1 | ||||
| 22753-54010 |
2L#..LX80 |
1 | ||
| 22753B - WASHER, FLYWEIGHT, NO.2 | ||||
| 22753-54290 |
2L#..LX80 |
1 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
2L#..LX80 |
1 | ||
| 22776 - SCREW, SMOKE SET ADJUSTING | ||||
| 22776-54110 |
2L#..LX80 |
1 | ||
| 22776A - RING, O(FOR SMOKE SET SCREW) | ||||
| 90099-14047 |
2L..LX80 |
1 | ||
| 22787 - PLUG, GOVERNOR SLEEVE | ||||
| 22787-54029 |
2L#..LX80 長さ=3.6 |
1 | ||
| 22787-64641 |
2L#..LX80 長さ=3.0 |
1 | ||
| 22787-54031 |
2L#..LX80 長さ=3.8 |
1 | ||
| 22787-64640 |
2L#..LX80 長さ=4.1 |
1 | ||
| 22787-54033 |
2L#..LX80 長さ=4.0 |
1 | ||
| 22787-54027 |
2L#..LX80 長さ=3.4 |
1 | ||
| 22787-64680 |
2L#..LX80 長さ=4.2 |
1 | ||
| 22787-64643 |
2L#..LX80 長さ=3.2 |
1 | ||
| 22790 - COVER SUB-ASSY, TIMER | ||||
| 22790-54890 |
2L..LX80 |
1 | ||
| 22790-5B010 |
2LT..LX80 |
1 | ||
| 22790A - RING, O(FOR TIMER COVER) | ||||
| 90099-14051 |
2LT..LX80 |
1 | ||
| 90099-14105 |
2L..LX80 |
1 | ||
| Common parts | ||||
| 22149-56200 | ||||
| 22172-54263 | ||||
| 22172-54264 | ||||
| 22193-64750 | ||||
| 22395-54010 | ||||
| 22395-54263 | ||||
| 22395-56350 | ||||
| 22395-56351 | ||||
| 22395-56352 | ||||
| 22395-58200 | ||||
| 22625-54272 | ||||
| 22625-54277 | ||||
| 22722-54470 | ||||
| 90092-05252 | ||||
| 90092-10608 | ||||
| 90093-00803 | ||||
| 90096-90024 | ||||
| 90099-04576 | ||||
| 90099-04946 | ||||
| 90099-05161 | ||||
| 90099-05166 | ||||
| 90099-05225 | ||||
| 90099-18022 | ||||
| 90179-06009 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8301 | ||||

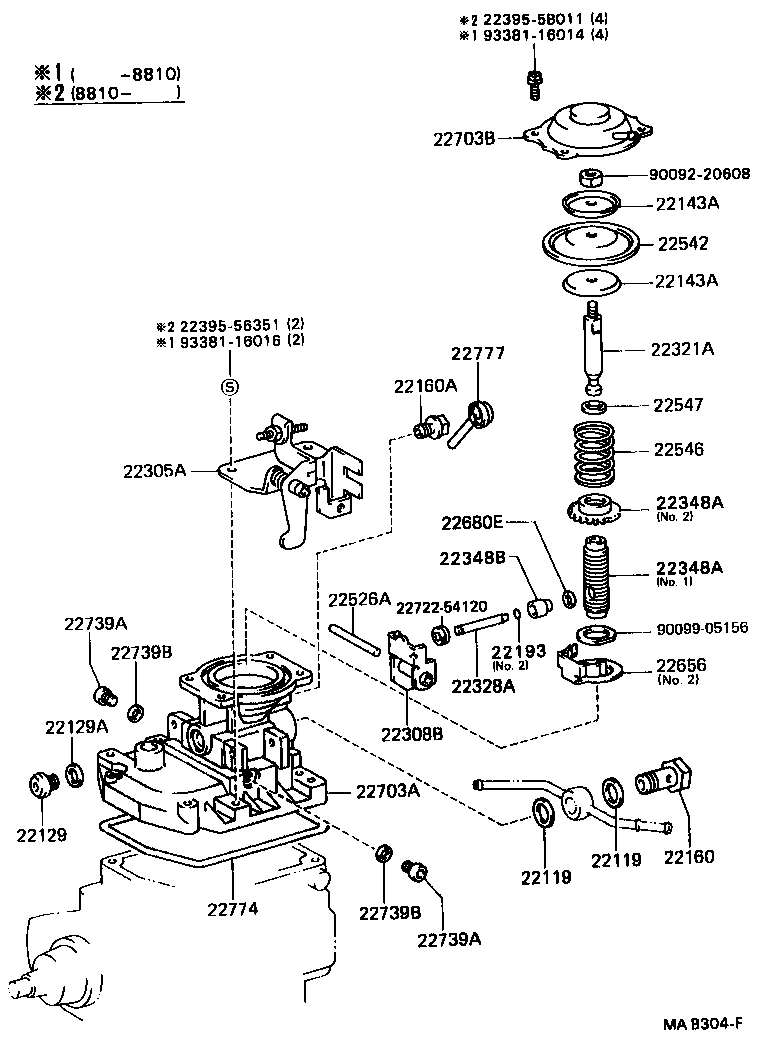

ILLUST NO. 1 OF 2(8808-9302)2LT..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22119 - WASHER, AIR BLEEDER NIPPLE | ||||
| 90201-12109 |
2L#..LX80 |
5 | ||
| 22129 - PLUG, SCREW | ||||
| 22129-54120 |
2LT..LX80 |
1 | ||
| 22129A - WASHER, AIR BLEEDER NIPPLE(FOR SCREW PLUG) | ||||
| 90201-12109 |
2LT..LX80 |
1 | ||
| 22143A - SEAT, SPRING UPPER, NO.2 | ||||
| 22143-54260 |
2LT..LX80 |
2 | ||
| 22143-54260 |
2LT..LX80..5F |
2 | ||
| 22143A - SEAT, SPRING UPPER, NO.2 | ||||
| 22143-54260 |
2LT..LX80 |
2 | ||
| 22143-54260 |
2LT..LX80..5F |
2 | ||
| 22160 - SCREW SUB-ASSY, OVERFLOW | ||||
| 22160-64010 |
2L#..LX80 |
1 | ||
| 22160A - SCREW SUB-ASSY, OVER FLOW, NO.2 | ||||
| 22160-54262 |
2LT..LX80 |
1 | ||
| 22193 - RING, O(FOR LEVER CONNECTING PIN) | ||||
| 22193-64750 |
2L..LX80 |
1 | ||
| 22193-55031 |
2LT..LX80 NO.2 |
1 | ||
| 22193-64750 |
2LT..LX80 NO.1 |
1 | ||
| 22305A - IDLE-UP SUB-ASSY | ||||
| 22305-54730 |
2L#..LX80 |
1 | ||
| 22308B - LEVER SUB-ASSY, CONTROL | ||||
| 22308-54120 |
2LT..LX80 |
1 | ||
| 22321A - ROD, PUSH | ||||
| 22321-5B010 |
2LT..LX80..5F |
1 | ||
| 22328A - PIN, LEVER CONNECTING | ||||
| 22338-54120 |
2LT..LX80 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-54490 |
2LT..LX80 NO.2 |
1 | ||
| 22348-64360 |
2LT..LX80 NO.1 |
1 | ||
| 22348A - BUSHING, GUIDE | ||||
| 22348-54490 |
2LT..LX80 NO.2 |
1 | ||
| 22348-64360 |
2LT..LX80 NO.1 |
1 | ||
| 22348B - BUSHING, GUIDE(FOR LEVER CONNECTING PIN) | ||||
| 22348-54121 |
2LT..LX80 |
1 | ||
| 22526A - PIN, LEVER SUPPORT | ||||
| 22526-54120 |
2LT..LX80 |
1 | ||
| 22542 - DIAPHRAGM(FOR BOOST COMPENSATOR) | ||||
| 22542-54260 |
2LT..LX80 |
1 | ||
| 22546 - SPRING, BOOST COMPENSATOR | ||||
| 22546-5B012 |
2LT..LX80..5F ﾊﾞﾈ定数=1.20,長さ=24.1 |
2 | ||
| 22546-5B011 |
2LT..LX80..5F ﾊﾞﾈ定数=1.60,長さ=22.7 |
2 | ||
| 22546-5B010 |
2LT..LX80..5F ﾊﾞﾈ定数=1.40,長さ=23.3 |
2 | ||
| 22547 - SHIM, BOOST COMPENSATOR | ||||
| 22547-54266 |
2LT..LX80 厚さ=1.5 |
1 | ||
| 22547-5B011 |
2LT..LX80..5F |
1 | ||
| 22547-54490 |
2LT..LX80 厚さ=1.1 |
1 | ||
| 22547-54267 |
2LT..LX80 厚さ=1.7 |
1 | ||
| 22547-54262 |
2LT..LX80 厚さ=2.3 |
1 | ||
| 22547-54264 |
2LT..LX80 厚さ=2.7 |
1 | ||
| 22547-54260 |
2LT..LX80 厚さ=1.9 |
1 | ||
| 22547-64360 |
2LT..LX80 厚さ=3.1 |
1 | ||
| 22656 - CLIP, TIMER | ||||
| 22656-54010 |
2L..LX80 |
1 | ||
| 22656-54490 |
2LT..LX80 NO.2 |
1 | ||
| 22656-54010 |
2LT..LX80 NO.1 |
1 | ||
| 22680E - WASHER, COPPER PLATE | ||||
| 90099-01473 |
2LT..LX80 |
1 | ||
| 22703A - COVER SUB-ASSY, GOVERNOR | ||||
| 22703-54631 |
2LT..LX80 |
1 | ||
| 22703-54621 |
2L..LX80 |
1 | ||
| 22703B - COVER, GOVERNOR | ||||
| 22703-5B010 |
2LT..LX80..5F |
1 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
2LT..LX80 |
2 | ||
| 22739A - BOLT, GOVERNOR LINK SUPPORT NO.2 | ||||
| 22739-54120 |
2LT..LX80 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22113-77090 |
2LT..LX80 |
2 | ||
| 22739B - WASHER(FOR GOVERNOR LINK SUPPORT BOLT NO.2) | ||||
| 22113-77090 |
2LT..LX80 |
2 | ||
| 22774 - GASKET, GOVERNOR COVER | ||||
| 22774-54010 |
2L#..LX80 |
1 | ||
| 22777 - CAP, RUBBER(FOR BELLOWS) | ||||
| 22777-54261 |
2LT..LX80..5F |
1 | ||
| Common parts | ||||
| 22395-56351 | ||||
| 22395-5B011 | ||||
| 22722-54120 | ||||
| 90092-20608 | ||||
| 90099-05156 | ||||
| 93381-16014 | ||||
| 93381-16016 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
