LX76V-XXMDS (1984)

Toyota Mark 2

Production Nov 1984 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )GX70,LX76,YX76

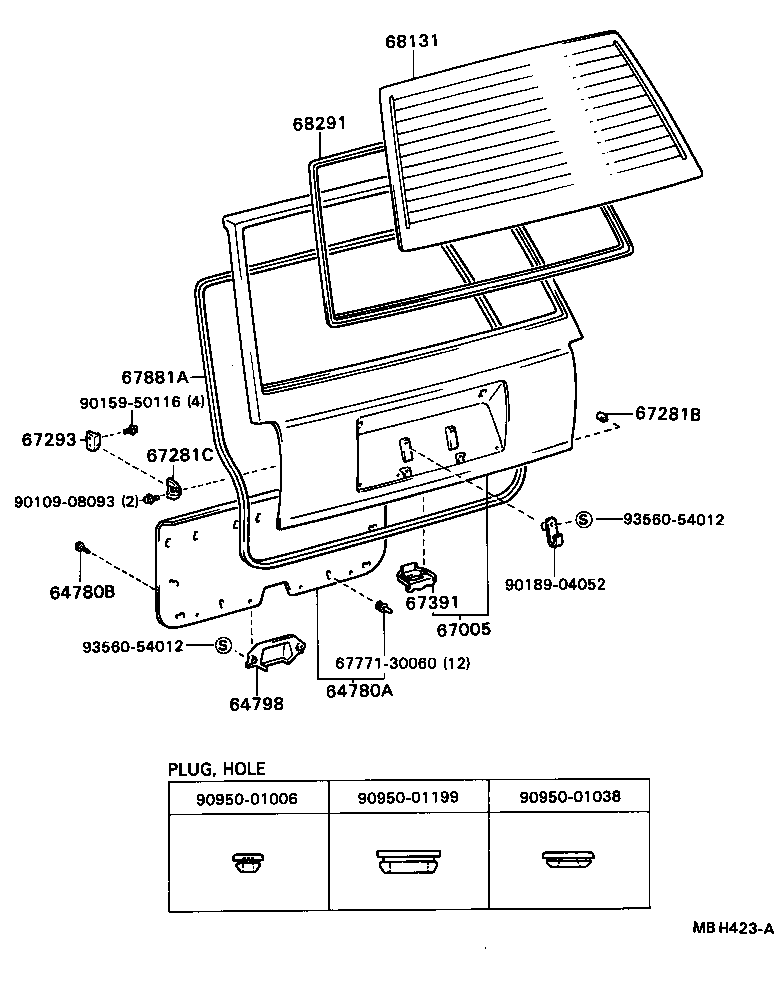

Click highlighted areas on diagram

diagram 64780A 64780B 64798 67005 67281B 67281C 67293 67391 6777130060 67881A 68131 68291 9010908093 9015950116 9018904052 9095001006 9095001038 9095001199 9356054012 9356054012
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-2303005

LX76,YX76

BEIGE,BEIGE,TRIM4#

 1
64780-2303004

LX76,YX76

BLUE,DARK BLUE,TRIM8#

 1
64780-2303015

LX76,YX76

BEIGE,DARK BEIGE,TRIM4#

 1
64780-2303003

LX76,YX76

GRAY,COOL GRAY,TRIM1#

 1
64780B - CLIP(FOR BACK DOOR TRIM PANEL)
90467-0811440

GX70,LX76,YX76

GRAY,GRAY,TRIM1#

 6
90467-0811450

GX70,LX76,YX76

BEIGE,BEIGE,TRIM4#

 6
90467-0811458

GX70,LX76,YX76

BLUE,DARK BLUE,TRIM8#

 6
90467-0811459

GX70,LX76,YX76

BEIGE,DARK BEIGE,TRIM4#

 6
64798 - COVER, BACK DOOR LOCK
64798-2301004

LX76,YX76

BLUE,DARK BLUE,TRIM8#

 1
64798-2301005

LX76,YX76

BEIGE,BEIGE,TRIM4#

 1
64798-2301015

LX76,YX76

BEIGE,DARK BEIGE,TRIM4#

 1
64798-2301003

LX76,YX76

GRAY,COOL GRAY,TRIM1#

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-23060

LX76,YX76..DX

 1
67005-23050

LX76,YX76..DX

W/RR WIPER

 1
67281B - STOPPER, BACK DOOR, LOWER
67281-13030

GX70,LX76,YX76

 1
67281C - PLATE, BACK DOOR LOWER STOPPER
67281-23010

GX70,LX76,YX76

 2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67293-23010

GX70,LX76,YX76

RH

 1
67294-23010

GX70,LX76,YX76

LH

 1
67391 - REINFORCEMENT, BACK DOOR LOCK
67391-23010

GX70,LX76,YX76

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-23010

GX70,LX76,YX76

 1
67881-91702

GX70,LX76,YX76

 1
68131 - GLASS, BACK DOOR
68105-23010

GX70,LX76,YX76

*EHTT,厚さ=3.5,*EHTT,T=3.5

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-23020

LX76,YX76..DX

 1
Common parts
67771-30060
90109-08093
90159-50116
90189-04052
90950-01006
90950-01038
90950-01199
93560-54012
