LX70Y-XEMRS (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )DX,GL,GR,KYO,LG,LS,STD

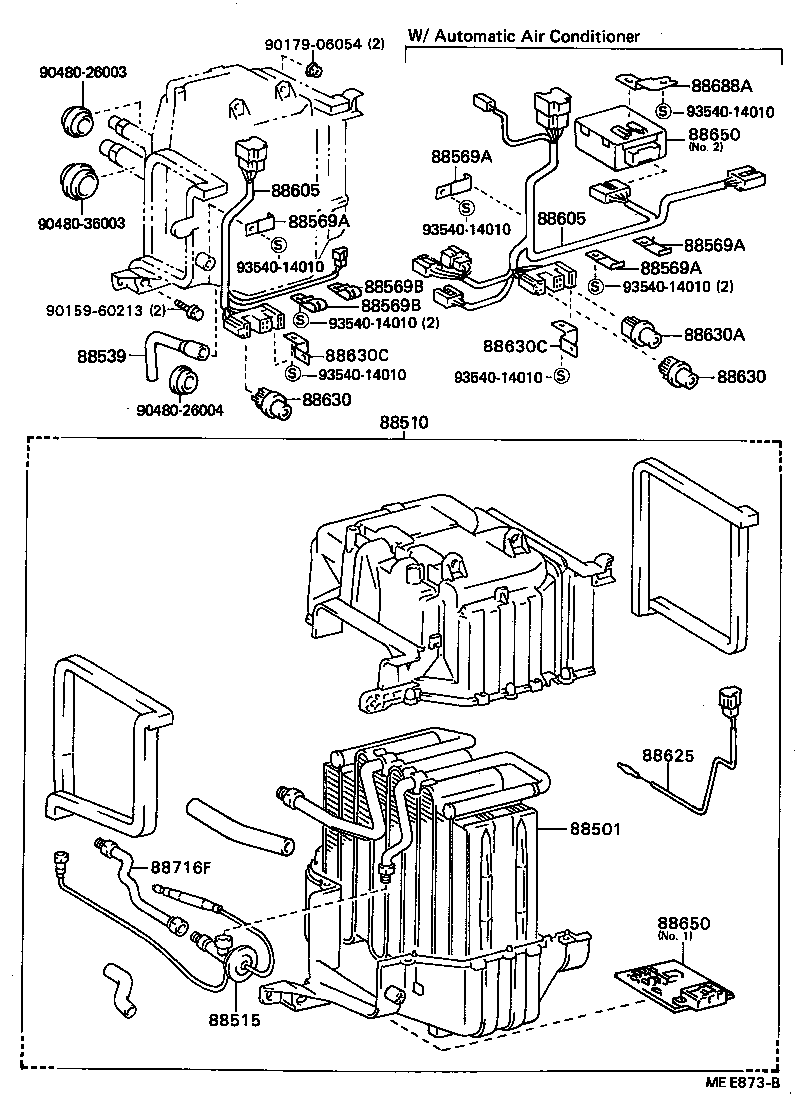

Click highlighted areas on diagram

diagram 88501 88510 88515 88539 88569A 88569A 88569A 88569A 88569B 88569B 88605 88605 88625 88630 88630 88630A 88630C 88630C 88650 88650 88688A 88716F 9015960213 9017906054 9048026003 9048026004 9048036003 9354014010 9354014010 9354014010 9354014010 9354014010 9354014010 9354014010
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22151

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88501-22152

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88510 - UNIT ASSY, COOLER
88510-22360

LX70..KYO

 1
88510-22361

LX70..KYO

 1
88515 - VALVE, COOLER EXPANSION
88515-16030

LX70..KYO

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22110

GX7#,LX7#,MX71,SX70,YX7#

 1
88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS)
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS)
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS)
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88569A - CLAMP, NO.1(FOR COOLER WIRING HARNESS)
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88567-22230

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88569B - CLAMP, NO.2(FOR COOLER WIRING HARNESS)
88569-22150

LX70,YX70,72..KYO

 2
88569B - CLAMP, NO.2(FOR COOLER WIRING HARNESS)
88569-22150

LX70,YX70,72..KYO

 2
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22430

LX70..KYO

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22430

LX70..KYO

 1
88625 - THERMISTOR, COOLER, NO.1
88625-90A00

LX70..KYO

 1
88630 - RELAY ASSY, COOLER
90987-02004

LX70..KYO

 1
88630 - RELAY ASSY, COOLER
90987-02004

LX70..KYO

 1
88630C - BRACKET, COOLER RELAY
88688-22230

GX7#,LX7#,SX70,YX76..DX,GL,GR,KYO,LG,LS,STD

 1
88630C - BRACKET, COOLER RELAY
88688-22230

GX7#,LX7#,SX70,YX76..DX,GL,GR,KYO,LG,LS,STD

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22160

LX70..KYO

NO.1

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22160

LX70..KYO

NO.1

 1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-22681

GX7#,LX7#,SX70,YX7#

 1
88716-22680

GX7#,LX7#,SX70,YX7#

 1
Common parts
90159-60213
90179-06054
90480-26003
90480-26004
90480-36003
93540-14010
