LX70Y-XEMRS (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )SED,V,WG

Click highlighted areas on diagram

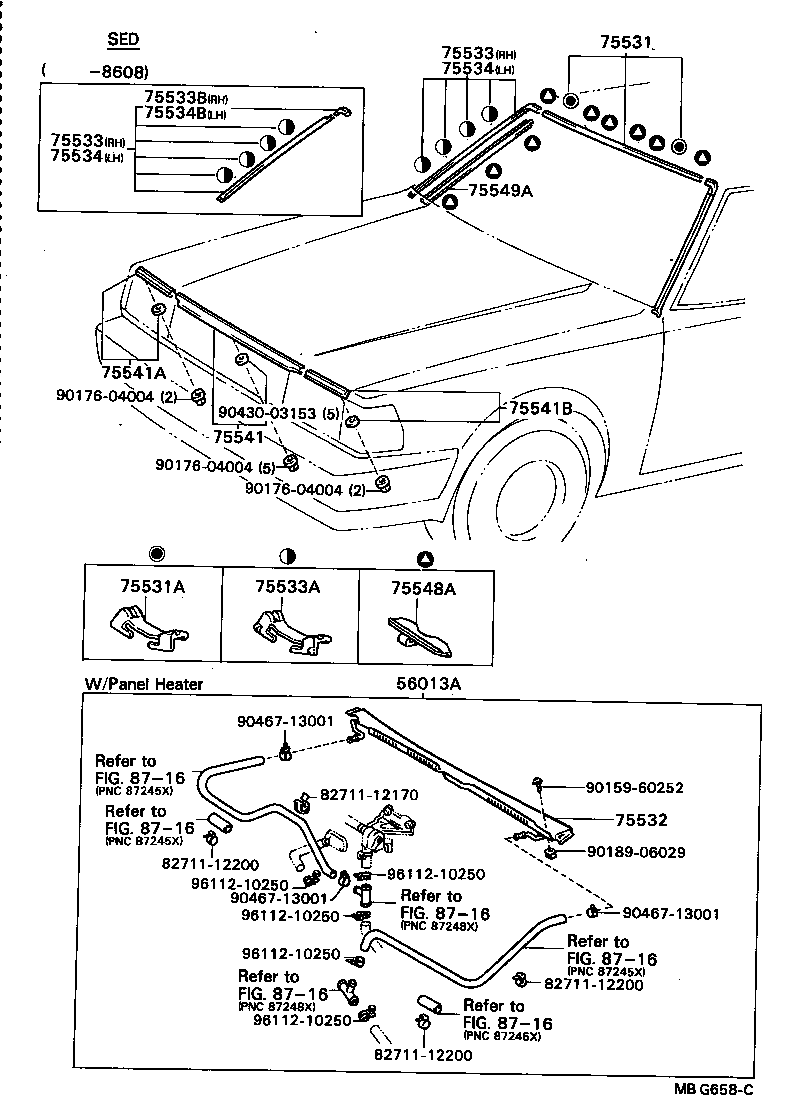

diagram 56013A 75531 75531A 75532 75533 75533 75533A 75533B 75534 75534 75534B 75541 75541A 75541B 75548A 75549A 8271112170 8271112200 8271112200 8271112200 8716 8716 8716 8716 8716 8716 9015960252 9017604004 9017604004 9017604004 9018906029 9043003153 9046713001 9046713001 9046713001 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
56013A - MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
56013-22010

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22090

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-22040

GX7#,LX7#,MX71,SX70,YX7#

 5
75532 - MOULDING, WINDSHIELD, LOWER
75504-22040

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

W/PANEL HEATER

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-22140

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75533-22120

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

COLD SPEC

 1
75533-22180

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-22140

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75533-22120

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

COLD SPEC

 1
75533-22180

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
75533A - CLIP, WINDSHIELD SIDE MOULDING, RH
75546-22050

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 8
75533B - COVER, WINDSHIELD MOULDING JOINT, UPPER RH
75541-22020

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-22130

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75534-22120

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-22130

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75534-22120

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
75534B - COVER, WINDSHIELD MOULDING JOINT, UPPER LH
75542-22020

GX7#,LX70,MX71,SX70,YX70..SED,WG

 1
75541 - MOULDING, HOOD, FRONT
75770-22121

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
75770-22120

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75541A - MOULDING, HOOD, FRONT RH
75780-22080

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75780-22081

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
75541B - MOULDING, HOOD, FRONT LH
75790-22051

GX7#,LX7#,SX70,YX7#..SED,V,WG

 1
75790-22050

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-22101

GX7#,LX7#,SX70,YX7#

 12
75548-22100

GX7#,LX7#,MX71,SX70,YX7#

 12
75549A - MOULDING, WINDSHIELD OUTSIDE SUB
75549-22030

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

COLD SPEC

 1
Common parts
82711-12170
82711-12200
90159-60252
90176-04004
90189-06029
90430-03153
90467-13001
96112-10250
Linked diagrams
8716
