LX70Y-XEMRS (1984)
Toyota Mark 2

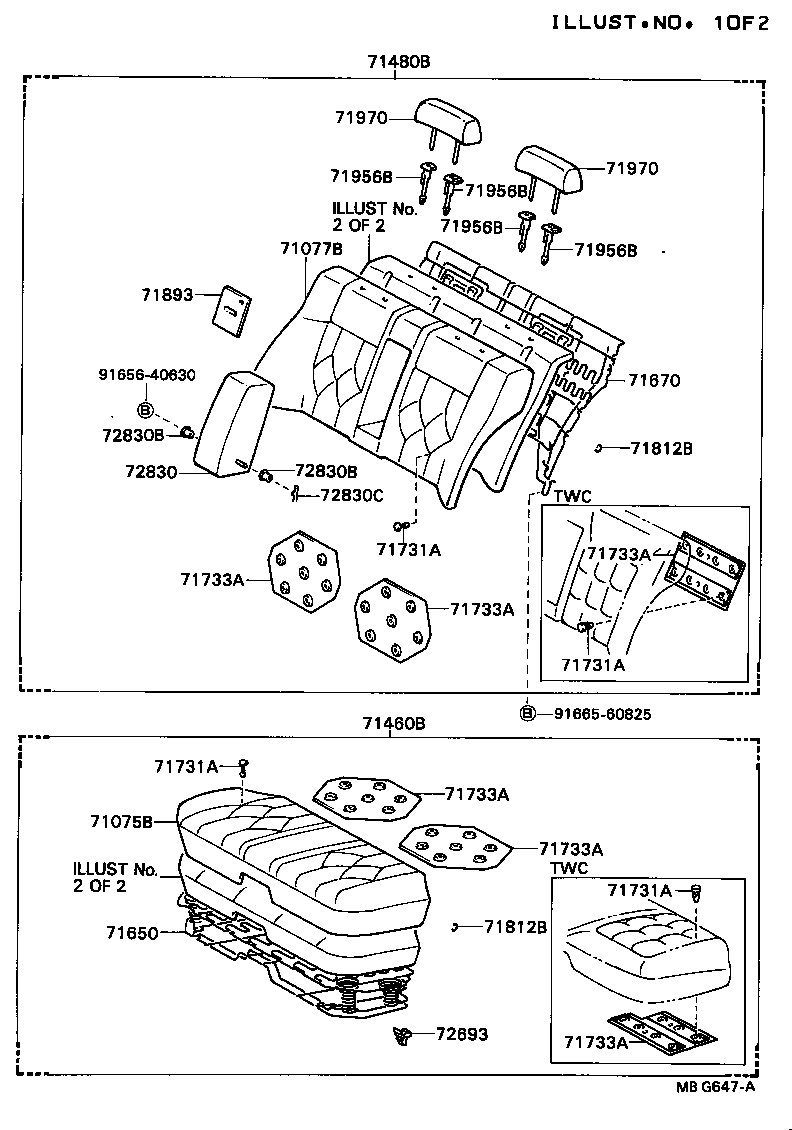

ILLUST NO. 1 OF 2(8408- )GX71,LX70,MX71,SX70,YX70,72
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-2274003 |
LX70,SX70,YX70..KYO GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71075-2273003 |
LX70,SX70,YX70..KYO,STD PF,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71075-2273004 |
LX70,SX70,YX72..KYO,STD PF,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71075-2274004 |
LX70,SX70,YX72..KYO GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2A01005 |
LX70..DSL TAXI SPEC,FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71077-2288003 |
LX70,SX70,YX70..KYO,STD PF,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71077-2A01003 |
LX70..DSL TAXI SPEC,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71077-2289003 |
LX70,SX70,YX70..KYO GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71077-2289004 |
LX70,SX70,YX72..KYO GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71077-2A01103 |
LX70..DSL TAXI SPEC,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71077-2288004 |
LX70,SX70,YX72..KYO,STD PF,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71077-2A01105 |
LX70..DSL TAXI SPEC,FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-2282003 |
LX70,SX70,YX70..KYO,STD PF,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71460-2283003 |
LX70,SX70,YX70..KYO GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71560-2209003 |
LX70..DSL TAXI SPEC,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71560-2209005 |
LX70..DSL TAXI SPEC,FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71460-2282004 |
LX70,SX70,YX72..KYO,STD PF,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71460-2283004 |
LX70,SX70,YX72..KYO GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2286003 |
LX70,SX70,YX70..KYO,STD PF,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71480-2288005 |
LX70..DSL TAXI SPEC,FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-2288003 |
LX70..DSL TAXI SPEC,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71480-2287003 |
LX70,SX70,YX70..KYO GRADE PACKAGE,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71480-2286004 |
LX70,SX70,YX72..KYO,STD PF,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71480-2288105 |
LX70..DSL TAXI SPEC,FB,BEIGE,BEIGE,TRIM4# |
1 | ||
| 71480-2288103 |
LX70..DSL TAXI SPEC,FB,GRAY,COOL GRAY,TRIM1# |
1 | ||
| 71480-2287004 |
LX70,SX70,YX72..KYO GRADE PACKAGE,FB,BLUE,DARK BLUE,TRIM8# |
1 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-22110 |
GX71,LX70,SX70,YX72..SED..(GL,GR,KYO,LG,LS,STD) |
1 | ||
| 71650-22110 |
GX71,LX70,MX71,SX70,YX70..SED |
1 | ||
| 71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT) | ||||
| 71670-22240 |
LX70,SX70,YX70,72..KYO,STD |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 71893 - GARNISH, REAR SEAT BACK SIDE, LOWER RH | ||||
| 71893-22010 |
GX71,LX70,MX71,SX70,YX70 |
1 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-2211003 |
LX70..DSL TAXI SPEC,GRAY,COOL GRAY,TRIM1# |
2 | ||
| 71940-2211005 |
LX70..DSL TAXI SPEC,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-2211003 |
LX70..DSL TAXI SPEC,GRAY,COOL GRAY,TRIM1# |
2 | ||
| 71940-2211005 |
LX70..DSL TAXI SPEC,BEIGE,BEIGE,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-32010 |
GX71,LX70,MX71,SX70,YX70,72 |
2 | ||
| Common parts | ||||
| 91656-40630 | ||||
| 91665-60825 | ||||

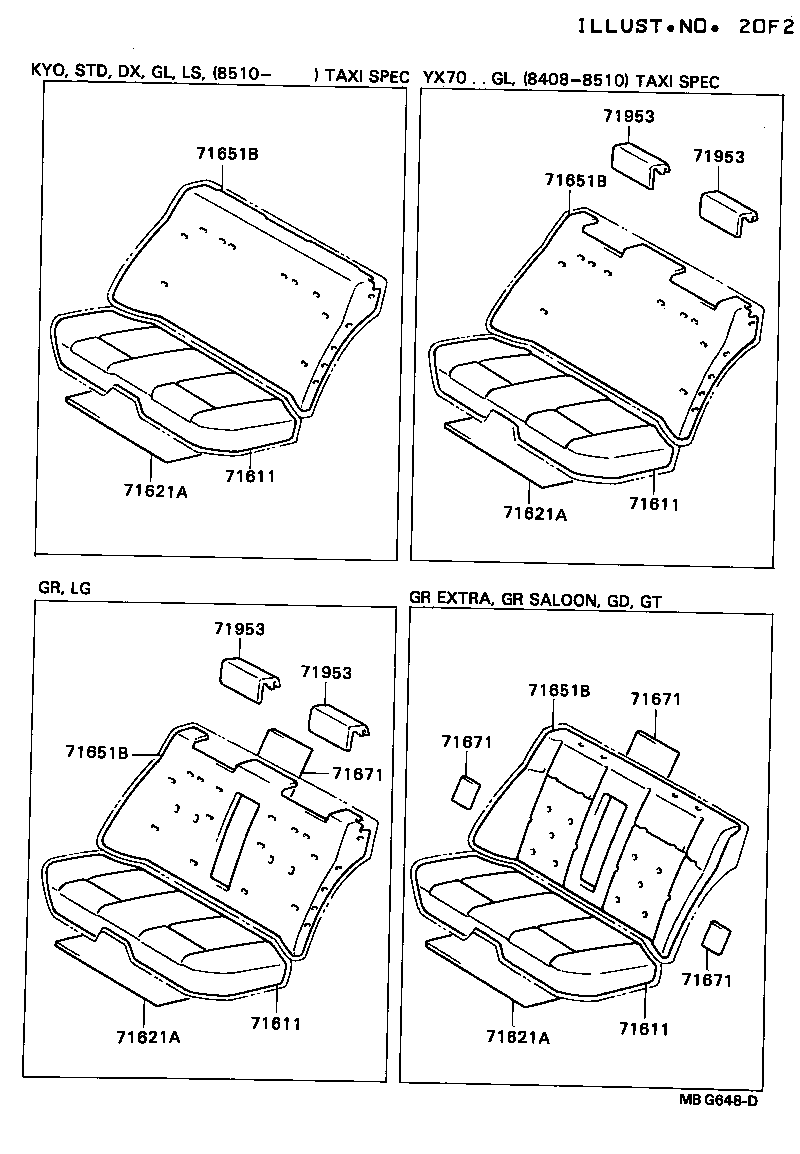

ILLUST NO. 2 OF 2(8408- )GX71,LX70,MX71,SX70,YX70,72
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-22150 |
GX71,LX70,SX70,YX70,72..GL,KYO,LS,STD |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-22150 |
GX71,LX70,SX70,YX70,72..GL,KYO,LS,STD |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-22150 |
GX71,LX70,SX70,YX70,72..GL,KYO,LS,STD |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-22150 |
GX71,LX70,SX70,YX70,72..GL,KYO,LS,STD |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-22060 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-22060 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-22060 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-22060 |
GX71,LX70,MX71,SX70,YX70,72 |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22130 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22131 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22120 |
LX70,SX70,YX70..KYO,STD |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22130 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22131 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22120 |
LX70,SX70,YX70..KYO,STD |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22130 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22131 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22120 |
LX70,SX70,YX70..KYO,STD |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22130 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22131 |
LX70..DSL TAXI SPEC |
1 | ||
| 71507-22120 |
LX70,SX70,YX70..KYO,STD |
1 | ||
