LX70-XEPNX (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 1605 88301 88302 88320 88330 88330A 88330A 88330A 88330B 88330C 88403 8889914120 9009907087 9009907114 9009935012 9331915008 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-22030

LX7#,YX7#

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14050

GX7#,LX7#,SX70,YX7#..CBR,DSL,EFI,LPG,TD

 1
88320 - COMPRESSOR ASSY, COOLER
88320-22330

LX7#

 1
88330 - CLUTCH ASSY, MAGNET
88410-22080

LX7#,YX7#

 1
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01108

GX7#,LX7#,SX70,YX7#

T=0.5

 1
90099-01350

GX7#,LX7#,SX70,YX7#

T=0.1

 1
90099-01351

GX7#,LX7#,SX70,YX7#

T=0.2

 1
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01108

GX7#,LX7#,SX70,YX7#

T=0.5

 1
90099-01350

GX7#,LX7#,SX70,YX7#

T=0.1

 1
90099-01351

GX7#,LX7#,SX70,YX7#

T=0.2

 1
88330A - WASHER (FOR MAGNET CLUTCH)
90099-01108

GX7#,LX7#,SX70,YX7#

T=0.5

 1
90099-01350

GX7#,LX7#,SX70,YX7#

T=0.1

 1
90099-01351

GX7#,LX7#,SX70,YX7#

T=0.2

 1
88330B - BEARING, MAGNET CLUTCH
90099-10133

GX7#,LX7#,MX71,SX70,YX7#

 1
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90099-07094

GX7#,LX7#,MX71,YX7#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-14030

GX7#,LX7#,MX71,SX70,YX7#

 1
Common parts
88899-14120
90099-07087
90099-07114
90099-35012
93319-15008
94110-40800
94511-00800
Linked diagrams
1605

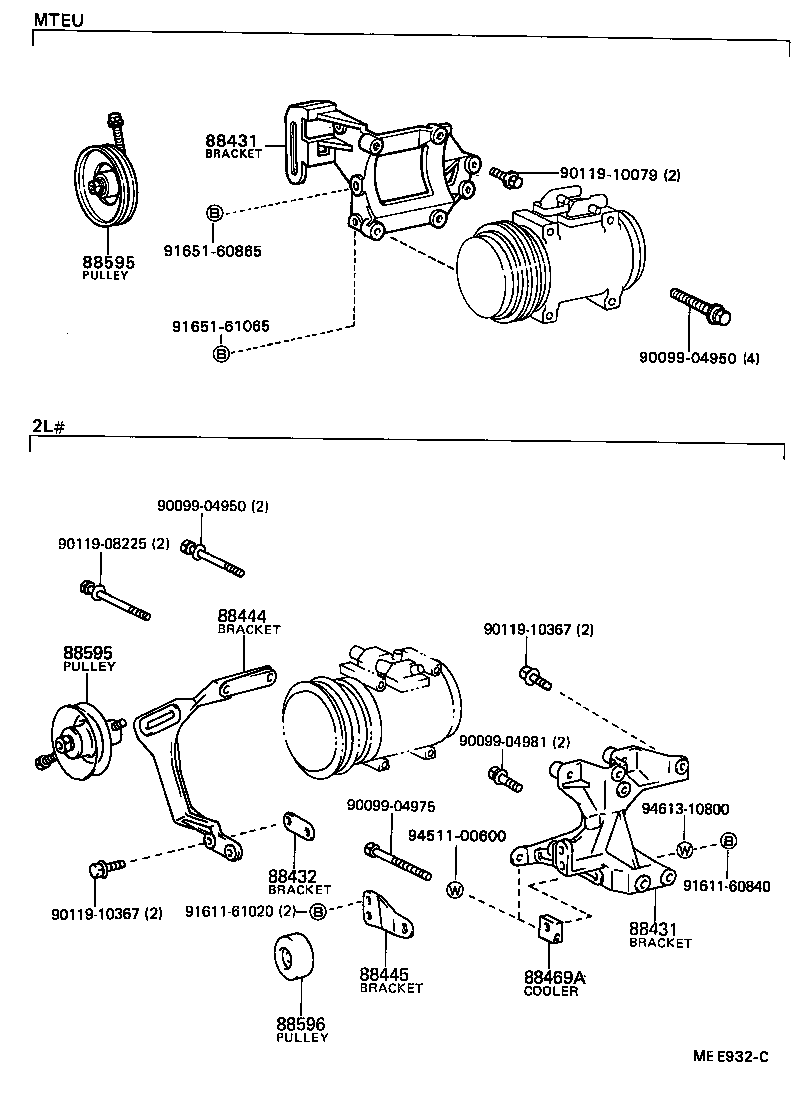

ILLUST NO. 2 OF 2(8408- )LX7#,MX71

Click highlighted areas on diagram

diagram 88431 88431 88432 88444 88445 88469A 88595 88595 88596 9009904950 9009904950 9009904975 9009904981 9011908225 9011910079 9011910367 9011910367 9161160840 9161161020 9165160865 9165161065 9451100600 9461310800
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26170

LX7#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-26170

LX7#

 1
88432 - BRACKET, COMPRESSOR MOUNTING, NO.2
88437-22050

LX7#

 1
88444 - BRACKET, IDLE PULLEY
88444-22060

LX7#

 1
88445 - BRACKET, IDLE PULLEY
88444-26070

LX7#

 1
88469A - COLLAR, ADJUSTING
88469-30280

LX7#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16010

LX7#,MX71

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-16010

LX7#,MX71

 1
88596 - PULLEY ASSY, IDLE, NO.2
88440-26070

LX7#

 1
Common parts
90099-04950
90099-04975
90099-04981
90119-08225
90119-10079
90119-10367
91611-60840
91611-61020
91651-60865
91651-61065
94511-00600
94613-10800
