LX70-XEPNX (1984)
Toyota Mark 2
Production
Aug 1984
-
Aug 1988
Engine
2LT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )LX7#

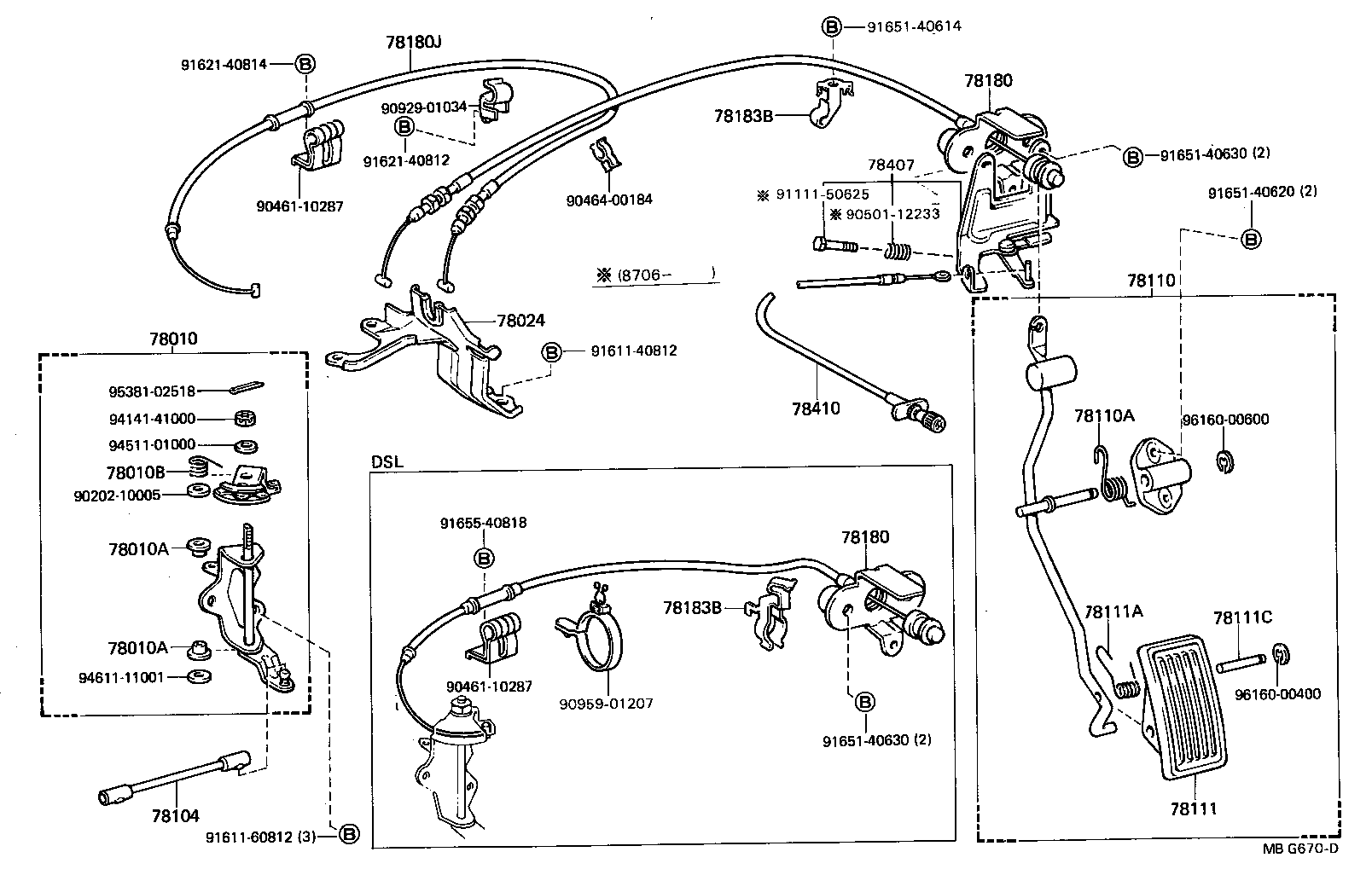

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010 - LINK, ACCELERATOR | ||||
| 78100-30490 |
LX70..TD |
1 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LX7# |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-10138 |
LX7# |
2 | ||
| 78010B - SPRING, TORSION (FOR ACCELERATOR LINK) | ||||
| 90508-16010 |
LX7# |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30041 |
LX70..TD |
1 | ||
| 78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2 | ||||
| 78104-30120 |
LX7# |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22230 |
GX7#,LX70,SX70,YX7#..ATM |
1 | ||
| 78120-22230 |
GX71,LX70..TD,TWT |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18060 |
GX7#,LX70,SX70,YX7#..ATM |
1 | ||
| 90508-18060 |
GX71,LX70..TD,TWT |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23088 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22570 |
LX70..TD |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22570 |
LX70..TD |
1 | ||
| 78180J - WIRE ASSY, ACCELERATOR, NO.2 | ||||
| 21960-54021 |
LX70..4FC |
1 | ||
| 21960-54020 |
LX70..4FC |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-22040 |
GX71,LX70,MX71,YX70..LPG,TBO,TD,TWC,TWT |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-22040 |
GX71,LX70,MX71,YX70..LPG,TBO,TD,TWC,TWT |
1 | ||
| 78407 - ARM SUB-ASSY, THROTTLE CONTROL | ||||
| 78407-22061 |
LX7# |
1 | ||
| 78407-22060 |
LX7# |
1 | ||
| 78410 - CABLE ASSY, THROTTLE CONTROL | ||||
| 78410-22070 |
LX7# |
1 | ||
| 78410-22071 |
LX7# |
1 | ||
| Common parts | ||||
| 90202-10005 | ||||
| 90461-10287 | ||||
| 90464-00184 | ||||
| 90501-12233 | ||||
| 90929-01034 | ||||
| 90959-01207 | ||||
| 91111-50625 | ||||
| 91611-40812 | ||||
| 91611-60812 | ||||
| 91621-40812 | ||||
| 91621-40814 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 91655-40818 | ||||
| 94141-41000 | ||||
| 94511-01000 | ||||
| 94611-11001 | ||||
| 95381-02518 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
