LX70-XEPNX (1984)
Toyota Mark 2
(8408- )4FC..TBO,TD,TWC

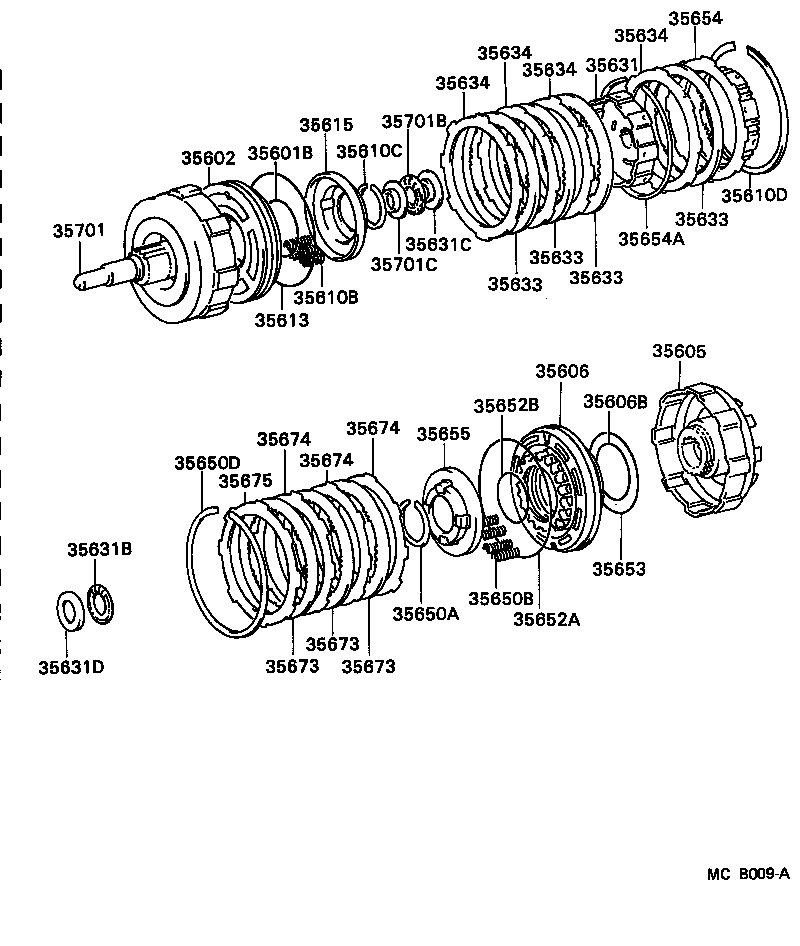

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35601B - RING, O (FOR FRONT CLUTCH DRUM) | ||||
| 90301-57188 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30042 |
GX7#,LX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC) |
1 | ||
| 35602-30042 |
GX7#,LX70,YX7#..ATM..(CBR,EFI,LPG,TD) |
1 | ||
| 35605 - DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR | ||||
| 35605-30021 |
GX7#,LX70,YX7#..ATM..(CBR,EFI,LPG,TD) |
1 | ||
| 35606 - PISTON SUB-ASSY, REAR CLUTCH | ||||
| 35606-30021 |
GX71,LX70,MX71..4FC..(TBO,TD,TWC) |
1 | ||
| 35606B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35610B - SPRING, COMPRESSION (FOR FRONT CLUTCH PISTON RETURN) | ||||
| 90501-11023 |
GX7#,LX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC) |
20 | ||
| 35610C - RING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING | ||||
| 90520-39261 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35610D - RING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH) | ||||
| 90521-99139 |
GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC) |
1 | ||
| 35613 - RING, CLUTCH PISTON OIL SEAL, OUTER | ||||
| 90301-99016 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35615 - SEAT, CLUTCH PISTON RETURN SPRING | ||||
| 35615-30020 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35631 - HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH) | ||||
| 35631-30050 |
LX70,MX71,YX7#..ATM |
1 | ||
| 35631B - BEARING, THRUST(FOR FRONT CLUTCH HUB) | ||||
| 90374-28014 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35631C - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT) | ||||
| 35789-22050 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35631D - RACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR) | ||||
| 35789-22020 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30030 |
GX7#,LX70,SX70..4FC..(CBR,EFI,TD) |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30030 |
GX7#,LX70,SX70..4FC..(CBR,EFI,TD) |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30030 |
GX7#,LX70,SX70..4FC..(CBR,EFI,TD) |
4 | ||
| 35633 - DISC, CLUTCH (FOR FRONT CLUTCH) | ||||
| 35677-30030 |
GX7#,LX70,SX70..4FC..(CBR,EFI,TD) |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
GX7#,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD,TWC) 厚さ=1.8,T=1.8 |
4 | ||
| 35634-30070 |
GX7#,LX70,MX71..4FC..(EFI,TBO,TD,TWC) 厚さ=2.0,T=2.0 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
GX7#,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD,TWC) 厚さ=1.8,T=1.8 |
4 | ||
| 35634-30070 |
GX7#,LX70,MX71..4FC..(EFI,TBO,TD,TWC) 厚さ=2.0,T=2.0 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
GX7#,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD,TWC) 厚さ=1.8,T=1.8 |
4 | ||
| 35634-30070 |
GX7#,LX70,MX71..4FC..(EFI,TBO,TD,TWC) 厚さ=2.0,T=2.0 |
4 | ||
| 35634 - PLATE, FRONT CLUTCH | ||||
| 35634-22040 |
GX7#,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD,TWC) 厚さ=1.8,T=1.8 |
4 | ||
| 35634-30070 |
GX7#,LX70,MX71..4FC..(EFI,TBO,TD,TWC) 厚さ=2.0,T=2.0 |
4 | ||
| 35650A - RING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING) | ||||
| 90520-39261 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35650B - SPRING, COMPRESSION (FOR REAR CLUTCH PISTON RETURN) | ||||
| 90501-11023 |
GX71,LX70,MX71..4FC..(TBO,TD,TWC) |
18 | ||
| 35650D - RING, HOLE SNAP (FOR REAR MULTIPLE DISC CLUTCH) | ||||
| 90521-99139 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35652A - RING (FOR REAR CLUTCH OUTER) | ||||
| 90301-99016 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35652B - RING (FOR REAR CLUTCH PISTON INNER) | ||||
| 90301-57188 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35653 - RING, REAR CLUTCH OIL SEAL, OUTER | ||||
| 90301-84184 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35654 - HUB, REAR CLUTCH | ||||
| 35654-30010 |
GX7#,LX70,MX71,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35654A - RING, HOLE SNAP (FOR REAR CLUTCH HUB) | ||||
| 90521-99146 |
GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC) |
1 | ||
| 35655 - SEAT, REAR CLUTCH PISTON RETURN SPRING | ||||
| 35615-30020 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-30030 |
GX7#,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD,TWC) |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-30030 |
GX7#,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD,TWC) |
3 | ||
| 35673 - DISC, REAR CLUTCH | ||||
| 35677-30030 |
GX7#,LX70,MX71,SX70..4FC..(CBR,EFI,TBO,TD,TWC) |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-30070 |
GX71,LX70,MX71,SX70..4FC..(CBR,TBO,TD,TWC) T=2.0 |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-30070 |
GX71,LX70,MX71,SX70..4FC..(CBR,TBO,TD,TWC) T=2.0 |
3 | ||
| 35674 - PLATE, REAR CLUTCH | ||||
| 35634-30070 |
GX71,LX70,MX71,SX70..4FC..(CBR,TBO,TD,TWC) T=2.0 |
3 | ||
| 35675 - FLANGE, REAR CLUTCH | ||||
| 35675-30030 |
GX71,LX70,MX71,SX70..4FC..(CBR,TBO,TD,TWC) 厚さ=3.6,T=3.4 |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-30042 |
GX7#,LX70..4FC..(EFI,TD,TWC) |
1 | ||
| 35701-30042 |
GX7#,LX70..4FC..(EFI,TD) |
1 | ||
| 35701B - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR) | ||||
| 90374-23012 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-22010 |
GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS) |
1 | ||
