LX70-XEPNX (1984)
Toyota Mark 2
Production
Aug 1984
-
Aug 1988
Engine
2LT
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

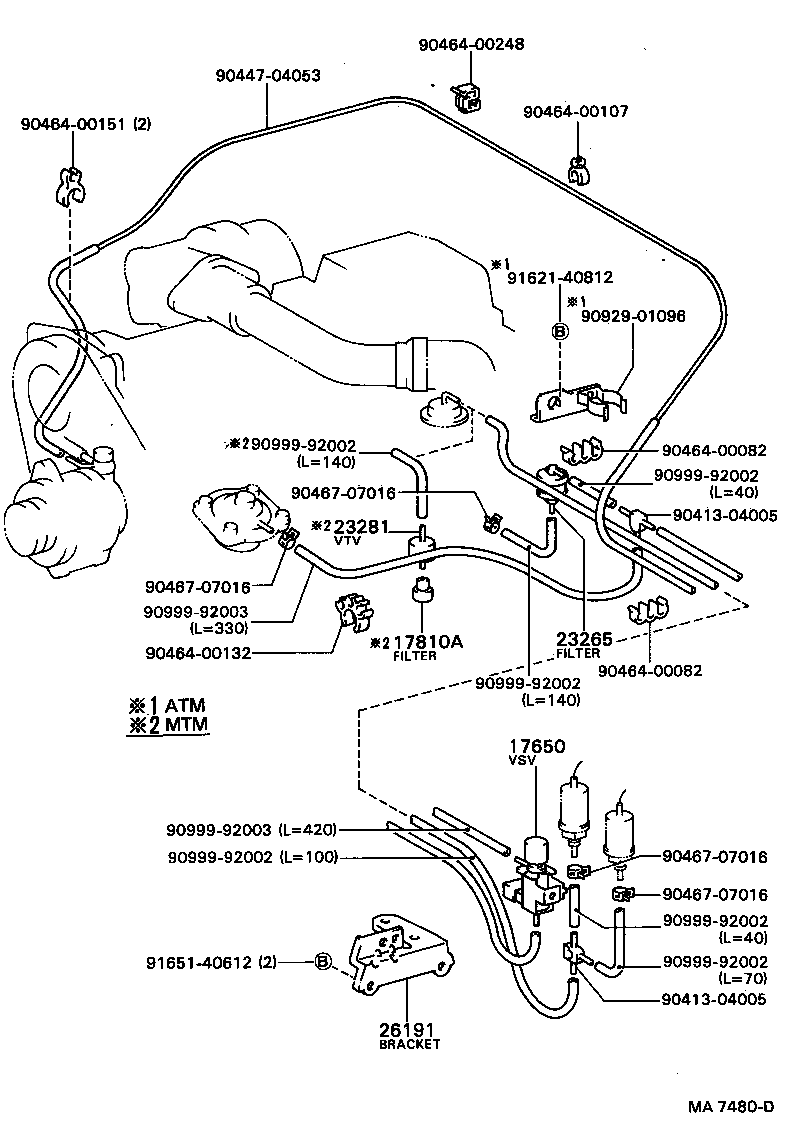

(8408- )2LT ; (8709- )2LT..4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 89570-30100 |
2LT..LX70 |
1 | ||
| 89570-30100 |
2LT..LX70..4FC |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11009 |
2LT..LX70..4FC |
2 | ||
| 90917-11009 |
2LT..LX70 |
2 | ||
| 26191 - BRACKET, INTAKE AIR CONTROL VALVE | ||||
| 26191-54060 |
2LT..LX70 |
1 | ||
| 26191-54060 |
2LT..LX70..4FC |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90447-04053 | ||||
| 90464-00082 | ||||
| 90464-00107 | ||||
| 90464-00132 | ||||
| 90464-00151 | ||||
| 90464-00248 | ||||
| 90467-07016 | ||||
| 90929-01096 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91621-40812 | ||||
| 91651-40612 | ||||
(8408- )2L#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||

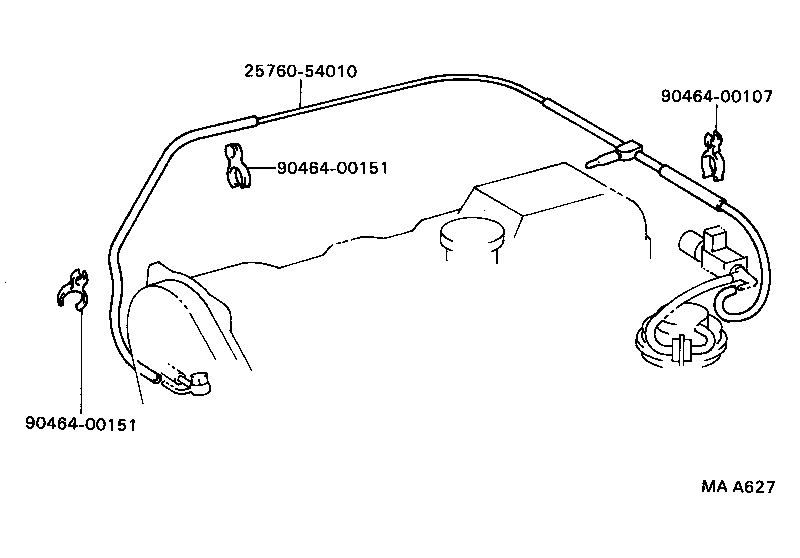

(8709- )2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 25760-54010 | ||||
| 90464-00107 | ||||
| 90464-00151 | ||||
