LX70-XEPEX (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

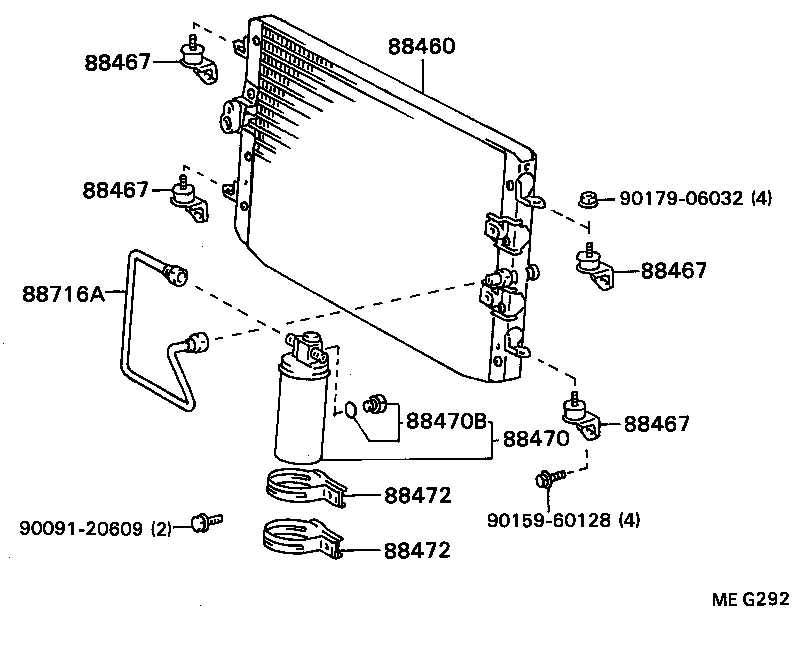

ILLUST NO. 1 OF 2(8408-8602)LX7# ; (8408- )YX7#

Click highlighted areas on diagram

diagram 88460 88467 88467 88467 88467 88470 88470B 88472 88472 88716A 9009120609 9015960128 9017906032
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-22281

LX7#,YX7#

 1
88460-22320

LX7#

 1
88460-22280

LX7#,YX7#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX7#,LX7#,MX71,SX70,YX7#

 1
88470-12070

GX7#,LX7#,SX70,YX76

 1
88470B - BOLT, FUSE
88475-12020

GX7#,LX7#,MX71,SX70,YX7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX7#,LX7#,MX71,SX70,YX7#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX7#,LX7#,MX71,SX70,YX7#

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22450

LX7#,YX7#

 1
88716-22640

LX7#

 1
88716-22641

LX7#

 1
Common parts
90091-20609
90159-60128
90179-06032

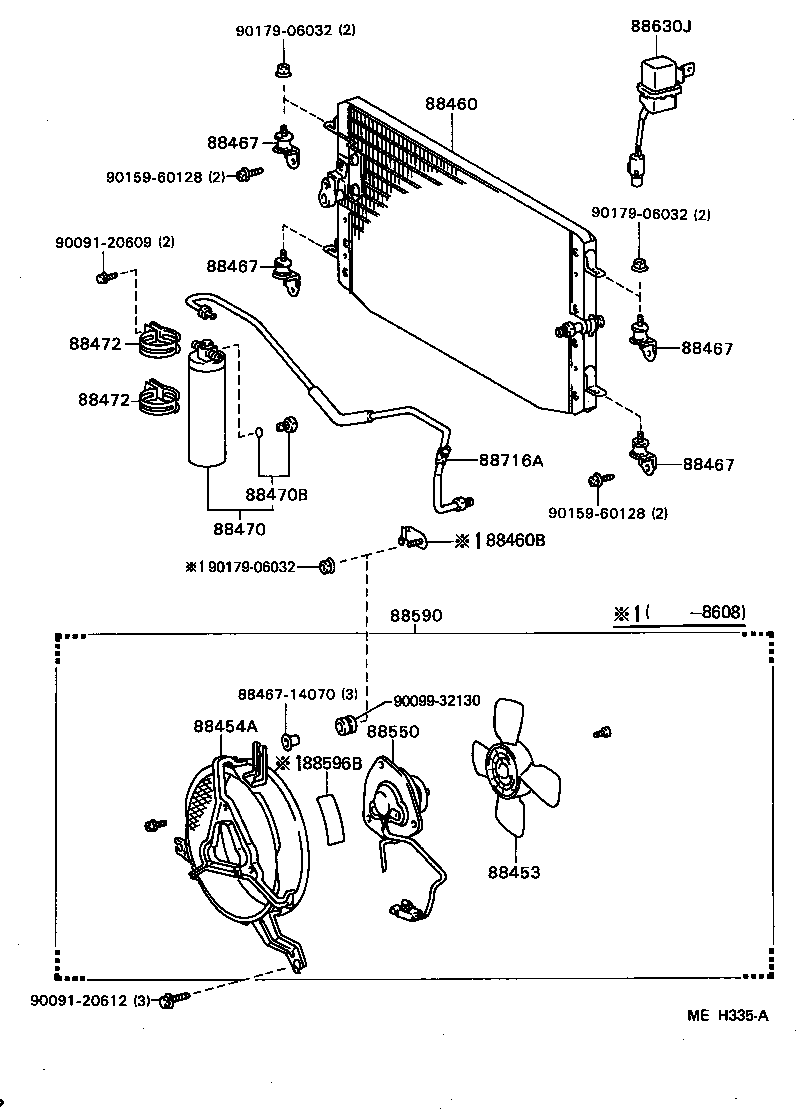

ILLUST NO. 1 OF 2(8602- )LX7#

Click highlighted areas on diagram

diagram 88453 88454A 88460 88460B 88467 88467 88467 88467 8846714070 88470 88470B 88472 88472 88550 88590 88596B 88630J 88716A 9009120609 9009120612 9009932130 9015960128 9015960128 9017906032 9017906032 9017906032
Part # Description Qty Price
88453 - FAN, COOLING (FOR CONDENSER)
88453-28010

LX7#

 1
88454A - SHROUD, FAN
88454-22050

LX7#

 1
88454-22030

LX7#

 1
88460 - CONDENSER ASSY, COOLER
88460-22281

LX7#,YX7#

 1
88460-22320

LX7#

 1
88460-22280

LX7#,YX7#

 1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-22330

LX7#

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-22060

GX7#,LX7#,MX71,SX70,YX7#

 4
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX7#,LX7#,MX71,SX70,YX7#

 1
88470-12070

GX7#,LX7#,SX70,YX76

 1
88470B - BOLT, FUSE
88475-12020

GX7#,LX7#,MX71,SX70,YX7#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX7#,LX7#,MX71,SX70,YX7#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX7#,LX7#,MX71,SX70,YX7#

 2
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12090

LX7#

 1
88590 - BLOWER ASSY, W/SHROUD
88590-22010

LX7#

 1
88590-22030

LX7#

 1
88596B - PLATE, CAUTION, NO.1
88596-14010

LX7#

 1
88630J - RELAY ASSY (FOR CONDENSER MOTOR)
88630-14020

LX7#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22450

LX7#,YX7#

 1
88716-22640

LX7#

 1
88716-22641

LX7#

 1
Common parts
88467-14070
90091-20609
90091-20612
90099-32130
90159-60128
90179-06032

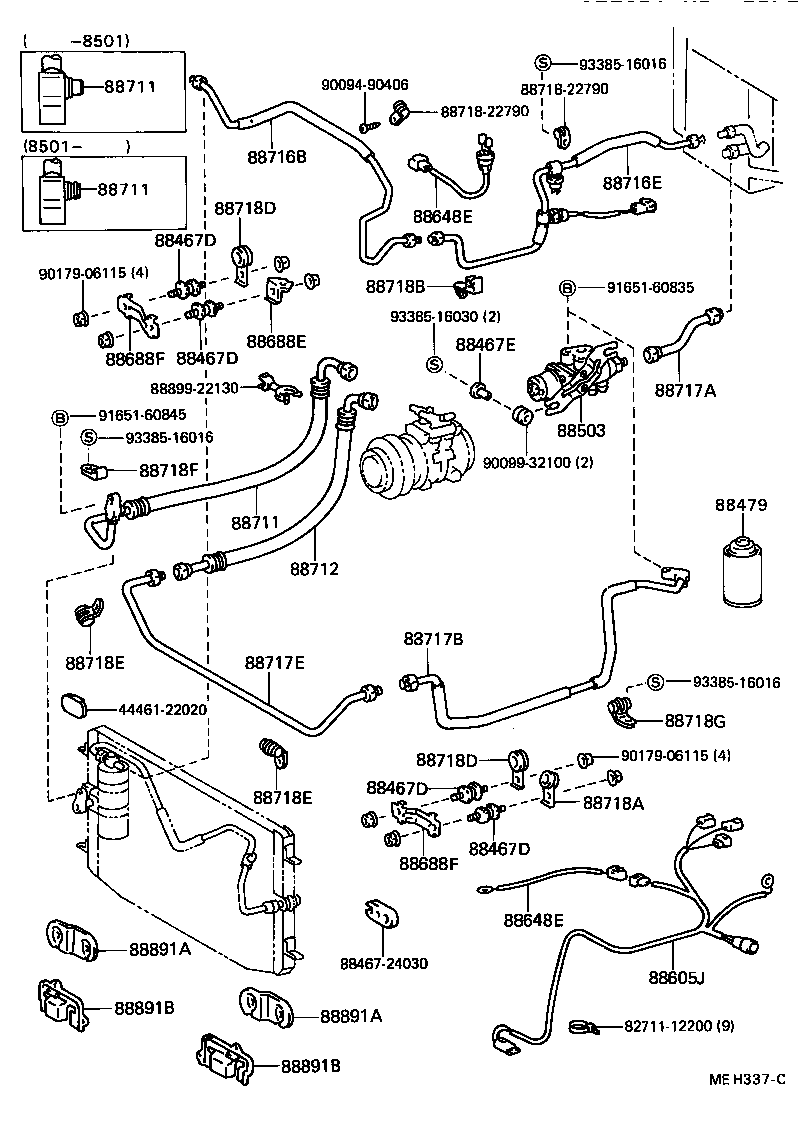

ILLUST NO. 2 OF 2(8602- )LX7#..DX,GL,GR

Click highlighted areas on diagram

diagram 4446122020 8271112200 8846724030 88467D 88467D 88467D 88467D 88467E 88479 88503 88605J 88648E 88648E 88688E 88688F 88688F 88711 88711 88711 88712 88716B 88716E 88717A 88717B 88717E 8871822790 8871822790 88718A 88718B 88718D 88718D 88718E 88718E 88718F 88718G 88891A 88891A 88891B 88891B 8889922130 9009490406 9009932100 9017906115 9017906115 9165160835 9165160845 9338516016 9338516016 9338516016 9338516030
Part # Description Qty Price
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467E - CUSHION, PRESSURE REGULATOR
88467-14050

SX70;GX7#,LX7#,YX76..DX,GL,GR,LG,LS

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GX7#,LX7#,MX71,SX70,YX7#

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-22160

SX70;GX7#,LX7#,MX71..DX,GD,GL,GR,LG,LS

 1
88503-22160

SX70;GX7#,LX7#,YX76..DX,GL,GR,LG,LS

 1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-22520

LX7#

 1
88648E - WIRING, COOLER
88648-22150

LX7#

NO.1

 1
88648-22100

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

NO.2

 1
88648E - WIRING, COOLER
88648-22150

LX7#

NO.1

 1
88648-22100

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

NO.2

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-22210

LX7#,YX7#

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

LX7#,YX7#

 2
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

LX7#,YX7#

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22370

LX7#

 1
88711-22371

LX7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22370

LX7#

 1
88711-22371

LX7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22370

LX7#

 1
88711-22371

LX7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22500

LX7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22650

LX7#

 1
88716-22530

GX7#,LX7#,SX70,YX7#

 1
88716-22651

LX7#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-22050

GX7#,LX7#,SX70,YX76..DX,GL,GR,LG,LS,STD

 1
88710-22180

LX7#..DX,GL,GR

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22210

SX70;GX7#,LX7#,MX71,YX76..DX,GD,GL,GR,GT,LG,LS

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-22221

LX7#,YX76..DX,GL,GR

 1
88717-22220

LX7#,YX76..DX,GL,GR

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-22330

LX7#

 1
88717-22230

LX7#,YX7#

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-22730

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-22650

GX7#,LX7#,MX71,SX70,YX7#

 1
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-22780

LX7#,YX7#

 2
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-22780

LX7#,YX7#

 2
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-22690

LX7#,YX7#

 2
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-22690

LX7#,YX7#

 2
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-14450

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-22740

LX7#,YX72,76

 1
88891A - PACKING A (FOR COOLER)
88892-22110

GX7#,LX7#,MX71,SX70,YX7#

 2
88892-22110

GX7#,LX7#,SX70,YX72

 2
88891A - PACKING A (FOR COOLER)
88892-22110

GX7#,LX7#,MX71,SX70,YX7#

 2
88892-22110

GX7#,LX7#,SX70,YX72

 2
88891B - PACKING B (FOR COOLER)
53286-22010

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

LH

 1
53285-22020

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

RH

 1
88891B - PACKING B (FOR COOLER)
53286-22010

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

LH

 1
53285-22020

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

RH

 1
Common parts
44461-22020
82711-12200
88467-24030
88718-22790
88899-22130
90094-90406
90099-32100
90179-06115
91651-60835
91651-60845
93385-16016
93385-16030

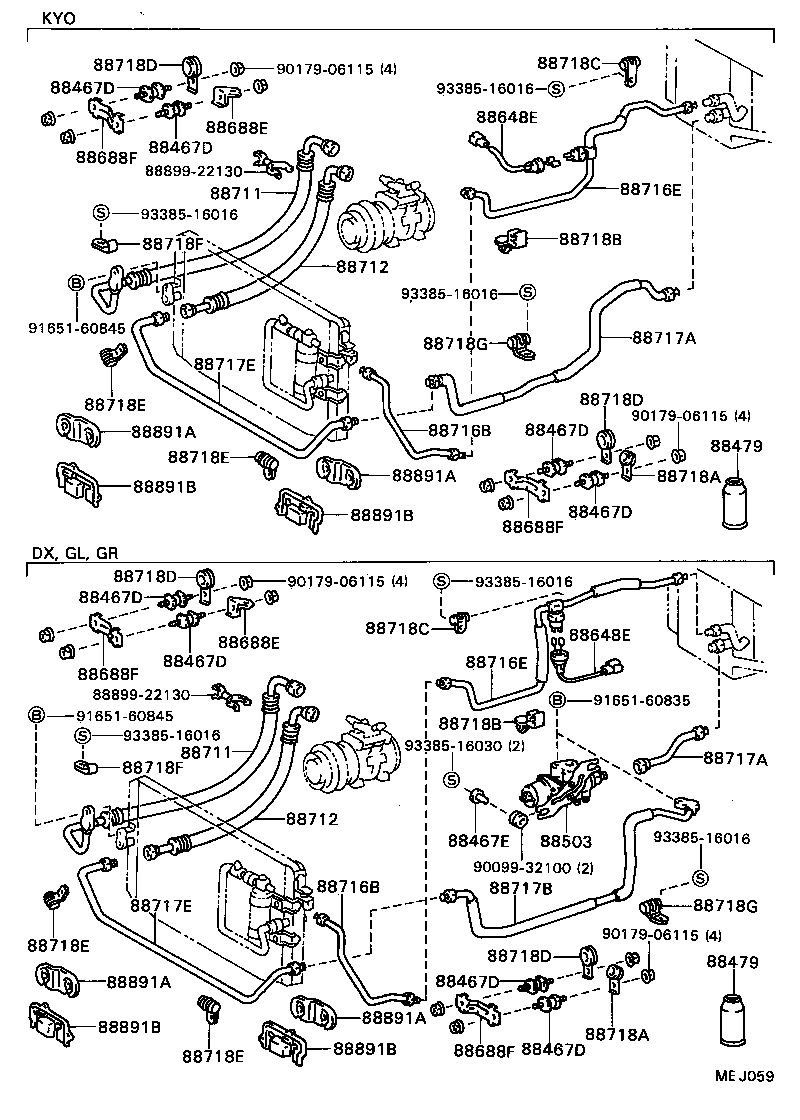

ILLUST NO. 2 OF 2(8408-8602)LX7#

Click highlighted areas on diagram

diagram 88467D 88467D 88467D 88467D 88467D 88467D 88467D 88467D 88467E 88479 88479 88503 88648E 88648E 88688E 88688E 88688F 88688F 88688F 88688F 88711 88711 88712 88712 88716B 88716B 88716E 88716E 88717A 88717A 88717B 88717E 88717E 88718A 88718A 88718B 88718B 88718C 88718C 88718D 88718D 88718D 88718D 88718E 88718E 88718E 88718E 88718F 88718F 88718G 88718G 88891A 88891A 88891A 88891A 88891B 88891B 88891B 88891B 8889922130 8889922130 9009932100 9017906115 9017906115 9017906115 9017906115 9165160835 9165160845 9165160845 9338516016 9338516016 9338516016 9338516016 9338516016 9338516016 9338516030
Part # Description Qty Price
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467D - CUSHION, COOLER REFRIGERANT PIPE CLAMP
88467-14040

LX7#,YX7#

 4
88467E - CUSHION, PRESSURE REGULATOR
88467-14050

SX70;GX7#,LX7#,YX76..DX,GL,GR,LG,LS

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GX7#,LX7#,MX71,SX70,YX7#

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GX7#,LX7#,MX71,SX70,YX7#

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-22160

SX70;GX7#,LX7#,MX71..DX,GD,GL,GR,LG,LS

 1
88503-22160

SX70;GX7#,LX7#,YX76..DX,GL,GR,LG,LS

 1
88648E - WIRING, COOLER
88648-22150

LX7#

NO.1

 1
88648-22100

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

NO.2

 1
88648E - WIRING, COOLER
88648-22150

LX7#

NO.1

 1
88648-22100

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

NO.2

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-22210

LX7#,YX7#

 1
88688E - BRACKET, COOLER REFRIGERANT HOSE, NO.1
88688-22210

LX7#,YX7#

 1
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

LX7#,YX7#

 2
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

LX7#,YX7#

 2
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

LX7#,YX7#

 2
88688F - BRACKET, COOLER REFRIGERANT HOSE, NO.2
88688-22190

LX7#,YX7#

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22370

LX7#

 1
88711-22371

LX7#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22370

LX7#

 1
88711-22371

LX7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22500

LX7#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22500

LX7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22650

LX7#

 1
88716-22530

GX7#,LX7#,SX70,YX7#

 1
88716-22651

LX7#

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22650

LX7#

 1
88716-22530

GX7#,LX7#,SX70,YX7#

 1
88716-22651

LX7#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-22050

GX7#,LX7#,SX70,YX76..DX,GL,GR,LG,LS,STD

 1
88710-22180

LX7#..DX,GL,GR

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88710-22050

GX7#,LX7#,SX70,YX76..DX,GL,GR,LG,LS,STD

 1
88710-22180

LX7#..DX,GL,GR

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22210

SX70;GX7#,LX7#,MX71,YX76..DX,GD,GL,GR,GT,LG,LS

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22210

SX70;GX7#,LX7#,MX71,YX76..DX,GD,GL,GR,GT,LG,LS

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-22221

LX7#,YX76..DX,GL,GR

 1
88717-22220

LX7#,YX76..DX,GL,GR

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-22330

LX7#

 1
88717-22230

LX7#,YX7#

 1
88717E - PIPE, COOLER REFRIGERANT SUCTION, E
88717-22330

LX7#

 1
88717-22230

LX7#,YX7#

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-22730

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718-22730

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-22650

GX7#,LX7#,MX71,SX70,YX7#

 1
88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718-22650

GX7#,LX7#,MX71,SX70,YX7#

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-22790

LX7#..DX,GL,GR

 1
88718-12280

GX7#,LX7#,YX76..DX,GL,GR,GT,LG,LS

 1
88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718-22790

LX7#..DX,GL,GR

 1
88718-12280

GX7#,LX7#,YX76..DX,GL,GR,GT,LG,LS

 1
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-22780

LX7#,YX7#

 2
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-22780

LX7#,YX7#

 2
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-22780

LX7#,YX7#

 2
88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE)
88718-22780

LX7#,YX7#

 2
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-22690

LX7#,YX7#

 2
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-22690

LX7#,YX7#

 2
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-22690

LX7#,YX7#

 2
88718E - CLAMP, NO.5(FOR COOLER REFRIGERANT PIPE)
88718-22690

LX7#,YX7#

 2
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-14450

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE)
88718-14450

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-22740

LX7#,YX72,76

 1
88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718-22740

LX7#,YX72,76

 1
88891A - PACKING A (FOR COOLER)
88892-22110

GX7#,LX7#,MX71,SX70,YX7#

 2
88892-22110

GX7#,LX7#,SX70,YX72

 2
88891A - PACKING A (FOR COOLER)
88892-22110

GX7#,LX7#,MX71,SX70,YX7#

 2
88892-22110

GX7#,LX7#,SX70,YX72

 2
88891A - PACKING A (FOR COOLER)
88892-22110

GX7#,LX7#,MX71,SX70,YX7#

 2
88892-22110

GX7#,LX7#,SX70,YX72

 2
88891A - PACKING A (FOR COOLER)
88892-22110

GX7#,LX7#,MX71,SX70,YX7#

 2
88892-22110

GX7#,LX7#,SX70,YX72

 2
88891B - PACKING B (FOR COOLER)
53286-22010

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

LH

 1
53285-22020

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

RH

 1
88891B - PACKING B (FOR COOLER)
53286-22010

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

LH

 1
53285-22020

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

RH

 1
88891B - PACKING B (FOR COOLER)
53286-22010

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

LH

 1
53285-22020

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

RH

 1
88891B - PACKING B (FOR COOLER)
53286-22010

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

LH

 1
53285-22020

GX7#,LX7#,SX70,YX72..DX,GL,GR,KYO,LG,LS,STD

RH

 1
Common parts
88899-22130
90099-32100
90179-06115
91651-60835
91651-60845
93385-16016
93385-16030
