LX70-XEMNX (1984)
Toyota Mark 2
Production
Aug 1984
-
Aug 1988
Engine
2LT
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8408- )

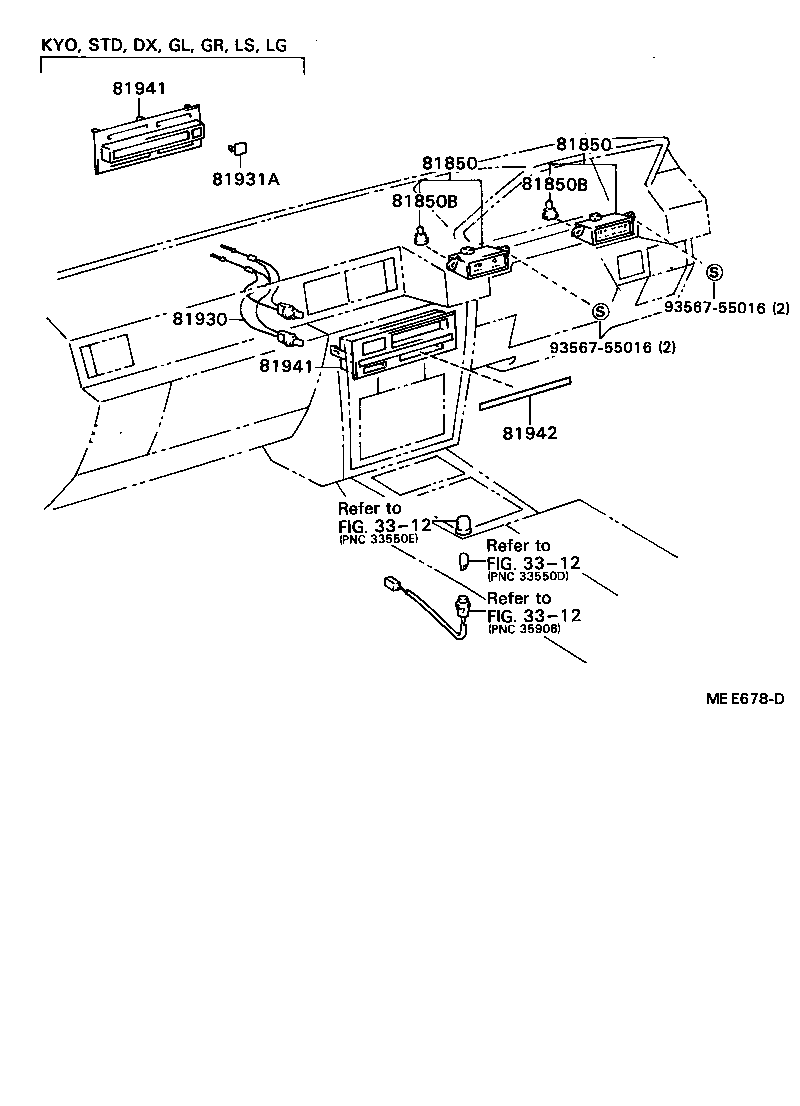

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-22310 |
LX7# INNER |
1 | ||
| 81850-22290 |
LX7#..DX,GL,KYO OUTER |
1 | ||
| 81850-22380 |
LX7#..DX,GL,KYO OUTER |
1 | ||
| 81850-22140 |
LX7# INNER |
1 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-22310 |
LX7# INNER |
1 | ||
| 81850-22290 |
LX7#..DX,GL,KYO OUTER |
1 | ||
| 81850-22380 |
LX7#..DX,GL,KYO OUTER |
1 | ||
| 81850-22140 |
LX7# INNER |
1 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 84999-50140 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,12V 1.4W,JEKO |
5 | ||
| 84999-30020 |
GX7#,LX7#,MX71,SX70,YX7# 12V 1.4W,12V 1.4W,YAZAKI |
5 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 84999-50140 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,12V 1.4W,JEKO |
5 | ||
| 84999-30020 |
GX7#,LX7#,MX71,SX70,YX7# 12V 1.4W,12V 1.4W,YAZAKI |
5 | ||
| 81931A - COVER, COOLER SWITCH HOLE | ||||
| 55538-22040 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| 55538-22040 |
LX7#,SX70,YX7#..DX,GL,KYO,STD |
1 | ||
| 81941 - PLATE, HEATER CONTROL NAME | ||||
| 55519-22161 |
LX7#,SX70,YX7#..DX,GL,KYO,STD |
1 | ||
| 55519-22160 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| 81941 - PLATE, HEATER CONTROL NAME | ||||
| 55519-22161 |
LX7#,SX70,YX7#..DX,GL,KYO,STD |
1 | ||
| 55519-22160 |
GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD |
1 | ||
| Common parts | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 3312 | ||||
