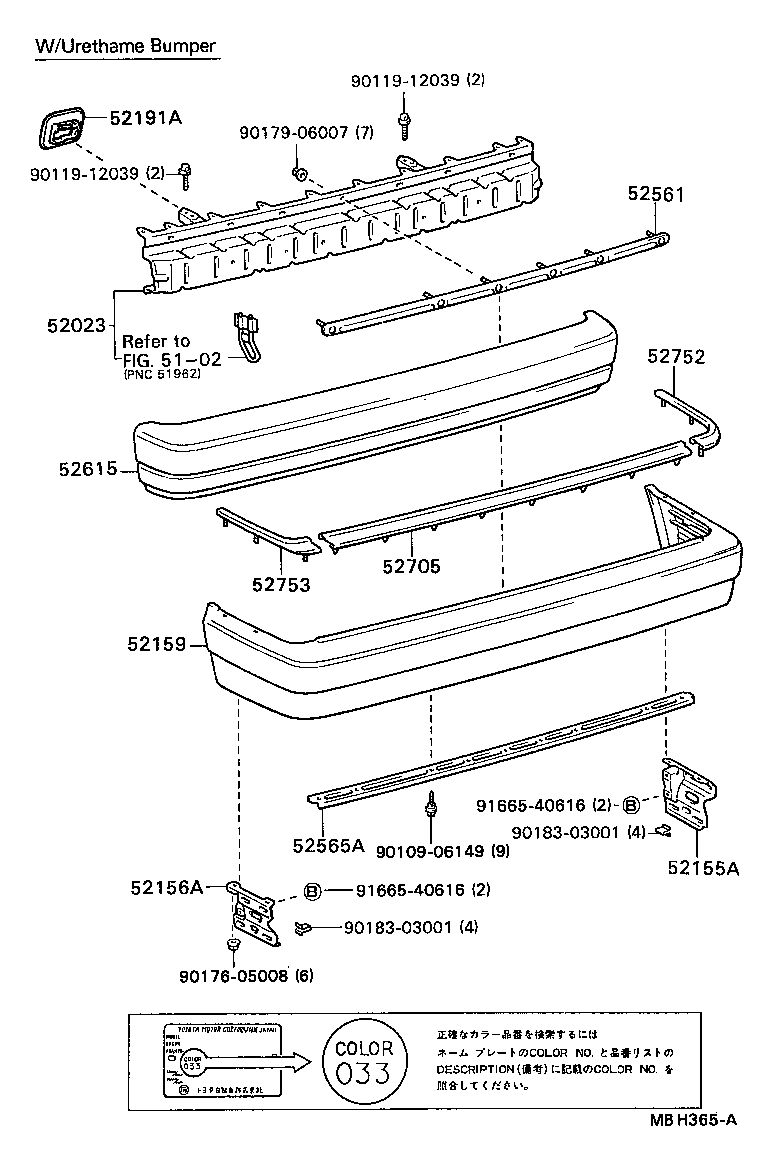

LX70-XEMNX (1984)
Toyota Mark 2
(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22130 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52023-22100 |
LX70 TAXI SPEC |
1 | ||
| 52023-22130 |
LX70 TAXI SPEC |
1 | ||
| 52023-22130 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22090 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52155-22090 |
LX70 TAXI SPEC |
1 | ||
| 52155-22091 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52155-22100 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22120 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52156-22110 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52156-22110 |
LX70 TAXI SPEC |
1 | ||
| 52156-22111 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-2215003 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS SUPER SILVER-M,SUPER SILVER M,150 |
1 | ||
| 52159-22140 |
LX70 TAXI SPEC |
1 | ||
| 52159-2215004 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS DARK BLUE-M,DARK BLUE METALLIC,8C1 |
1 | ||
| 52159-2215008 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52159-2215005 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS BEIGE-M,BEIGE METALLIC,4E6 |
1 | ||
| 52159-2222002 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,RED MICA,DARK RED MICA,3H3 |
1 | ||
| 52159-22160 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52159-2222008 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/*UB,SUPER WHITE 2,SUPER WHITE 2,040 |
1 | ||
| 52159-2222003 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,SUPER SILVER-M 2,SUPER SILVER 2,166 |
1 | ||
| 52159-2222004 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,BLUE MICA,BLUE MICA,8E3 |
1 | ||
| 52159-2222005 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-22050 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52561-22050 |
LX70 TAXI SPEC |
1 | ||
| 52561-22050 |
GX7#,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
LX7#,SX70,YX7#..DX,GL,KYO,STD |
4 | ||
| 52565-22030 |
GX7#,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52565-22030 |
LX70 TAXI SPEC |
1 | ||
| 52565-22030 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-22060 |
LX70 TAXI SPEC |
1 | ||
| 52615-22060 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52615-22080 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52751-22080 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52751-22070 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52751-22070 |
LX70 TAXI SPEC |
1 | ||
| 52751-22060 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52752 - MOULDING, REAR BUMPER SIDE, RH | ||||
| 52706-22010 |
LX70 TAXI SPEC |
1 | ||
| 52706-22030 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52706-22040 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52706-22010 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52753 - MOULDING, REAR BUMPER SIDE, LH | ||||
| 52707-22040 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52707-22010 |
LX70 TAXI SPEC |
1 | ||
| 52707-22030 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52707-22010 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| Common parts | ||||
| 90109-06149 | ||||
| 90119-12039 | ||||
| 90176-05008 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5102 | ||||

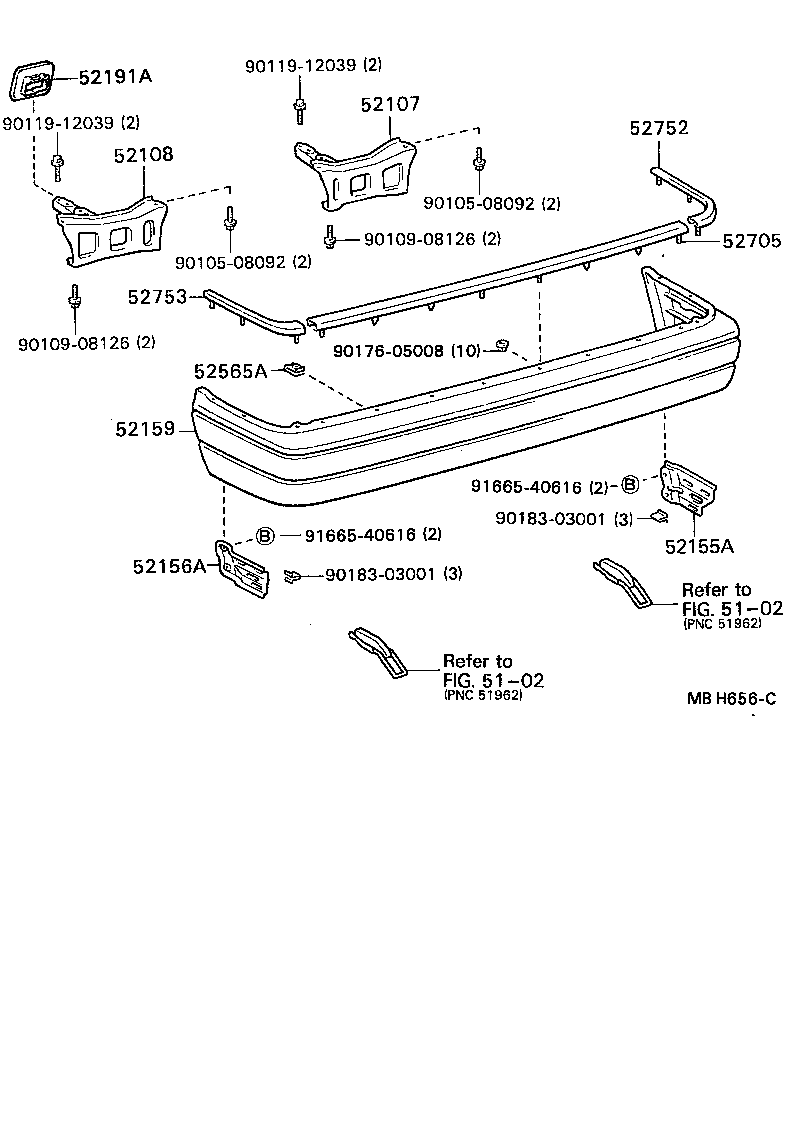

(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-22060 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-22080 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22090 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52155-22090 |
LX70 TAXI SPEC |
1 | ||
| 52155-22091 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52155-22100 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22120 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52156-22110 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52156-22110 |
LX70 TAXI SPEC |
1 | ||
| 52156-22111 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-2215003 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS SUPER SILVER-M,SUPER SILVER M,150 |
1 | ||
| 52159-22140 |
LX70 TAXI SPEC |
1 | ||
| 52159-2215004 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS DARK BLUE-M,DARK BLUE METALLIC,8C1 |
1 | ||
| 52159-2215008 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS SUPER WHITE,SUPER WHITE,040 |
1 | ||
| 52159-2215005 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS BEIGE-M,BEIGE METALLIC,4E6 |
1 | ||
| 52159-2222002 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,RED MICA,DARK RED MICA,3H3 |
1 | ||
| 52159-22160 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52159-2222008 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/*UB,SUPER WHITE 2,SUPER WHITE 2,040 |
1 | ||
| 52159-2222003 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,SUPER SILVER-M 2,SUPER SILVER 2,166 |
1 | ||
| 52159-2222004 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,BLUE MICA,BLUE MICA,8E3 |
1 | ||
| 52159-2222005 |
GX71,LX70,SX70..CBR,DSL,EFI,TD,TWC W/*UB,BEIGE-M,BEIGE METALLIC,4G8 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-12040 |
LX7#,SX70,YX7#..DX,GL,KYO,STD |
4 | ||
| 52565-22030 |
GX7#,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52565-22030 |
LX70 TAXI SPEC |
1 | ||
| 52565-22030 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52751-22080 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52751-22070 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52751-22070 |
LX70 TAXI SPEC |
1 | ||
| 52751-22060 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52752 - MOULDING, REAR BUMPER SIDE, RH | ||||
| 52706-22010 |
LX70 TAXI SPEC |
1 | ||
| 52706-22030 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52706-22040 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52706-22010 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| 52753 - MOULDING, REAR BUMPER SIDE, LH | ||||
| 52707-22040 |
GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS W/URETHANE BUMPER |
1 | ||
| 52707-22010 |
LX70 TAXI SPEC |
1 | ||
| 52707-22030 |
LX70,SX70,YX70,72..GL,KYO,STD |
1 | ||
| 52707-22010 |
LX70,SX70..GL W/URETHANE BUMPER |
1 | ||
| Common parts | ||||
| 90105-08092 | ||||
| 90109-08126 | ||||
| 90119-12039 | ||||
| 90176-05008 | ||||
| 90183-03001 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
