LX70-XEMNX (1984)
Toyota Mark 2
(8408- )2L#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54050 |
2L..LX7# |
1 | ||
| 16261-54040 |
2LT..LX70 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-54050 |
2L..LX7# |
1 | ||
| 16261-54040 |
2LT..LX70 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-52015 |
2L#..LX7# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54030 |
2L#..LX7# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-54030 |
2L#..LX7# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15004 |
2L#..LX7# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-54030 |
2LT..LX70..5F |
1 | ||
| 16267-54010 |
2LT..LX70 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15004 |
2LT..LX70 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15004 |
2LT..LX70 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
2L#..LX7# |
1 | ||
| 16331-54030 |
2L#..LX7#..5F |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-54030 |
2L#..LX7# |
1 | ||
| 16331-54030 |
2L#..LX7#..5F |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
2L#..LX7# *WAX 88−100 |
1 | ||
| 90916-03072 |
2L#..LX7# *WAX 88−100 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54040 |
2L#..LX7# |
1 | ||
| 16333-54070 |
2L#..LX7# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
2L#..LX7# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
2L#..LX7# |
1 | ||
| 16361 - FAN | ||||
| 16361-41050 |
2L#..LX70 |
1 | ||
| 16361-34030 |
2L#..LX7# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54011 |
2L#..LX7# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-54400 |
2L#..LX7#..5F |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
2L#..LX7# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
2L#..LX7# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-63010 |
2L#..LX7# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54080 |
2L#..LX7# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L#..LX7# *H,L=130,NO.2 |
1 | ||
| 90445-12015 |
2L#..LX7# *H,L=1200,NO.1 |
1 | ||
| 90445-12015 |
2L#..LX7# *H,L=1210,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2L#..LX7# *H,L=130,NO.2 |
1 | ||
| 90445-12015 |
2L#..LX7# *H,L=1200,NO.1 |
1 | ||
| 90445-12015 |
2L#..LX7# *H,L=1210,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L#..LX7# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2L#..LX7# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-54050 |
2L#..LX7# |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-70070 |
2L#..LX7# 長さ=150 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54080 |
2L#..LX7# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-54080 |
2L#..LX7# 長さ=60 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-70010 |
2L#..LX7# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54190 |
2L#..LX7# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2L#..LX7# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
2L#..LX7# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54200 |
2L#..LX7# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L#..LX7# WATER PUMP SIDE |
1 | ||
| 96111-10460 |
2L#..LX7# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
2L#..LX7# WATER PUMP SIDE |
1 | ||
| 96111-10460 |
2L#..LX7# RADIATOR SIDE |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54180 |
2L#..LX7# |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2L#..LX7# W/COOLER |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-14002 |
2L#..LX7# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54140 |
2L#..LX7# |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90179-06070 | ||||
| 90183-06001 | ||||
| 90464-00324 | ||||
| 90464-00382 | ||||
| 90929-01003 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40618 | ||||
| 91655-40818 | ||||
| 91656-40618 | ||||
| 91659-41222 | ||||

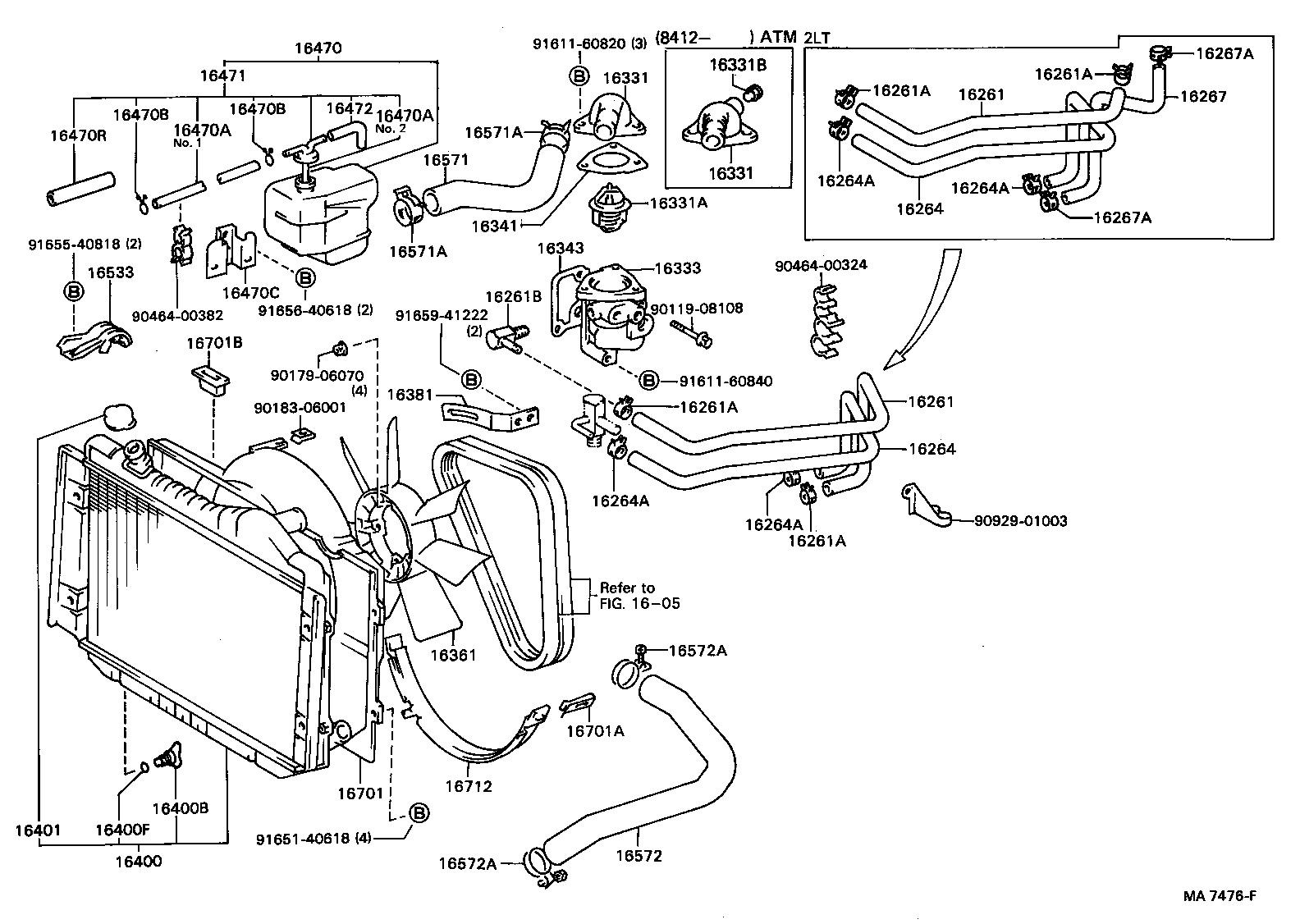

| Linked diagrams | ||||
| 1605 | ||||
