LX70-XEMEX (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

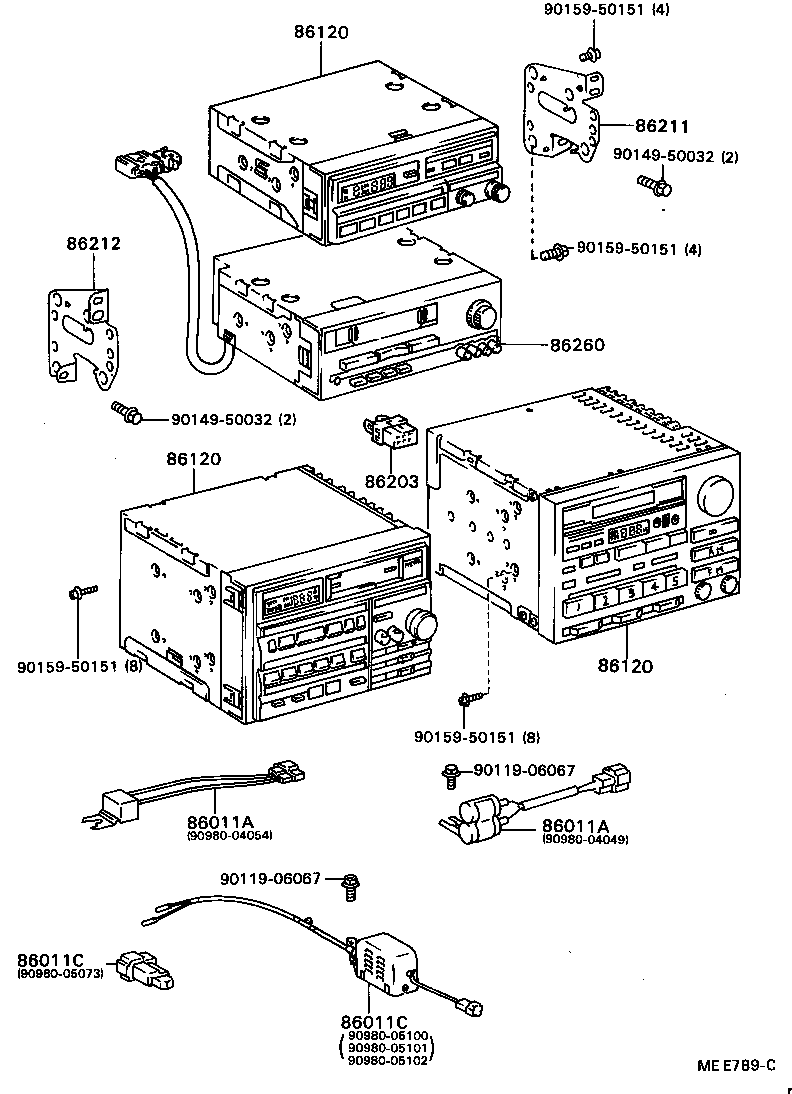

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 86011A 86011A 86011C 86011C 86120 86120 86120 86203 86211 86212 86260 9011906067 9011906067 9014950032 9014950032 9015950151 9015950151 9015950151 9015950151 9098004049 9098005073 9098005100 9098005101 9098005102
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04049

GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS,STD

DEFOGGER

 1
90980-04049

GX71,LX70,MX71,SX70,YX70

DEFOGGER

 1
86011A - CONDENSER, RADIO SETTING
90980-04049

GX71,LX70,SX70,YX72..GD,GL,GR,GT,LG,LS,STD

DEFOGGER

 1
90980-04049

GX71,LX70,MX71,SX70,YX70

DEFOGGER

 1
86011C - FILTER, NOISE
90980-05073

GX7#,LX7#,MX71,SX70,YX7#

FR

 1
90980-05100

GX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS,STD)

RR

 1
90980-05100

GX71,LX70,MX71,SX70,YX70..SED

RR

 1
86011C - FILTER, NOISE
90980-05073

GX7#,LX7#,MX71,SX70,YX7#

FR

 1
90980-05100

GX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS,STD)

RR

 1
90980-05100

GX71,LX70,MX71,SX70,YX70..SED

RR

 1
86120 - RECEIVER ASSY, RADIO
86120-22490

GX7#,LX70,SX70,YX70..GL,GR,LG,LS

*19

 1
86120-22640

GX7#,LX70,YX7#..GL,GR,LG,LS

*19

 1
86120 - RECEIVER ASSY, RADIO
86120-22490

GX7#,LX70,SX70,YX70..GL,GR,LG,LS

*19

 1
86120-22640

GX7#,LX70,YX7#..GL,GR,LG,LS

*19

 1
86120 - RECEIVER ASSY, RADIO
86120-22490

GX7#,LX70,SX70,YX70..GL,GR,LG,LS

*19

 1
86120-22640

GX7#,LX70,YX7#..GL,GR,LG,LS

*19

 1
86211 - BRACKET, RADIO, NO.1
86211-22130

GX7#,LX7#,MX71,SX70,YX7#

 1
86212 - BRACKET, RADIO, NO.2
86212-22110

GX7#,LX7#,MX71,SX70,YX7#

 1
86260 - TAPE PLAYER ASSY
86260-19155

GX71,LX7#,SX70,YX7#..DX,GL,GR,LG,LS

 1
86260-19165

GX71,LX7#,SX70,YX7#..DX,GL,GR,LG,LS

W/EQUARIZER

 1
86260-22190

GX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS

W/*19

 1
Common parts
90119-06067
90149-50032
90159-50151
90980-04049
90980-05073
90980-05100
90980-05101
90980-05102

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 86270A 86280 9015950173 9015950173 9356755016
Part # Description Qty Price
Common parts
90159-50173
93567-55016
