LX70-XEMEX (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 2LT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408-8709)2L# ; (8709- )2L..LX76 ; (8709-)2LT..4FC

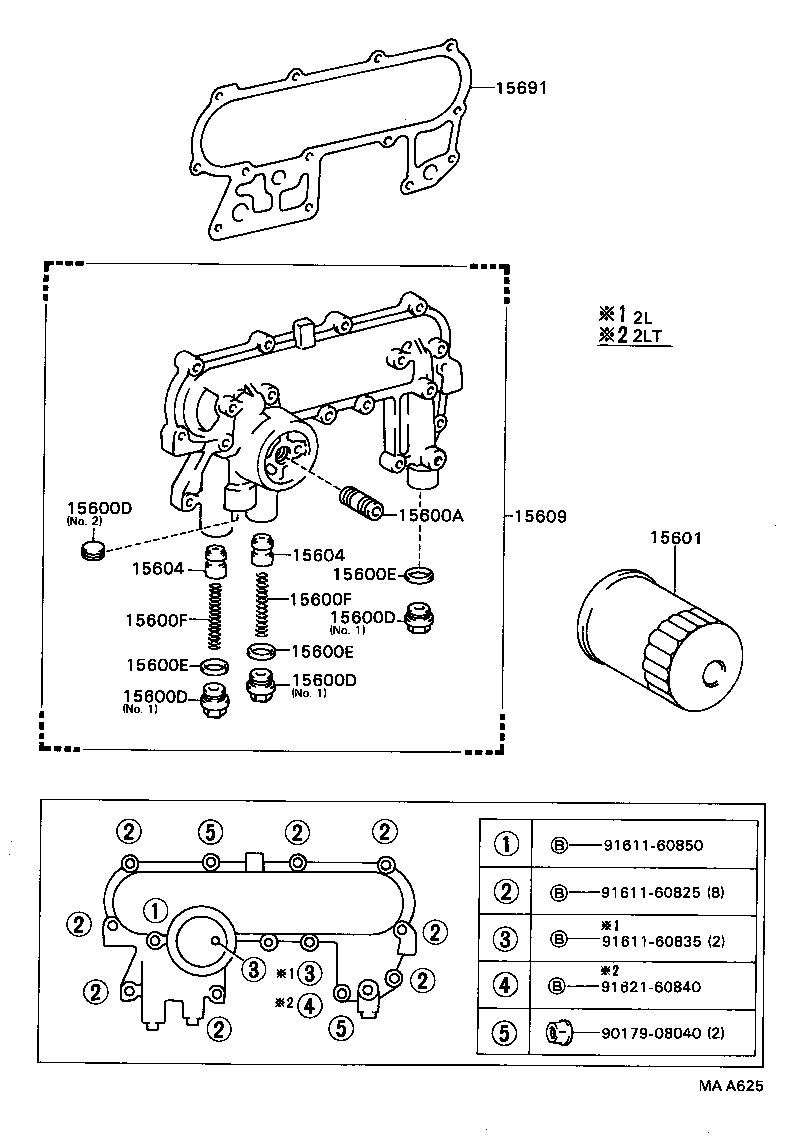

Click highlighted areas on diagram

diagram 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9011908467 9017908040 9161160825 9161160835 9162160840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54020

2L#..LX70..5F

 1
15116-54010

2L#..LX7#

 1
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L#..LX70

 3
90430-18011

2L#..LX7#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L#..LX70

 3
90430-18011

2L#..LX7#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L#..LX70

 3
90430-18011

2L#..LX7#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LX7#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LX7#

 2
15601 - FILTER SUB-ASSY, OIL
90915-03006

2L#..LX70..5F

 1
15600-41010

2L#..LX7#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L#..LX7#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L#..LX7#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54041

2L..LX7#

 1
15609-54080

2L..LX70

 1
15609-54050

2LT..LX70

 1
15609-54091

2LT..LX70..5F

 1
15609-54090

2LT..LX70..5F

 1
15609-54081

2L..LX70

 1
15691 - GASKET, OIL FILTER
15692-54030

2L#..LX7#

 1
15691-54012

2L#..LX7#

 1
15692-54020

2L#..LX7#

 1
Common parts
90119-08467
90179-08040
91611-60825
91611-60835
91621-60840

(8709- )2L#..LX70..5F

Click highlighted areas on diagram

diagram 15600A 15600D 15600D 15600D 15600D 15600E 15600E 15600E 15600F 15600F 15601 15604 15604 15609 15691 9017908040 9161160825 9161160835 9161160850 9162160840
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54020

2L#..LX70..5F

 1
15116-54010

2L#..LX7#

 1
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600D - PLUG(FOR OIL FILTER)
90344-54003

2L#..LX7#

NO.2

 1
90341-18015

2L#..LX7#

NO.1

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L#..LX70

 3
90430-18011

2L#..LX7#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L#..LX70

 3
90430-18011

2L#..LX7#

 3
15600E - WASHER(FOR OIL FILTER)
90430-18001

2L#..LX70

 3
90430-18011

2L#..LX7#

 3
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LX7#

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LX7#

 2
15601 - FILTER SUB-ASSY, OIL
90915-03006

2L#..LX70..5F

 1
15600-41010

2L#..LX7#

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L#..LX7#

 2
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L#..LX7#

 2
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54041

2L..LX7#

 1
15609-54080

2L..LX70

 1
15609-54050

2LT..LX70

 1
15609-54091

2LT..LX70..5F

 1
15609-54090

2LT..LX70..5F

 1
15609-54081

2L..LX70

 1
15691 - GASKET, OIL FILTER
15692-54030

2L#..LX7#

 1
15691-54012

2L#..LX7#

 1
15692-54020

2L#..LX7#

 1
Common parts
90179-08040
91611-60825
91611-60835
91611-60850
91621-60840
