LX60-XEPNSY (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )HT,SED

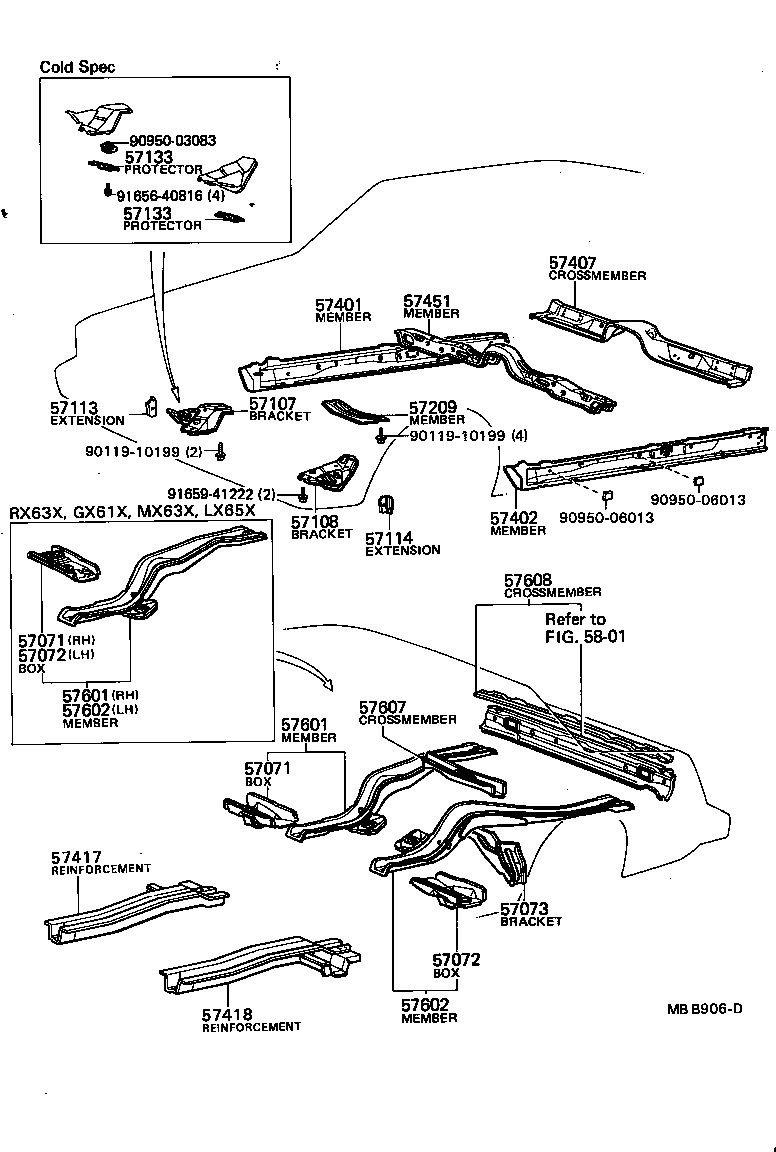

Click highlighted areas on diagram

diagram 57071 57071 57072 57072 57073 57107 57108 57113 57114 57133 57133 57209 57401 57402 57407 57417 57418 57451 57601 57601 57602 57602 57607 57608 5801 9011910199 9011910199 9095003083 9095006013 9095006013 9165640816 9165941222
Part # Description Qty Price
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-22040

GX60,LX60,MX60,RX60,SX60,TX60..HT,SED

 1
57071 - BOX SUB-ASSY, TORQUE, REAR RH
57071-22040

GX60,LX60,MX60,RX60,SX60,TX60..HT,SED

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-22040

GX60,LX60,MX60,RX60,SX60,TX60..HT,SED

 1
57072 - BOX SUB-ASSY, TORQUE, REAR LH
57072-22040

GX60,LX60,MX60,RX60,SX60,TX60..HT,SED

 1
57073 - BRACKET SUB-ASSY, LATERAL ROD
57073-22031

GX60,LX60,MX60,RX60,SX60,TX60..HT,SED

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22090

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22040

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22040

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

COLD SPEC

 2
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

COLD SPEC

 2
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-22110

LX60,MX61,63..4FC

 1
57255-22111

LX60,MX61,63..4FC

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22050

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22050

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-22030

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57505-22020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57506-22020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57451-22012

GX6#,LX6#,MX6#,RX6#,TX6#

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22904

GX60,LX60,MX60,RX60..HT,SED

W/URETHANE BUMPER

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22904

GX60,LX60,MX60,RX60..HT,SED

W/URETHANE BUMPER

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22903

GX60,LX60,MX60,RX60..HT,SED

W/URETHANE BUMPER

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22903

GX60,LX60,MX60,RX60..HT,SED

W/URETHANE BUMPER

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-22053

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED

 1
57608 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.2
57606-22901

GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED

 1
Common parts
90119-10199
90950-03083
90950-06013
91656-40816
91659-41222
Linked diagrams
5801
