LX60-XEPNSY (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

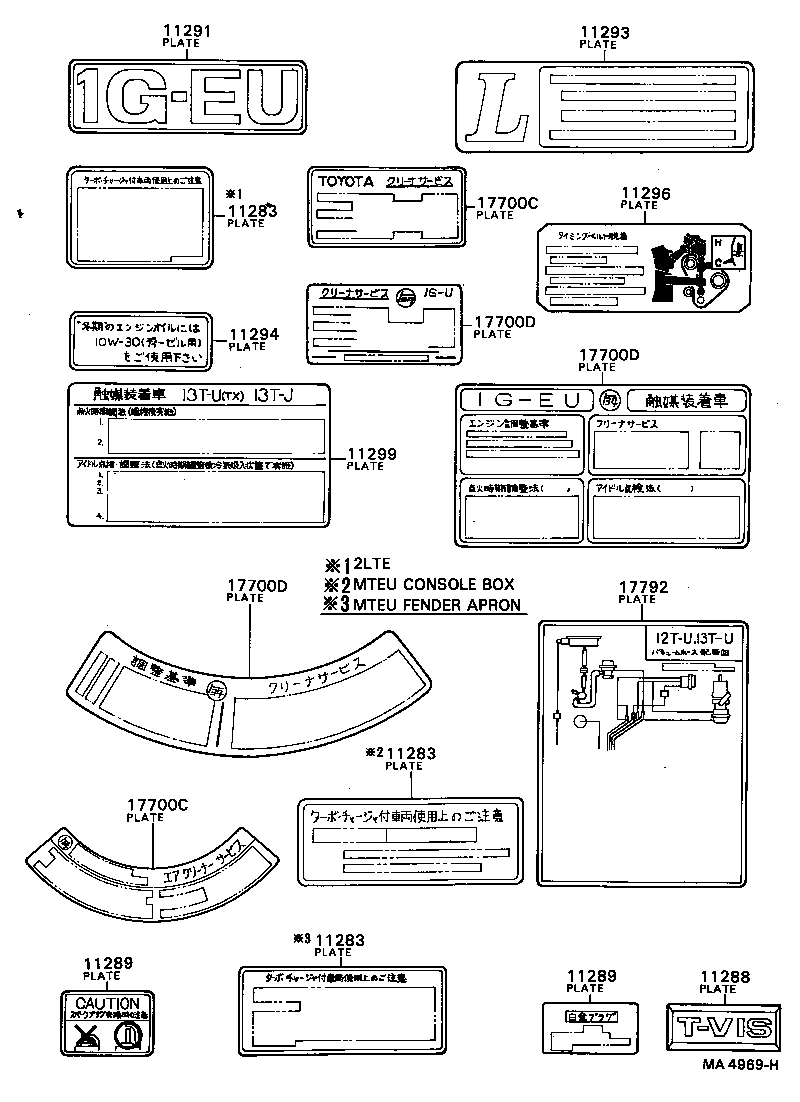

Click highlighted areas on diagram

diagram 11283 11283 11283 11288 11289 11289 11291 11293 11294 11296 11299 17700C 17700C 17700D 17700D 17700D 17792
Part # Description Qty Price
11293 - PLATE, ENGINE CAUTION & ENGINE NAME
11293-54010

L..LX60,67

 1
11294 - PLATE, ENGINE CAUTION, NO.2
11294-56010

L..LX60,67

COLD SPEC

 1
11296 - PLATE, TIMING BELT CAUTION
11296-54010

L,2LTE..LX6#

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
90917-07090

L..LX6#

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
90917-07090

L..LX6#

 1
