LX60-XEMNSY (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )LX6#

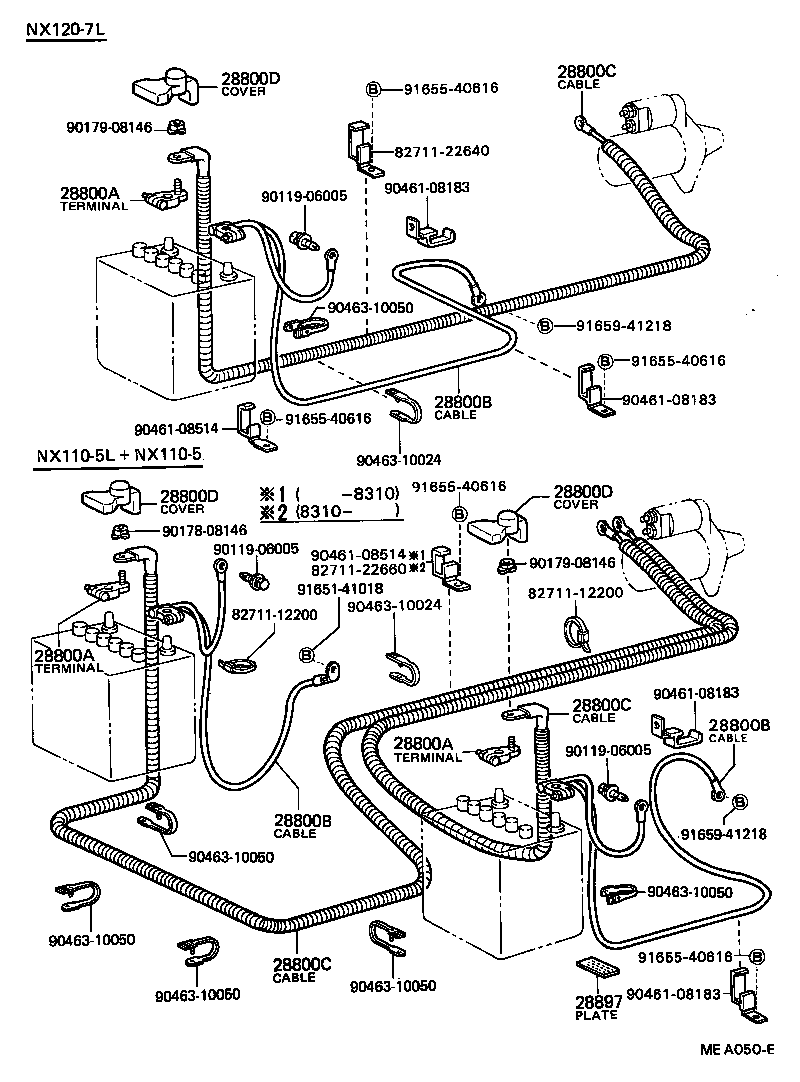

Click highlighted areas on diagram

diagram 28800A 28800A 28800A 28800B 28800B 28800B 28800C 28800C 28800C 28800D 28800D 28800D 28897 8271112200 8271112200 8271122640 8271122660 9011906005 9011906005 9011906005 9017808146 9017908146 9017908146 9046108183 9046108183 9046108183 9046108183 9046108514 9046108514 9046310024 9046310024 9046310050 9046310050 9046310050 9046310050 9046310050 9046310050 9165141018 9165540616 9165540616 9165540616 9165540616 9165540616 9165941218 9165941218
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

L..LX6#

 2
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

L..LX6#

 2
28800A - TERMINAL, BATTERY POSITIVE
90982-05005

L..LX6#

 2
28800B - CABLE, BATTERY TO GROUND
90982-02212

L..LX60,67

RH

 1
90982-02211

L..LX60,67

LH

 1
28800B - CABLE, BATTERY TO GROUND
90982-02212

L..LX60,67

RH

 1
90982-02211

L..LX60,67

LH

 1
28800B - CABLE, BATTERY TO GROUND
90982-02212

L..LX60,67

RH

 1
90982-02211

L..LX60,67

LH

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01365

L..LX60,67

RH

 1
90982-01364

L,2LTE..LX6#

LH

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01365

L..LX60,67

RH

 1
90982-01364

L,2LTE..LX6#

LH

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01365

L..LX60,67

RH

 1
90982-01364

L,2LTE..LX6#

LH

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22110

L..LX6#

 2
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22110

L..LX6#

 2
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-22110

L..LX6#

 2
28897 - PLATE, BATTERY CAUTION
28897-54030

L..LX60,67

NX110-5L-MF,NX110-5-MF

 1
Common parts
82711-12200
82711-22640
82711-22660
90119-06005
90178-08146
90179-08146
90461-08183
90461-08514
90463-10024
90463-10050
91651-41018
91655-40616
91659-41218
