LX60-XEMNSY (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8009- )GX60,LX60,67,MX60,RX60,SX60,TX6#

Click highlighted areas on diagram

diagram 44608 44610 44610 44610 44610K 44626 44629 44642 44643 44647 44657A 44657B 44662 44662B 44662C 44669 44683 44683A 44696 44696 44730P 44730Q 44785 44785 44785 9017908038 9017908038 9017908038 9331914008
Part # Description Qty Price
44608 - PUSH ROD SUB-ASSY, BOOSTER
44606-35100

GX60,LX6#,MX60,RX60,TX6#

 1
44610 - BOOSTER ASSY, BRAKE
44610-22350

LX60,67

 1
44610 - BOOSTER ASSY, BRAKE
44610-22350

LX60,67

 1
44610 - BOOSTER ASSY, BRAKE
44610-22350

LX60,67

 1
44610K - BOOSTER KIT, BRAKE
04443-22260

LX60,67

 1
44626 - RETAINER, BOOSTER ROD CUP
44626-60010

GX60,LX6#,MX60,RX60,TX6#

 1
44629 - RING, CIRCULAR INTERNAL
44628-60010

GX60,LX6#,MX60,RX60,TX6#

 1
44642 - PISTON, BRAKE BOOSTER
44642-14170

GX60,LX60,67,MX60,RX60,SX60,TX6#

 1
44643 - RETAINER, DIAPHRAGM
44643-60010

GX60,LX6#,MX60,RX60,TX6#

 1
44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER)
44629-30090

GX60,LX6#,MX60,RX60,TX6#

 1
44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER)
96150-01600

GX60,LX6#,MX60,RX60,TX6#

 1
44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER)
44645-20100

GX60,LX60,67,MX60,RX60,SX60,TX6#

 1
44662 - RETAINER, REACTION, NO.1
44662-35100

GX60,LX60,67,MX60,RX60,SX60,TX6#

 1
44662B - LEVER, REACTION
44661-35100

GX60,LX6#,MX60,RX60,TX6#

 3
44662C - PLATE, REACTION, NO.1
44607-22330

GX60,LX60,67,MX60,RX60,SX60,TX6#

 1
44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER
44669-60010

GX60,LX6#,MX60,RX60,TX6#

 1
44683 - CONNECTOR, BOOSTER BODY
44682-20150

GX60,LX60,67,MX60,RX60,SX60,TX6#

 1
44683A - LOCK, CONNECTOR
44683-20100

GX60,LX60,67,MX60,RX60,SX60,TX6#

 1
44696 - GROMMET, CHECK VALVE
90480-24439

LX6#,RX60

 1
44696 - GROMMET, CHECK VALVE
90480-24439

LX6#,RX60

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-22110

LX6#

 1
44730Q - VALVE ASSY, VACUUM CHECK, NO.2
44730-20030

LX60,67

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
44785 - GASKET, BRAKE BOOSTER
44785-30020

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
Common parts
90179-08038
93319-14008

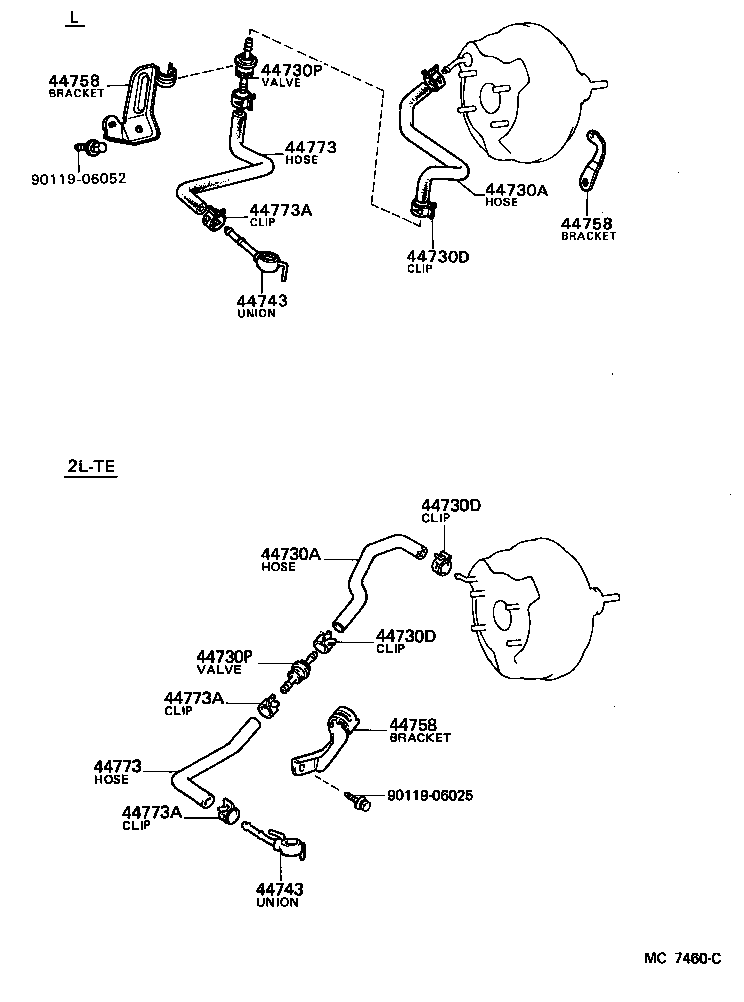

ILLUST NO. 2 OF 2(8009- )LX6#

Click highlighted areas on diagram

diagram 44730A 44730A 44730D 44730D 44730D 44730P 44730P 44743 44743 44758 44758 44758 44773 44773 44773A 44773A 44773A 9011906025 9011906052
Part # Description Qty Price
44730A - HOSE, VACUUM, NO.1
44772-22030

LX60,67

 1
44730A - HOSE, VACUUM, NO.1
44772-22030

LX60,67

 1
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-16002

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-22110

LX6#

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-22110

LX6#

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09045

LX60,67

 1
90405-09046

LX60,67

W/AIRCON

 1
44743 - UNION(FOR VACUUM PUMP)
90405-09045

LX60,67

 1
90405-09046

LX60,67

W/AIRCON

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22110

LX60,67

 1
44758-22080

LX60,67,RX60

BOOSTER SIDE

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22110

LX60,67

 1
44758-22080

LX60,67,RX60

BOOSTER SIDE

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-22110

LX60,67

 1
44758-22080

LX60,67,RX60

BOOSTER SIDE

 1
44773 - HOSE, VACUUM, NO.2
44773-22300

LX60,67

 1
44773 - HOSE, VACUUM, NO.2
44773-22300

LX60,67

 1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

GX6#,LX6#,MX6#,RX63,SX60,TX6#

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

GX6#,LX6#,MX6#,RX63,SX60,TX6#

 2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16002

GX6#,LX6#,MX6#,RX63,SX60,TX6#

 2
Common parts
90119-06025
90119-06052
