LX100-ATPQT (1996)

Toyota Mark 2

Production Sep 1996 - Aug 1999
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

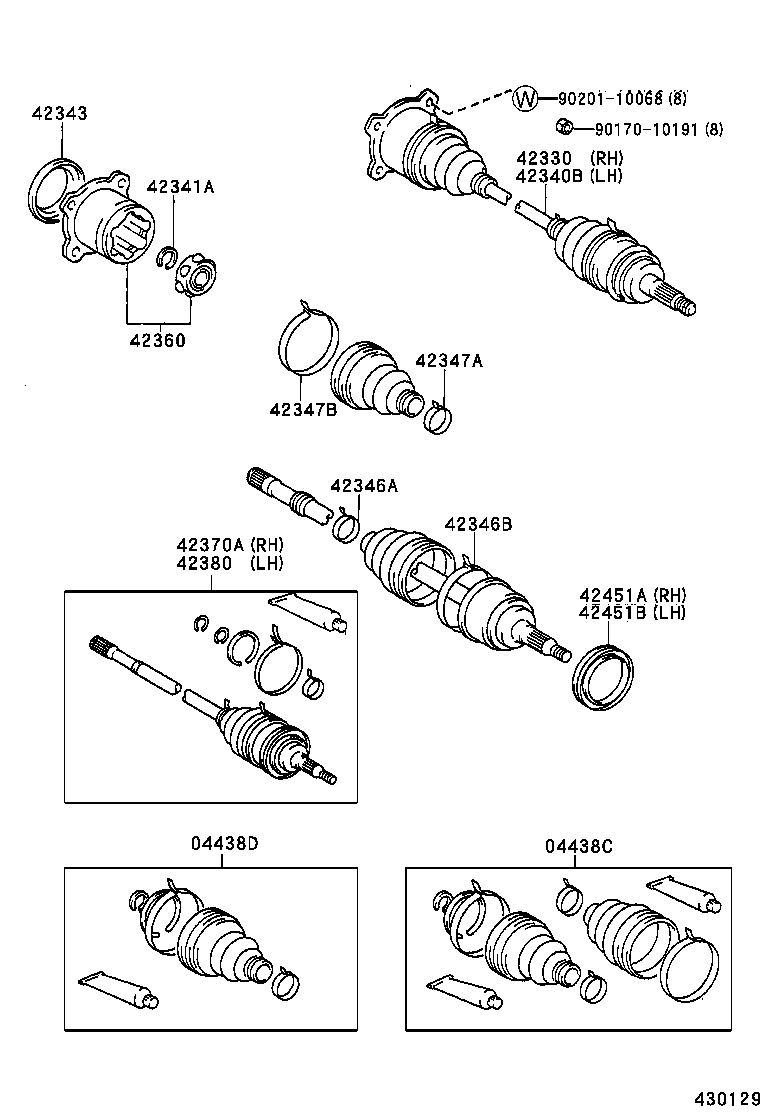

ILLUST NO. 1 OF 2(9609- )GX10#,LX100

Click highlighted areas on diagram

diagram 04438C 04438D 42330 42340B 42341A 42343 42346A 42346B 42347A 42347B 42360 42370A 42380 42451A 42451B 9017010191 9020110068
Part # Description Qty Price
04438C - BOOT KIT, REAR DRIVE SHAFT
04437-22120

GX100,LX100

 2
04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT
04437-22090

GX100,LX100

 2
42330 - SHAFT ASSY, REAR DRIVE, RH
42330-22070

LX100;GX100..5F

 1
42330-22070

GX105,LX100

 1
42340B - SHAFT ASSY, REAR DRIVE, LH
42340-22150

LX100;GX100..5F

 1
42340-22150

GX105,LX100

 1
42341A - RING, SNAP (FOR REAR DRIVE SHAFT)
90520-23024

GX100,LX100

 2
90520-23024

GX10#,LX100..4FC

 2
42343 - COVER, OUTBOARD JOINT END
42343-14010

GX100,LX100

 2
42343-14010

GX10#,LX100..4FC

 2
42346A - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)
42345-14010

GX10#,JZX100,105,LX100..(4FC,5F)..(GD,GDG,GL,TOU,TOUS)

内径=35.75

 2
42346B - CLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)
90949-01473

GX10#,LX100

 2
42347A - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-14010

GX10#,JZX100,105,LX100..(4FC,5F)..(GD,GDG,GL,TOU,TOUS)

内径=35.75

 2
42347B - CLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)
42345-14020

GX100,LX100

 2
42360 - JOINT ASSY, REAR DRIVE SHAFT INBOARD
42360-22040

GX10#,LX100..4FC

 2
42360-22040

GX100,LX100

 2
42370A - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH
42370-29195

LX100;GX100..5F

 1
42370-29195

GX105,LX100

 1
42380 - SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH
42380-29095

LX100;GX100..5F

 1
42451A - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH
42453-50010

GX100..5F;GX105,JZX10#,LX100

 1
42451B - DEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH
42453-50010

GX100..5F;GX105,JZX10#,LX100

 1
Common parts
90170-10191
90201-10068

ILLUST NO. 2 OF 2(9609- )

Click highlighted areas on diagram

diagram 42311L 42311M 42311N 42311T 42311U 42311V 42311V 42312 42312A 42312B 42312C 42312C 42312D 42312E 42428B 42428C 42431 42452A 42452B 42491 9025204004
Part # Description Qty Price
42311L - SHAFT, REAR AXLE, RH
42311-22170

GX10#,JZX10#,LX100

 1
42311M - BEARING (FOR REAR AXLE SHAFT RH)
90369-43005

GX10#,JZX10#,LX100

 1
42311N - NUT (FOR REAR AXLE SHAFT RH)
90179-26006

GX10#,JZX10#,LX100

 1
42311T - RING, SNAP (FOR REAR AXLE SHAFT RH)
90521-85002

GX10#,JZX10#,LX100

 1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02070

GX10#,JZX10#,LX100

 5
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-63001

GX10#,JZX10#,LX100

内側

 1
90311-57001

GX10#,JZX10#,LX100

外側

 1
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90311-63001

GX10#,JZX10#,LX100

内側

 1
90311-57001

GX10#,JZX10#,LX100

外側

 1
42312 - SHAFT, REAR AXLE, LH
42311-22170

GX10#,JZX10#,LX100

 1
42312A - BEARING (FOR REAR AXLE SHAFT LH)
90369-43005

GX10#,JZX10#,LX100

 1
42312B - NUT (FOR REAR AXLE SHAFT LH)
90179-26006

GX10#,JZX10#,LX100

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-57001

GX10#,JZX10#,LX100

外側

 1
90311-63001

GX10#,JZX10#,LX100

内側

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90311-57001

GX10#,JZX10#,LX100

外側

 1
90311-63001

GX10#,JZX10#,LX100

内側

 1
42312D - RING, SNAP (FOR REAR AXLE SHAFT LH)
90521-85002

GX10#,JZX10#,LX100

 1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02070

GX10#,JZX10#,LX100

 5
42428B - PLATE, REAR AXLE LOCK NUT, RH
42428-24010

GX10#,JZX10#,LX100

 1
42428C - PLATE, REAR AXLE LOCK NUT, LH
42428-24010

GX10#,JZX10#,LX100

 1
42431 - DISC, REAR
42431-22200

GX100,LX100

 2
42452A - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH
42451-50010

GX100..5F;GX105,JZX10#,LX100

 1
42452B - DEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH
42451-50010

GX100..5F;GX105,JZX10#,LX100

 1
42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)
47491-22020

GX10#,JZX10#,LX100

 2
Common parts
90252-04004
