LX100-ATPNT (1996)

Toyota Mark 2

Production Sep 1996 - Aug 1998
Engine 2LTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

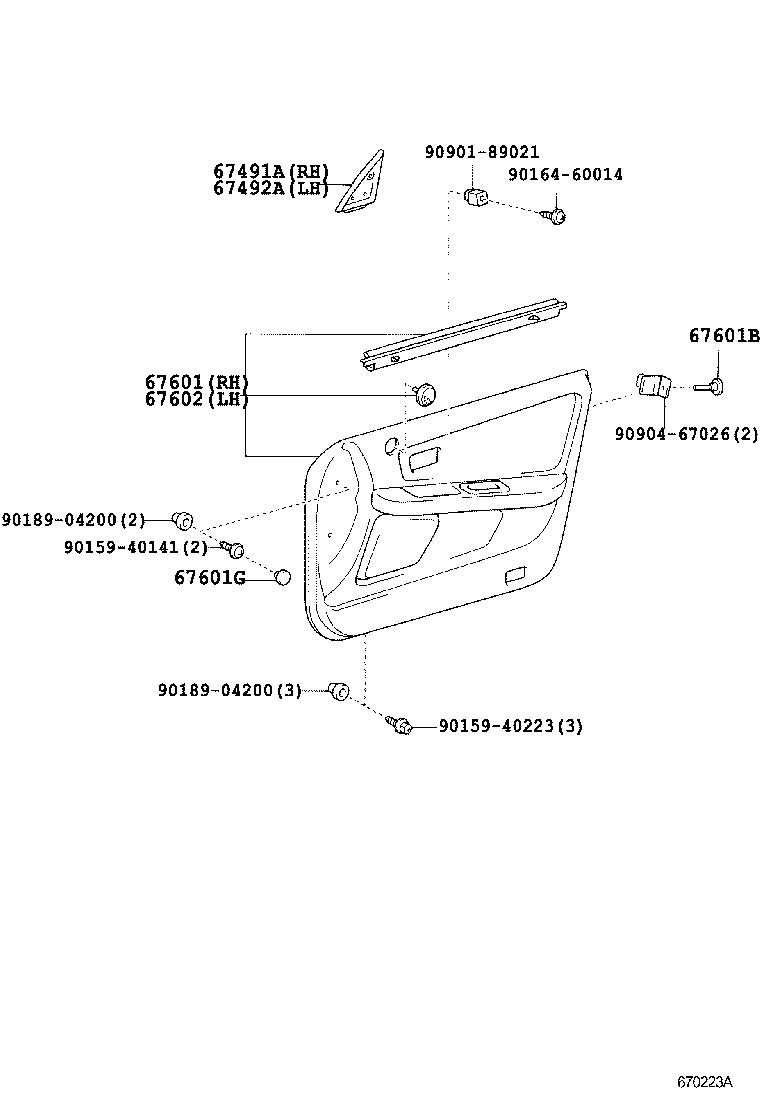

ILLUST NO. 1 OF 3(9609- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67601B 67601G 67602 9015940141 9015940223 9016460014 9018904200 9018904200 9090189021 9090467026
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-22120

GX10#,JZX10#,LX100

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-22120

GX10#,JZX10#,LX100

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67650-2A820G0

LX100..GL

SAGE,TRIM6#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07066B0

LX100..GL

MEDIUM GRAY,TRIM6#

 4
90467-07066G3

GX100,JZX10#,LX100..GD,GDG,GL

SAGE,TRIM6#

 4
67601G - PLUG, HOLE(FOR FRONT DOOR TRIM BOARD)
90950-01800G3

GX10#,JZX10#,LX100..GD,GDG,GL

DK.SAGE,TRIM6#,下側

 2
90950-01800B4

LX100..GL

MD.GRAY,TRIM6#,上側

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67050-22070G0

LX100..GL

SAGE,TRIM6#

 1
Common parts
90159-40141
90159-40223
90164-60014
90189-04200
90901-89021
90904-67026

ILLUST NO. 2 OF 3(9609- )

Click highlighted areas on diagram

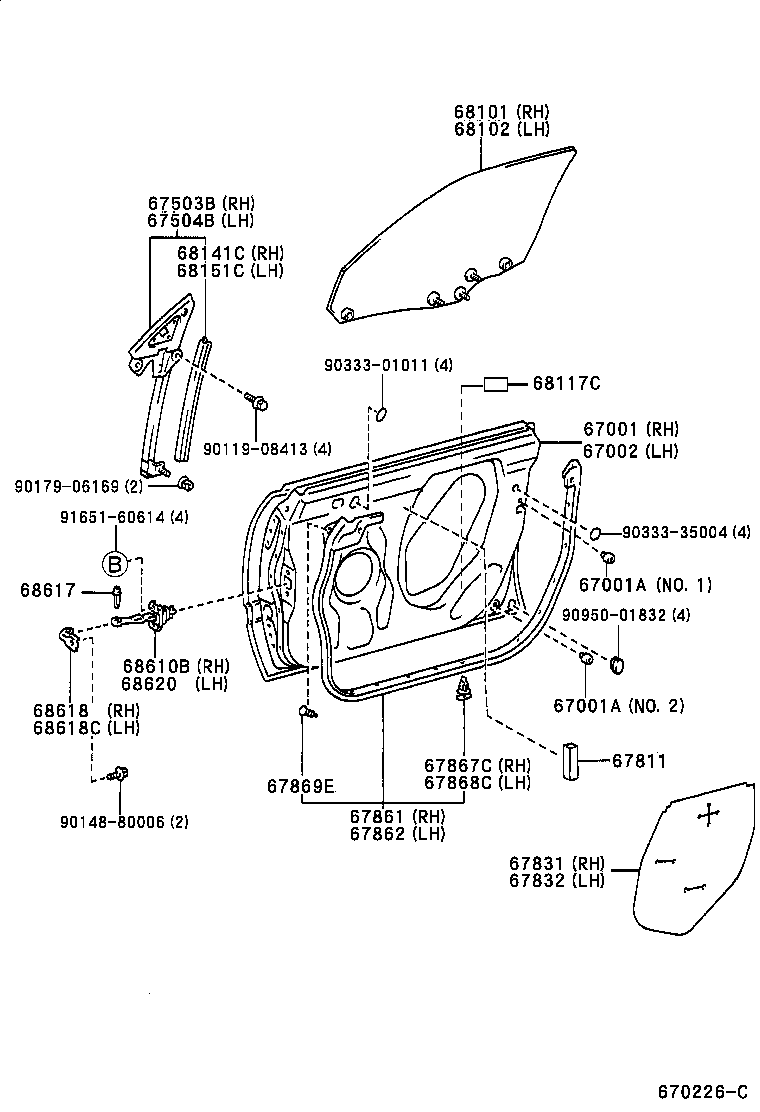

diagram 67001 67001A 67001A 67002 67503B 67504B 67811 67831 67832 67861 67862 67867C 67868C 67869E 68101 68102 68117C 68141C 68151C 68610B 68617 68618 68618C 68620 9011908413 9014880006 9017906169 9033301011 9033335004 9095001832 9165160614
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-22350

GX10#,JZX10#,LX100

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09139

GX10#,JZX10#,LX100

NO.1

 2
90541-09054

GX10#,JZX10#,LX100

NO.2

 2
67001A - CUSHION, FRONT DOOR PANEL
90541-09139

GX10#,JZX10#,LX100

NO.1

 2
90541-09054

GX10#,JZX10#,LX100

NO.2

 2
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-22360

GX10#,JZX10#,LX100

 1
67503B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, RH
67503-22010

GX10#,JZX10#,LX100

 1
67504B - BRACKET SUB-ASSY, FRONT DOOR MIRROR, LH
67504-22010

GX10#,JZX10#,LX100

 1
67811 - PAD, FRONT DOOR SILENCER
67811-22070

GX10#,JZX10#,LX100

 2
67811-22070

GX100,JZX10#,LX100

 4
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-22220

GX10#,JZX10#,LX100

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-22120

GX10#,JZX10#,LX100

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-22250

GX10#,JZX10#,LX100

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-22250

GX10#,JZX10#,LX100

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

GX10#,JZX10#,LX100

 17
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

GX10#,JZX10#,LX100

 17
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-22030

GX10#,JZX10#,LX100

 10
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-22290

GX10#,JZX10#,LX100

*UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-22290

GX10#,JZX10#,LX100

*UVCTT,厚さ=5.0,ｸﾞﾘｰﾝ

 1
68117C - PLATE, DOOR GLASS
68117-22040

GX10#,JZX10#,LX100

 2
68141C - RUN, FRONT DOOR GLASS, RH
68141-22190

GX10#,JZX10#,LX100

 1
68151C - RUN, FRONT DOOR GLASS, LH
68141-22190

GX10#,JZX10#,LX100

 1
68610B - CHECK ASSY, FRONT DOOR, RH
68610-22080

GX10#,JZX10#,LX100

 1
68617 - PIN, FRONT DOOR CHECK
68617-50010

GX10#,JZX10#,LX100

 2
68618 - BRACKET, FRONT DOOR CHECK ARM, RH
68618-50010

GX10#,JZX10#,LX100

 1
68618C - BRACKET, FRONT DOOR CHECK ARM, LH
68618-50010

GX10#,JZX10#,LX100

 1
68620 - CHECK ASSY, FRONT DOOR, LH
68610-22080

GX10#,JZX10#,LX100

 1
Common parts
90119-08413
90148-80006
90179-06169
90333-01011
90333-35004
90950-01832
91651-60614
