LX100-ATPNT (1996)

Toyota Mark 2

Production Sep 1996 - Aug 1998

Engine 2LTE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9609- )2LTE

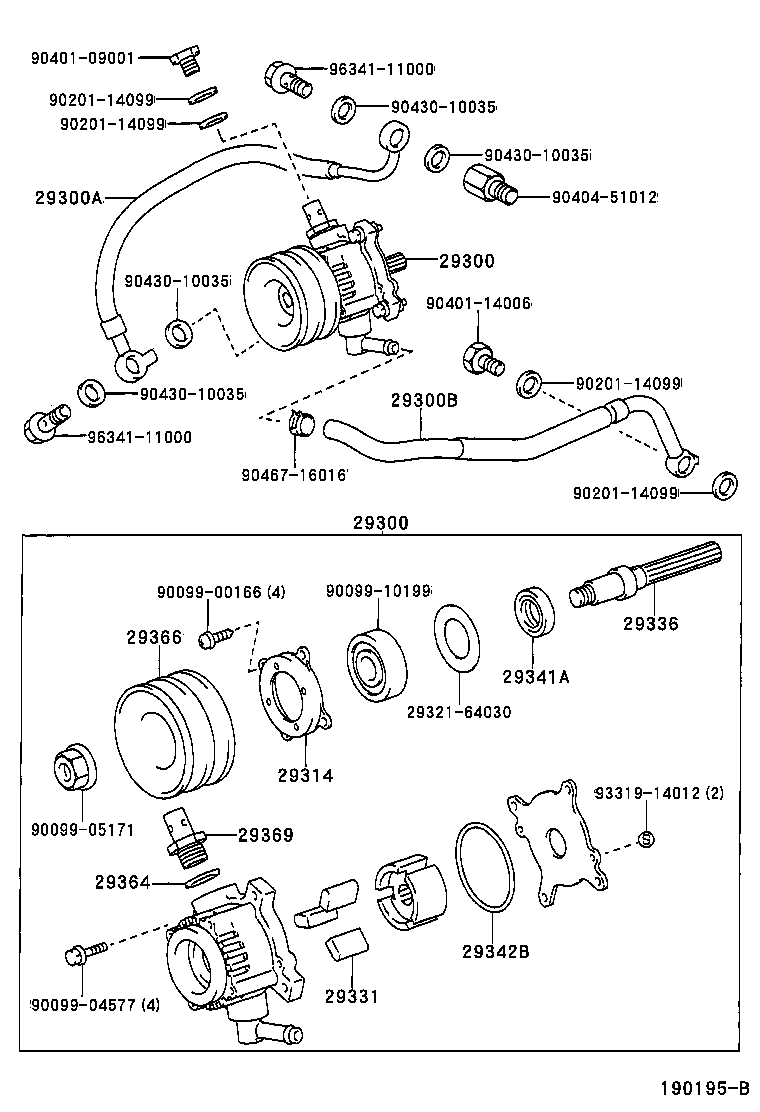

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
29300 - PUMP ASSY, VACUUM
29300-54160	2LTE..LX100	09/1996 - 08/1999	1
29300 - PUMP ASSY, VACUUM
29300-54160	2LTE..LX100	09/1996 - 08/1999	1
29300A - HOSE, VACUUM PUMP OIL INLET
90923-02119	2LTE..LX100	09/1996 - 08/1999	1
29300B - HOSE, VACUUM PUMP OIL OUTLET
29611-54090	2LTE..LX100	09/1996 - 08/1999	1
29314 - RING, STOP
29314-64030	2LTE..LX100	09/1996 - 08/1999	1
29331 - BLADE, VACUUM PUMP, A
29331-54130	2LTE..LX100	09/1996 - 08/1999	5
29336 - SHAFT, VACUUM PUMP
29336-64031	2LTE..LX100	09/1996 - 08/1999	1
29341A - SEAL, OIL
29341-64030	2LTE..LX100	09/1996 - 08/1999	1
29342B - RING, O
29342-64030	2LTE..LX100	09/1996 - 08/1999	1
29364 - WASHER, VACUUM PUMP
29364-66010	2LTE..LX100	09/1996 - 08/1999	1
29366 - PULLEY, VACUUM PUMP
29366-54080	2LTE..LX100	09/1996 - 08/1999	1
29369 - VALVE SUB-ASSY, CHECK
29369-64030	2LTE..LX100	09/1996 - 08/1999	1
Common parts
29321-64030
90099-00166
90099-04577
90099-05171
90099-10199
90201-14099
90401-09001
90401-14006
90404-51012
90430-10035
90467-16016
93319-14012
96341-11000
