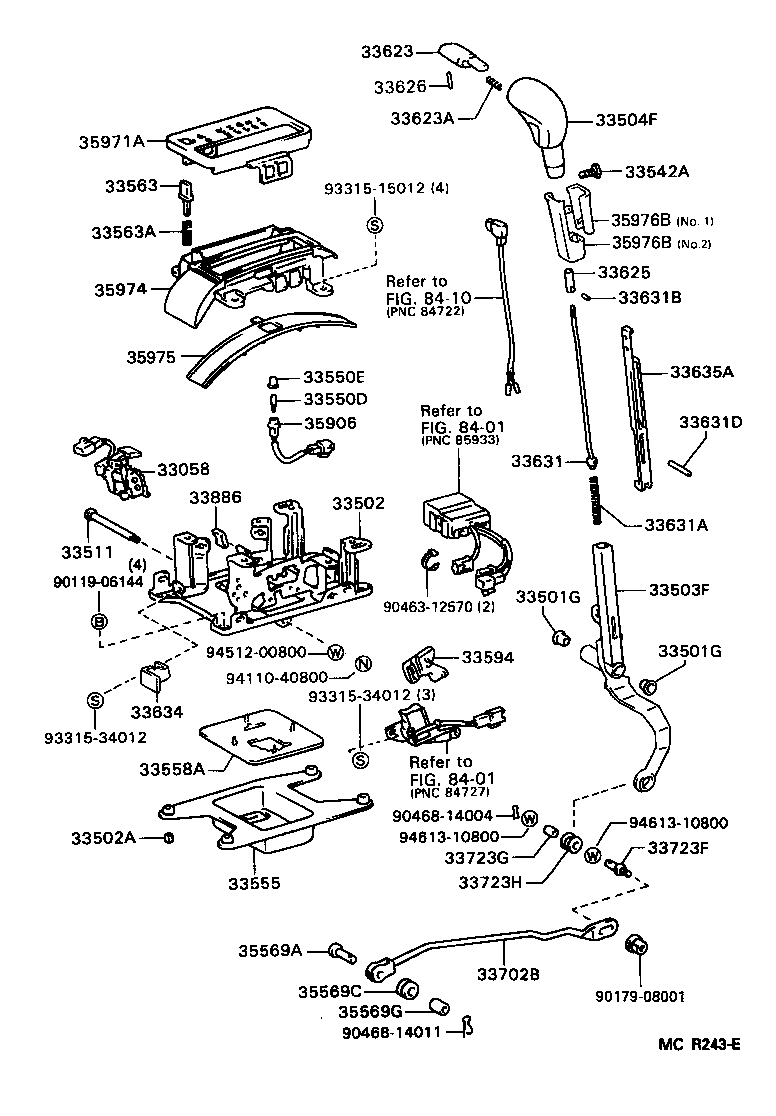

JZX93-ATPZF (1993)
Toyota Mark 2
(9310- )JZX93
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-22060 |
JZX93 |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11020 |
JZX93 |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11020 |
JZX93 |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-22370 |
JZX93 |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
GX90,JZX9#,LX90,SX90..ATM 外径=8.8 |
4 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33055-22010 |
JZX93 |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-30240G0 |
JZX93;GX90,JZX90,LX90,SX90..ATM..(GD,GRO) JADE,TRIM6# |
1 | ||
| 33542-30240E1 |
JZX93;GX90,JZX90,LX90,SX90..ATM..(GD,GL,GRO) SABLE,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22210 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33542A - SCREW, W/WASHER(FOR SPRING BACK SHIFT LEVER KNOB) | ||||
| 90159-50312 |
GX90,JZX9#,LX90,SX90..ATM |
2 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
GX90,JZX9#,LX90,SX90..ATM 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04049 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-22140 |
JZX93 |
1 | ||
| 33558A - SEAL, SHIFT LEVER BOOT DUST, NO.1 | ||||
| 33558-22010 |
JZX93 |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-22040 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07105 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33594 - PLATE, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33594-22050 |
JZX93 |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-30110E0 |
GX90,JZX9#,LX90,SX90..ATM..(GD,GDG,GL,GRO) SABLE,TRIM4# |
1 | ||
| 33623-30110G1 |
GX90,JZX9#,LX90,SX90..ATM..(GD,GDG,GRO) JADE,TRIM6# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-30030 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 90256-02004 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-22070 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08152 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33631B - PIN, SLOTTED SPRING (FOR DETENT ROD) | ||||
| 90256-02003 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33634 - PROTECTOR, WIRE | ||||
| 33634-22020 |
JZX93 |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-22040 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33702B - ROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT) | ||||
| 33702-22070 |
JZX93 |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-30070 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33723G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90389-08005 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33723H - GROMMET (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33572-22010 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 33572-22010 |
JZX93 |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-22010 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35569A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08120 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35569C - GROMMET (FOR TRANSMISSION CONTROL ROD) | ||||
| 90480-17177 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35569G - BUSH (FOR TRANSMISSION CONTROL ROD) | ||||
| 90389-08005 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-22060 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-22120 |
JZX93 |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-22100 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-22140 |
JZX93 |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-22030G0 |
JZX93 JADE,TRIM6#,NO.2 |
1 | ||
| 35976-22020E0 |
JZX93 BEIGE,TRIM4#,NO.1 |
1 | ||
| 35976-22020G0 |
JZX93 JADE,TRIM6#,NO.1 |
1 | ||
| 35976-22030E0 |
JZX93 BEIGE,TRIM4#,NO.2 |
1 | ||
| 35976B - COVER, SHIFT LEVER KNOB (FOR FLOOR SHIFT) | ||||
| 35976-22030G0 |
JZX93 JADE,TRIM6#,NO.2 |
1 | ||
| 35976-22020E0 |
JZX93 BEIGE,TRIM4#,NO.1 |
1 | ||
| 35976-22020G0 |
JZX93 JADE,TRIM6#,NO.1 |
1 | ||
| 35976-22030E0 |
JZX93 BEIGE,TRIM4#,NO.2 |
1 | ||
| Common parts | ||||
| 90119-06144 | ||||
| 90179-08001 | ||||
| 90463-12570 | ||||
| 90468-14004 | ||||
| 90468-14011 | ||||
| 93315-15012 | ||||
| 93315-34012 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||
