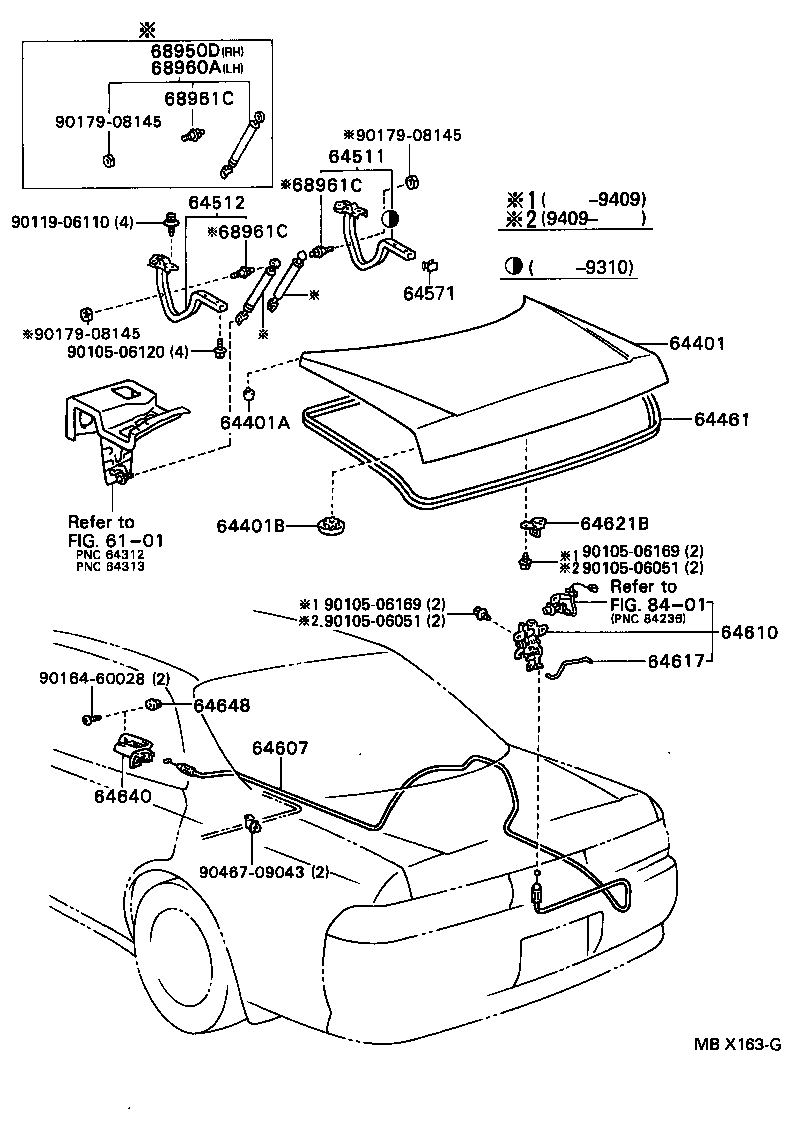

Toyota Mark 2 JZX91 LUGGAGE COMPARTMENT DOOR & LOCK

Part #	Description	Period	Qty
64401 - PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401-22590	GX90,JZX9#,LX90,SX90..GD,GDG,GRO ｱﾘ(ﾗﾂｹﾞ-ｼﾞﾄﾞｱﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ)	10/1992 - 10/1993	1
64401-22570	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1996	1
64401-22590	GX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV ｱﾘ(ﾗﾂｹﾞ-ｼﾞﾄﾞｱﾂﾞｹﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ)	10/1993 - 09/1996	1
64401A - CUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90541-06059	GX90,JZX9#,LX90,SX90 FRONT	09/1994 - 09/1996	2
90541-06059	GX90,JZX9#,LX90,SX90	10/1993 - 09/1994	2
90541-06041	GX90,JZX9#,LX90,SX90	10/1992 - 10/1993	2
64401B - PLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
90950-01392	GX90,JZX9#,LX90,SX90	10/1992 - 05/1993	2
64461 - WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64461-22230	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
64511 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64510-22090	GX90,JZX9#,LX90,SX90	10/1992 - 12/1992	1
64510-22100	GX90,JZX9#,LX90,SX90 MARK=Q1R	12/1992 - 09/1996	1
64510-22090	GX90,JZX9#,LX90,SX90 MARK=M1R	12/1992 - 09/1996	1
64512 - SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64520-22090	GX90,JZX9#,LX90,SX90 MARK=Q1L	12/1992 - 09/1994	1
64520-22080	GX90,JZX9#,LX90,SX90	10/1992 - 12/1992	1
64520-22090	GX90,JZX9#,LX90,SX90 MARK=Q1L	09/1994 - 09/1996	1
64520-22080	GX90,JZX9#,LX90,SX90 MARK=M1L	12/1992 - 09/1994	1
64520-22080	GX90,JZX9#,LX90,SX90 MARK=M1L	09/1994 - 09/1996	1
64607 - CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607-22340	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
64610 - LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64610-22140	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
64617 - LINK, LUGGAGE COMPARTMENT DOOR LOCK
64617-22020	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
64621B - STRIKER, LUGGAGE COMPARTMENT DOOR LOCK
64620-12100	GX90,JZX9#,LX90,SX90 WHITE	08/1993 - 09/1994	1
64620-12100	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	1
64620-24020	GX90,JZX9#,LX90,SX90 ﾌﾞﾗｯｸ	10/1992 - 08/1993	1
64640 - OPENER ASSY, LUGGAGE DOOR LOCK
64640-22240E0	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO SABLE,TRIM4#	10/1992 - 09/1996	1
64640-22240G0	GX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV JADE,TRIM6#	10/1992 - 09/1996	1
64640-22240J0	GX90,JZX90,91,LX90,SX90 GRAYISH BLUE,TRIM8#	10/1992 - 09/1994	1
64648 - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
68950D - STAY ASSY, LUGGAGE DOOR, RH
64530-29055	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1996	1
68960A - STAY ASSY, LUGGAGE DOOR, LH
64530-29055	GX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1996	1
68961C - BOLT, LUGGAGE DOOR STAY
68961-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	2
68961-22040	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	7
68961C - BOLT, LUGGAGE DOOR STAY
68961-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	2
68961-22040	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	7
68961C - BOLT, LUGGAGE DOOR STAY
68961-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1994	2
68961-22040	GX90,JZX9#,LX90,SX90	09/1994 - 09/1996	7
Common parts
90105-06051
90105-06120
90105-06169
90119-06110
90164-60028
90179-08145
90467-09043
Linked diagrams
6101
8401

JZX91-ATPZF (1992)

(9210- )
