Toyota Mark 2 JZX91 FRONT AXLE ARM & STEERING KNUCKLE

Part #	Description	Period	Qty
43211 - KNUCKLE, STEERING, RH
43211-30190	JZX90,91..GDG,TOUV	07/1995 - 09/1996	1
43211-22120	JZX90,91..GDG,TOUV	10/1992 - 07/1995	1
43212 - KNUCKLE, STEERING, LH
43212-30140	JZX90,91..GDG,TOUV	07/1995 - 09/1996	1
43212-22110	JZX90,91..GDG,TOUV	10/1992 - 07/1995	1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-29355	GX90,JZX90,91,LX90,SX90	08/1995 - 09/1996	1
43330-29275	GX90,JZX90,91,LX90,SX90	10/1992 - 08/1995	1
43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)
90171-14002	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
43330M - BOLT (FOR FRONT LOWER BALL JOINT RH)
90105-12141	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43340-29085	GX90,JZX90,91,LX90,SX90	10/1992 - 08/1995	1
43340-29145	GX90,JZX90,91,LX90,SX90	08/1995 - 09/1996	1
43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)
90171-14002	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
43340C - BOLT (FOR FRONT LOWER BALL JOINT LH)
90105-12141	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068-22100	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1995	1
48068-30270	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	09/1995 - 09/1996	1
48068E - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH
48660-22090	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1996	1
48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
90170-14012	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-14097	GX90,JZX90,91,LX90,SX90 ARM NO.1 SIDE	10/1992 - 09/1996	2
90901-05010	GX90,JZX90,91,LX90,SX90 BODY SIDE	10/1992 - 09/1996	1
48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)
90105-14097	GX90,JZX90,91,LX90,SX90 ARM NO.1 SIDE	10/1992 - 09/1996	2
90901-05010	GX90,JZX90,91,LX90,SX90 BODY SIDE	10/1992 - 09/1996	1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48069-30270	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	09/1995 - 09/1996	1
48069-22100	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1995	1
48069A - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH
48670-22090	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1996	1
48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
90170-14012	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-14097	GX90,JZX90,91,LX90,SX90 ARM NO.1 SIDE	10/1992 - 09/1996	2
90901-05010	GX90,JZX90,91,LX90,SX90 BODY SIDE	10/1992 - 09/1996	1
48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)
90105-14097	GX90,JZX90,91,LX90,SX90 ARM NO.1 SIDE	10/1992 - 09/1996	2
90901-05010	GX90,JZX90,91,LX90,SX90 BODY SIDE	10/1992 - 09/1996	1
48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH
48190-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH
48198-22030	GX90,JZX9#,LX90,SX90	10/1992 - 04/1994	1
48198-14010	GX90,JZX9#,LX90,SX90	04/1994 - 09/1996	1
48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH
48190-22040	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH
48198-22030	GX90,JZX9#,LX90,SX90	10/1992 - 04/1994	1
48198-14010	GX90,JZX9#,LX90,SX90	04/1994 - 09/1996	1
48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH
48610-29065	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1995	1
48610-39045	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	09/1995 - 09/1996	1
48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)
90171-12002	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH)
90119-10812	GX90,JZX9#,LX90,SX90	07/1996 - 09/1996	2
90105-10369	GX90,JZX9#,LX90,SX90	10/1992 - 07/1996	2
48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH)
90119-10812	GX90,JZX9#,LX90,SX90	07/1996 - 09/1996	2
90105-10369	GX90,JZX9#,LX90,SX90	10/1992 - 07/1996	2
48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH)
90173-10010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH)
90173-10010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH
48630-29065	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	10/1992 - 09/1995	1
48630-39025	GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO	09/1995 - 09/1996	1
48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)
90171-12002	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	1
48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH)
90119-10812	GX90,JZX9#,LX90,SX90	07/1996 - 09/1996	2
90105-10369	GX90,JZX9#,LX90,SX90	10/1992 - 07/1996	2
48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH)
90119-10812	GX90,JZX9#,LX90,SX90	07/1996 - 09/1996	2
90105-10369	GX90,JZX9#,LX90,SX90	10/1992 - 07/1996	2
48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH)
90173-10010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH)
90173-10010	GX90,JZX9#,LX90,SX90	10/1992 - 09/1996	2
Common parts
90201-14026
90252-03008
90468-16022

JZX91-ATPZF (1992)

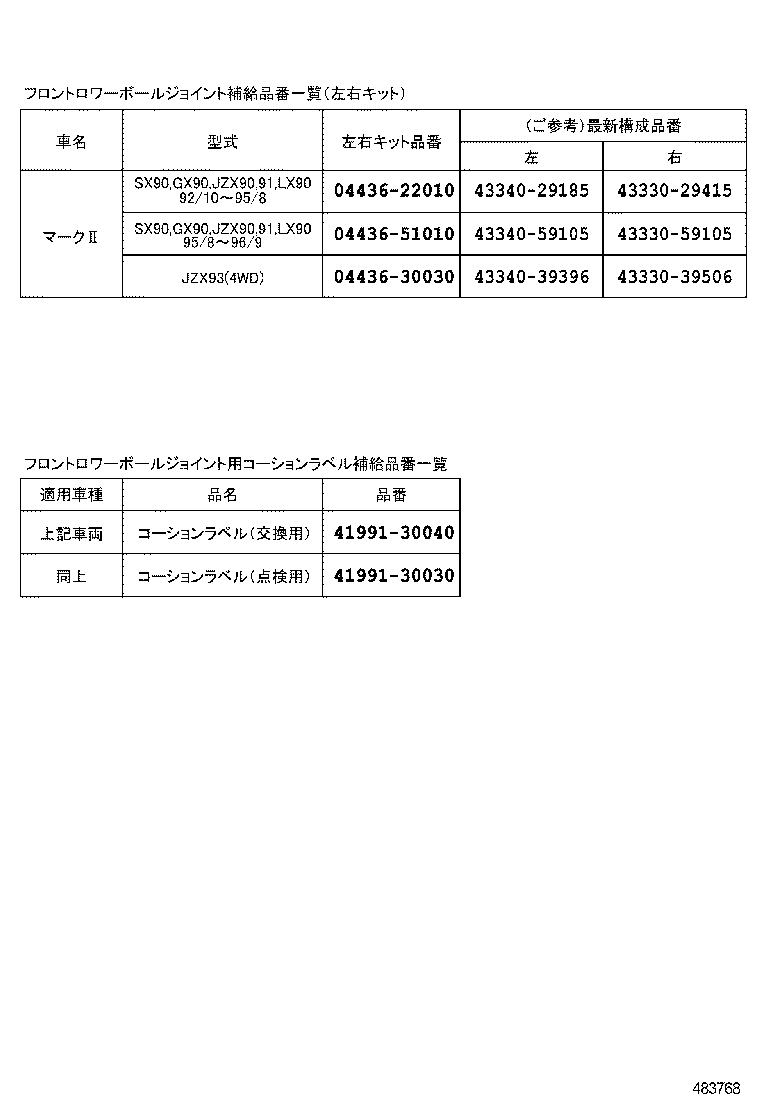

ILLUST NO. 1 OF 2(9210- )GX90,JZX90,91,LX90,SX90

ILLUST NO. 2 OF 2(9210- )

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
04436-22010
04436-30030
04436-51010
41991-30030
41991-30040
