JZX91-ATPZF (1992)
Toyota Mark 2
ILLUST NO. 1 OF 2(9210- )JZX90,91
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-22160 |
JZX90,91 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-22090 |
JZX90,91 |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-22320 |
JZX90,91..GD,GDG |
1 | ||
| 44250-22321 |
JZX90,91..GD,GDG |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29285 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12002 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29285 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22120 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-22070 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90105-10369 | ||||
| 90119-10754 | ||||
| 90170-14012 | ||||
| 90468-16022 | ||||

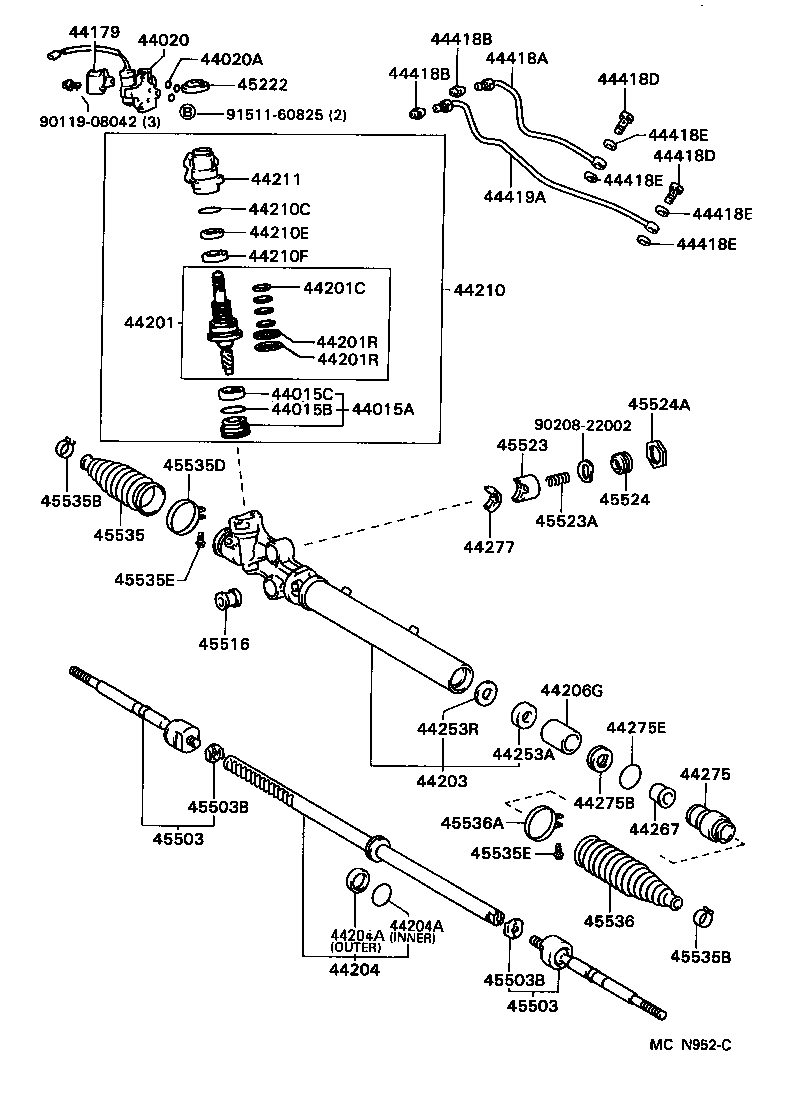

ILLUST NO. 2 OF 2(9210- )JZX90,91
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22030 |
JZX9# |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-53181 |
JZX9# |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90311-30016 |
JZX9# |
1 | ||
| 90311-30008 |
JZX9# |
1 | ||
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-22030 |
JZX90,91 |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
JZX9# |
3 | ||
| 44179 - INSULATOR, SOLENOID VALVE HEAT | ||||
| 44179-22020 |
JZX90,91 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-22180 |
JZX90,91..GD,GDG |
1 | ||
| 44201-22181 |
JZX90,91..GD,GDG |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GX90,JZX9#,LX90,SX90 |
4 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-49002 |
JZX9# |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-49002 |
JZX9# |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-22110 |
JZX90,91 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-22050 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-37007 |
GX90,JZX9#,LX90,SX90 内側 |
1 | ||
| 90562-41001 |
GX90,JZX9#,LX90,SX90 外側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90301-37007 |
GX90,JZX9#,LX90,SX90 内側 |
1 | ||
| 90562-41001 |
GX90,JZX9#,LX90,SX90 外側 |
1 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90561-30004 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-22200 |
JZX90,91..GD,GDG |
1 | ||
| 44210-22201 |
JZX90,91..GD,GDG |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-62005 |
JZX9# |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19013 |
JZX9# |
1 | ||
| 90311-19002 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22080 |
JZX90,91 |
1 | ||
| 44211-30040 |
JZX90,91 |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26008 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90310-26018 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90310-26020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-27013 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22030 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26019 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90310-26015 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90310-26023 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44275E - RING, O(FOR RACK END GUIDE) | ||||
| 90301-40004 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-22020 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-22130 |
JZX90,91 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04004 |
JZX90,91 |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04004 |
JZX90,91 |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
JZX9#,LX90 |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
JZX9#,LX90 |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZX9#,LX90 |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZX9#,LX90 |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZX9#,LX90 |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
JZX9#,LX90 |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-22130 |
JZX90,91 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22040 |
JZX9# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29485 |
GX90,JZX90,91,LX90,SX90 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29485 |
GX90,JZX90,91,LX90,SX90 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
GX90,JZX90,91,LX90,SX90 外径=37 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14002 |
GX90,JZX90,91,LX90,SX90 外径=37 |
2 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-22030 |
GX90,JZX90,91,LX90,SX90..GD,GDG,GL,GRO |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-22040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26074 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 90501-26074 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90501-23024 |
GX90,JZX90,91,LX90,SX90 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-20040 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-30010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49002 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90460-49004 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30004 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 45535E - SCREW(FOR STEERING RACK BOOT CLAMP) | ||||
| 90149-30004 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-30010 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-49002 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 90460-49004 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 90119-08042 | ||||
| 90208-22002 | ||||
| 91511-60825 | ||||
