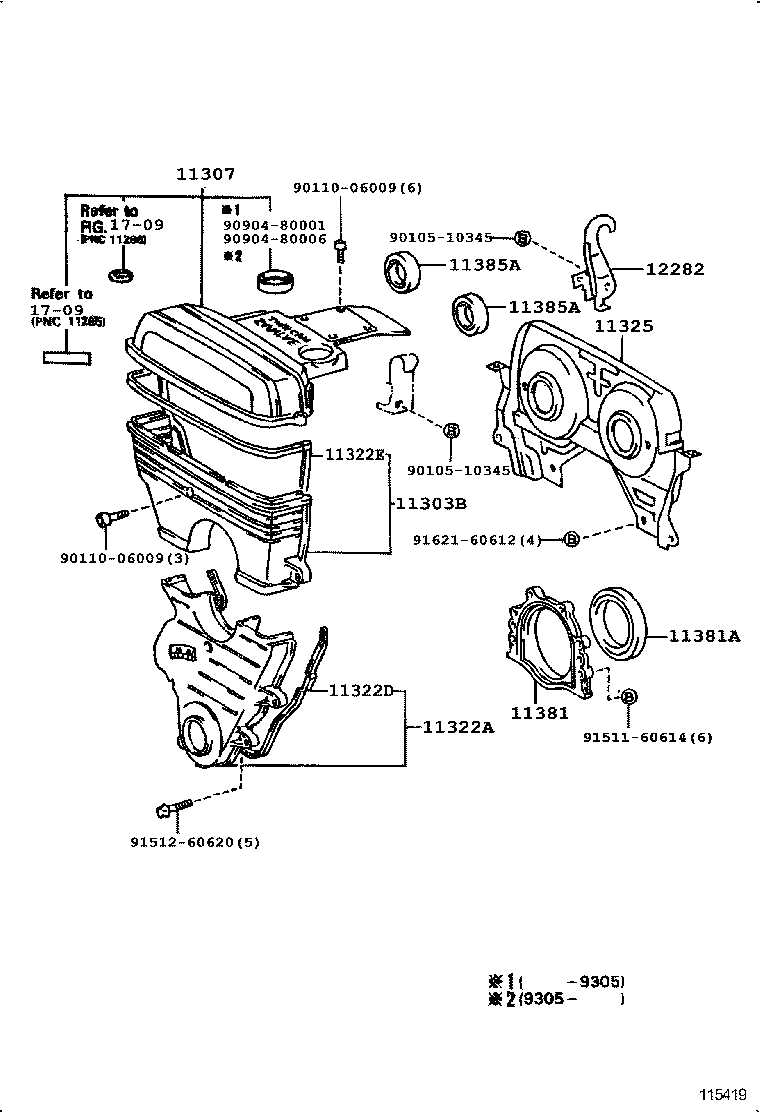

Toyota Mark 2 JZX91 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11303B - COVER SUB-ASSY, TIMING BELT, NO.2
11303-46011	1JZGE,2JZGE..JZX9#	10/1992 - 09/1996	1
11307 - COVER, SUB-ASSY, TIMING BELT, NO.3
11304-46090	2JZGE..JZX91	10/1992 - 05/1993	1
11304-46091	2JZGE..JZX91	05/1993 - 09/1996	1
11322A - COVER, TIMING BELT, NO.1
11302-46031	2JZGE..JZX91	10/1992 - 09/1996	1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-46041	2JZGE..JZX91	10/1992 - 09/1994	1
11328-46041	2JZGE..JZX91	09/1994 - 09/1996	1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-46011	1JZGE,2JZGE..JZX9#	09/1994 - 09/1996	1
11329-46011	1JZGE,2JZGE..JZX9#	10/1992 - 09/1994	1
11325 - COVER, TIMING BELT, NO.4
11325-46040	2JZGE..JZX91	10/1992 - 06/1993	1
11325-46041	2JZGE..JZX91	06/1993 - 07/1995	1
11325-46042	2JZGE..JZX91	07/1995 - 09/1996	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-46010	1JZ#,2JZGE..JZX9#	10/1992 - 09/1996	1
11381A - SEAL, ENGINE REAR OIL
90311-90006	1JZ#,2JZGE..JZX9#	10/1992 - 09/1996	1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-40020	1JZGE,2JZGE..JZX9#	09/1995 - 09/1996	2
90311-40014	1JZGE,2JZGE..JZX9#	10/1992 - 09/1995	2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-40020	1JZGE,2JZGE..JZX9#	09/1995 - 09/1996	2
90311-40014	1JZGE,2JZGE..JZX9#	10/1992 - 09/1995	2
12282 - HANGER, ENGINE, NO.2
12282-46012	1JZGE,2JZGE..JZX9#	05/1996 - 09/1996	1
Common parts
90105-10345
90110-06009
90904-80001
90904-80006
91511-60614
91512-60620
91621-60612
Linked diagrams
1709

JZX91-ATPZF (1992)
