JZX90-ATPVZ (1992)
Toyota Mark 2
Production
Oct 1992
-
Sep 1996
Engine
1JZGTE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9210- )JZX90,91..ATM

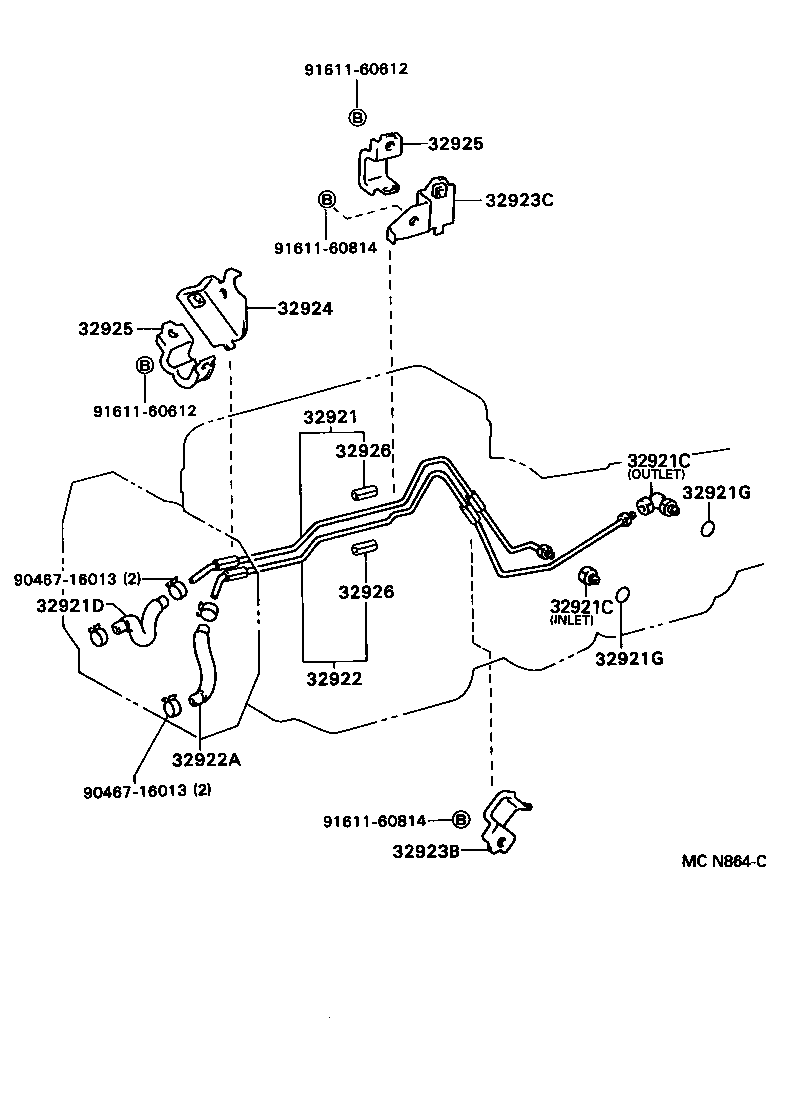

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-22640 |
JZX90..ATM..TOUV |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
JZX90,91..ATM INLET |
1 | ||
| 90407-16009 |
JZX9#..ATM OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16029 |
JZX90,91..ATM INLET |
1 | ||
| 90407-16009 |
JZX9#..ATM OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 32941-22360 |
JZX90..ATM..TOUV |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZX9#..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-11006 |
JZX9#..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-22640 |
JZX90..ATM..TOUV |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 32942-22280 |
JZX90..ATM..TOUV |
1 | ||
| 32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 | ||||
| 32929-30140 |
JZX9#..ATM |
1 | ||
| 32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4 | ||||
| 32924-22100 |
JZX90,91..ATM |
1 | ||
| 32924 - CLAMP, OIL COOLER TUBE, NO.2 | ||||
| 32924-22090 |
JZX90,91..ATM |
1 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32929-22050 |
JZX9#..ATM |
2 | ||
| 32925 - CLAMP, OIL COOLER TUBE, NO.3 | ||||
| 32929-22050 |
JZX9#..ATM |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZX9#..ATM 長さ=35,内径=10,FR OR CTR |
4 | ||
| 32926-30030 |
JZX9#..ATM 長さ=35,内径=10,ﾘﾔ |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
JZX9#..ATM 長さ=35,内径=10,FR OR CTR |
4 | ||
| 32926-30030 |
JZX9#..ATM 長さ=35,内径=10,ﾘﾔ |
2 | ||
| Common parts | ||||
| 90467-16013 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
