JZX90-ATPVF (1992)

Toyota Mark 2

Production Oct 1992 - Sep 1996
Engine 1JZGE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9210- )

Click highlighted areas on diagram

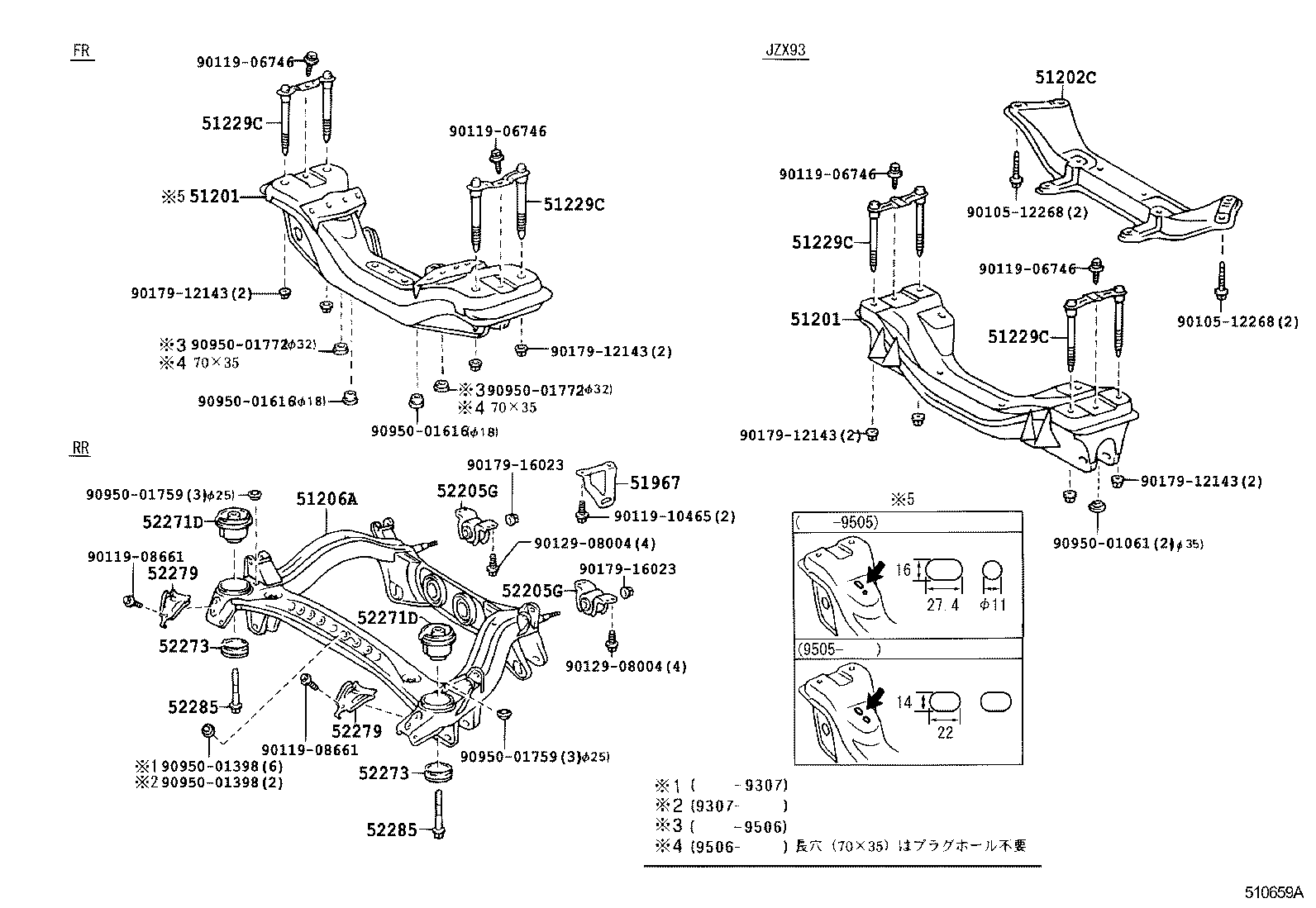

diagram 51201 51201 51202C 51206A 51229C 51229C 51229C 51229C 51967 52205G 52205G 52271D 52271D 52273 52273 52279 52279 52285 52285 9010512268 9010512268 9011906746 9011906746 9011906746 9011906746 9011908661 9011908661 9011910465 9012908004 9012908004 9017912143 9017912143 9017912143 9017912143 9017916023 9017916023 9095001061 9095001398 9095001398 9095001616 9095001616 9095001759 9095001759 9095001772 9095001772
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-22400

GX90,JZX90,91

 1
51201-22907

GX90,JZX90,91

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-22400

GX90,JZX90,91

 1
51201-22907

GX90,JZX90,91

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-22130

GX90,JZX90,91..GD,GDG,TOUS

 1
51206-22130

LX90,SX90..ATM;GX90,JZX90,91..GD,GDG,TOUS

 1
51229C - PLATE, SUSPENSION MEMBER SET
51229-22060

GX90,JZX90,91,LX90,SX90

 2
51229C - PLATE, SUSPENSION MEMBER SET
51229-22060

GX90,JZX90,91,LX90,SX90

 2
51229C - PLATE, SUSPENSION MEMBER SET
51229-22060

GX90,JZX90,91,LX90,SX90

 2
51229C - PLATE, SUSPENSION MEMBER SET
51229-22060

GX90,JZX90,91,LX90,SX90

 2
51967 - HOOK, TRANSPORT, REAR
51967-22070

GX90,JZX9#,LX90,SX90

 1
52205G - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-22040

JZX90..TOUS,TOUV

 2
52205G - CUSHION SUB-ASSY, BODY MOUNTING, LOWER
52205-22040

JZX90..TOUS,TOUV

 2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-22100

JZX90..TOUS,TOUV

 2
52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT
52271-22100

JZX90..TOUS,TOUV

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-22050

GX90,JZX9#,LX90,SX90

 2
52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER
52273-22050

GX90,JZX9#,LX90,SX90

 2
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-22030

GX90,JZX9#,LX90,SX90

 2
52279 - RETAINER, REAR SUSPENSION MEMBER CUSHION
52279-22030

GX90,JZX9#,LX90,SX90

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-22010

GX90,JZX9#,LX90,SX90

 2
52285 - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-22010

GX90,JZX9#,LX90,SX90

 2
Common parts
90105-12268
90119-06746
90119-08661
90119-10465
90129-08004
90179-12143
90179-16023
90950-01061
90950-01398
90950-01616
90950-01759
90950-01772

(9210- )

Click highlighted areas on diagram

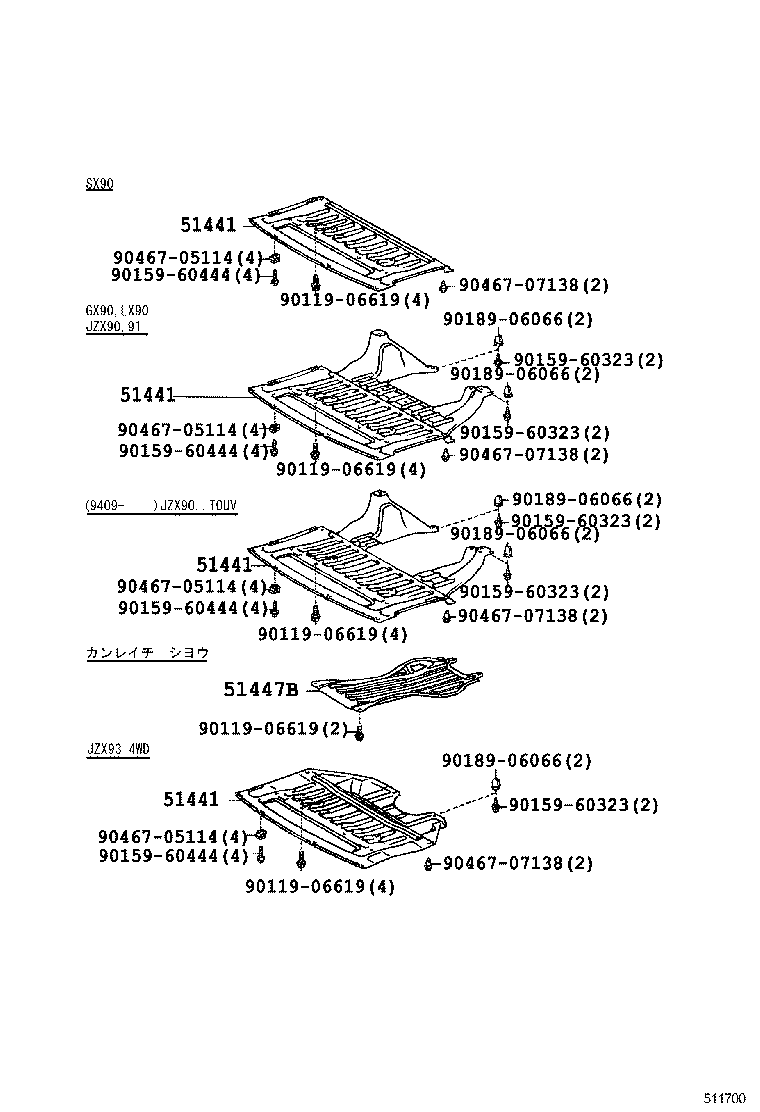

diagram 51441 51441 51441 51441 51447B 9011906619 9011906619 9011906619 9011906619 9011906619 9015960323 9015960323 9015960323 9015960323 9015960323 9015960444 9015960444 9015960444 9015960444 9018906066 9018906066 9018906066 9018906066 9018906066 9046705114 9046705114 9046705114 9046705114 9046707138 9046707138 9046707138 9046707138
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-22260

JZX90..MTM;GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51441-22260

GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-22260

JZX90..MTM;GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51441-22260

GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-22260

JZX90..MTM;GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51441-22260

GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-22260

JZX90..MTM;GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51441-22260

GX90,JZX90,91,LX90..GD,GDG,GL,GRO,TOUS

 1
51447B - PROTECTOR, OIL PAN
51447-22080

JZX90,91,LX90

ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
90119-06619
90159-60323
90159-60444
90189-06066
90467-05114
90467-07138
