JZX90-ATPQF (1992)
Toyota Mark 2

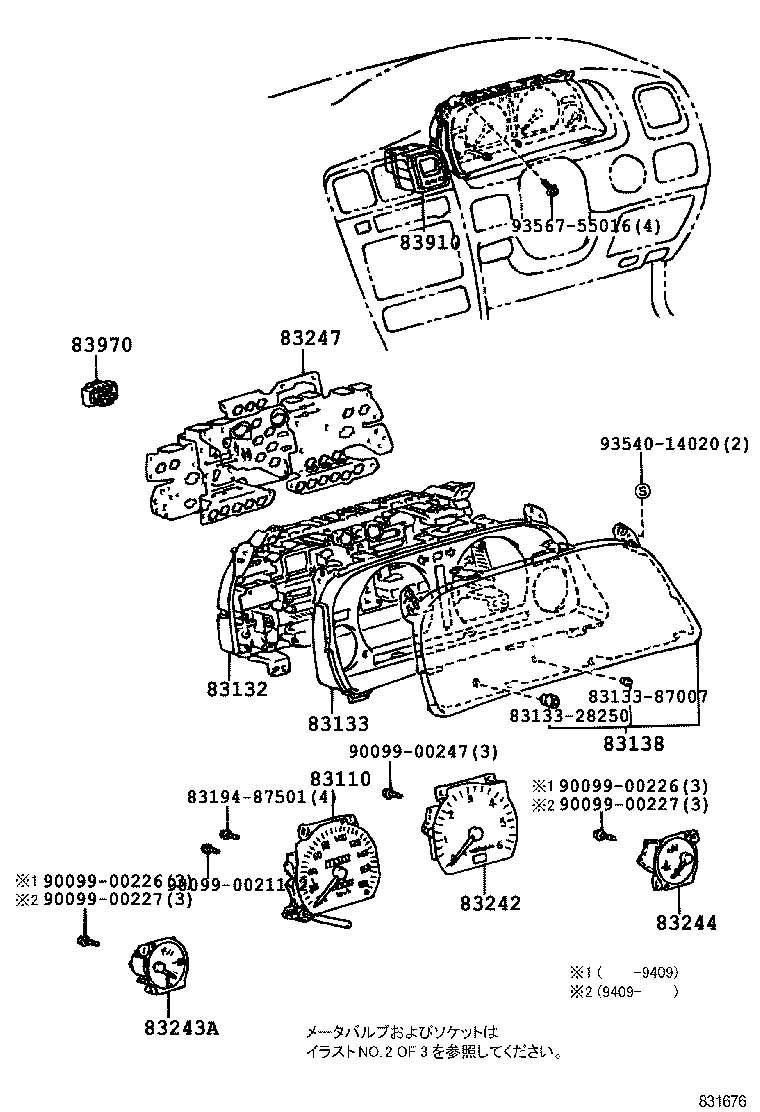

ILLUST NO. 1 OF 3(9210- )
ｱﾅﾛｸﾞﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A850 |
GX90,JZX90,93,SX90..GD,GL,GRO,TOUS,TOUV |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A870 |
JZX90..GD,TOUS |
1 | ||
| 83132-2A670 |
JZX90..GD,TOUS ｱﾘ(*TRC) |
1 | ||
| 83132-2C030 |
JZX90..GD,TOUS ｱﾘ(*TRC) |
1 | ||
| 83132-2A880 |
GX90,JZX90,93..ATM..GD ﾃﾞｼﾞﾀﾙﾒ-ﾀﾖｳ |
1 | ||
| 83132-2C090 |
GX90,JZX90..ATM..(GD,TOUS) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-2A190 |
JZX90,93..ATM..(GD,TOUS,TOUV) |
1 | ||
| 83133-2A190 |
JZX90..GD,TOUS ｱﾘ(ｴｱ ﾊﾞﾂｸ) |
1 | ||
| 83133-2A230 |
GX90,JZX90..ATM..(GD,TOUS) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-2A180 |
GX90,JZX90,93..ATM..GD ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) |
1 | ||
| 83138-22550 |
GX90,JZX90,93,SX90..GD,GL,GRO,TOUS,TOUV |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-2A070 |
JZX90..GD,TOUS ｱﾘ(*TRC) |
1 | ||
| 83242-2A150 |
JZX90..GD,TOUS |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-22510 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22510 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-2A880 |
GX90,JZX90,93..ATM..GD ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83247-2C310 |
GX90,JZX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 83247-2C210 |
JZX90..MTM;GX90,JZX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22460 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
GX90,JZX90,93..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,MATUSHITA |
1 | ||
| 83970-20010 |
GX90,JZX90..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,NIPPONDENSO |
1 | ||
| 83970-12020 |
GX90,JZX90..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,MATUSHITA |
1 | ||
| 83970-20010 |
GX90,JZX90,93,LX90,SX90..ATM..(GD,GL,GRO,TOUS,TOUV) |
1 | ||
| 83970-20010 |
GX90,JZX90,93..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,NIPPONDENSO |
1 | ||
| Common parts | ||||
| 83133-28250 | ||||
| 83133-87007 | ||||
| 83194-87501 | ||||
| 90099-00211 | ||||
| 90099-00226 | ||||
| 90099-00227 | ||||
| 90099-00247 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
ILLUST NO. 1 OF 3(9210- )
ﾃﾞｼﾞﾀﾙﾒ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83116 - BRACKET, SPEEDOMETER | ||||
| 83116-2A060 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83116A - BRACKET, SPEEDOMETER NO.2 | ||||
| 83116-2A080 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83116-2A080 |
GX90,JZX90,91..ATM..(GD,GDG) |
1 | ||
| 83125 - SWITCH ASSY, METER | ||||
| 83125-2A060 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-2A870 |
JZX90..GD,TOUS |
1 | ||
| 83132-2A670 |
JZX90..GD,TOUS ｱﾘ(*TRC) |
1 | ||
| 83132-2C030 |
JZX90..GD,TOUS ｱﾘ(*TRC) |
1 | ||
| 83132-2A880 |
GX90,JZX90,93..ATM..GD ﾃﾞｼﾞﾀﾙﾒ-ﾀﾖｳ |
1 | ||
| 83132-2C090 |
GX90,JZX90..ATM..(GD,TOUS) |
1 | ||
| 83132A - CASE, METER | ||||
| 83132-2B540 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83132-2B540 |
JZX93..GDG;GX90,JZX90,91..ATM..(GD,GDG) |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-2A660 |
GX90,JZX90,91..ATM..(GD,GDG) |
1 | ||
| 83134-2A720 |
GX90,JZX90,91..ATM..(GD,GDG) |
1 | ||
| 83134B - COVER, COMBINATION METER, NO.2 | ||||
| 83134-2A680 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83136-2A040 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-2A180 |
GX90,JZX90,93..ATM..GD ｱﾘ(ﾃﾞｼﾞﾀﾙ ｽﾋﾟ-ﾄﾞ ﾒ-ﾀ) |
1 | ||
| 83138-22550 |
GX90,JZX90,93,SX90..GD,GL,GRO,TOUS,TOUV |
1 | ||
| 83138G - GLASS, COMBINATION METER | ||||
| 83138-2A160 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83125-2A080 |
JZX93..GDG;GX90,JZX90,91..ATM..(GD,GDG) |
1 | ||
| 83125-2A080 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-2A880 |
GX90,JZX90,93..ATM..GD ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83247-2C310 |
GX90,JZX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 83247-2C210 |
JZX90..MTM;GX90,JZX90,SX90..GD,GL,GRO,TOUS |
1 | ||
| 83247B - PLATE, METER CIRCUIT, NO.2 | ||||
| 83247-2A840 |
JZX90,91..GD,GDG |
1 | ||
| 83247-2A840 |
JZX90..GD ﾃﾞｼﾞﾀﾙﾒ-ﾀﾖｳ |
1 | ||
| 83247C - PLATE, MATER CIRCUIT, NO.3 | ||||
| 83149-2A100 |
JZX90..GD ｱﾘ(*TRC) & ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83149-2A600 |
JZX90..GD ｱﾘ(ｴｱ ﾊﾞﾂｸ) ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83149-2A580 |
JZX90..GD ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83247-2A860 |
JZX90,91..GD,GDG |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-22430 |
JZX90..GD ｱﾘ(*TRC & ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83291-22420 |
JZX90..GD ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83291-22421 |
JZX90..GD ｱﾘ(ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83291-22431 |
JZX90..GD ｱﾘ(*TRC & ﾃﾞｼﾞﾀﾙﾒ-ﾀ) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22460 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 83970 - BUZZER ASSY, REVERSE WARNING | ||||
| 83970-12020 |
GX90,JZX90,93..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,MATUSHITA |
1 | ||
| 83970-20010 |
GX90,JZX90..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,NIPPONDENSO |
1 | ||
| 83970-12020 |
GX90,JZX90..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,MATUSHITA |
1 | ||
| 83970-20010 |
GX90,JZX90,93,LX90,SX90..ATM..(GD,GL,GRO,TOUS,TOUV) |
1 | ||
| 83970-20010 |
GX90,JZX90,93..ATM..GD ﾃﾞｼﾞﾀﾙ KM/H,NIPPONDENSO |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20260 | ||||
| 83161-20340 | ||||
| 83161-20380 | ||||
| 83161-20400 | ||||
| 83161-20740 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

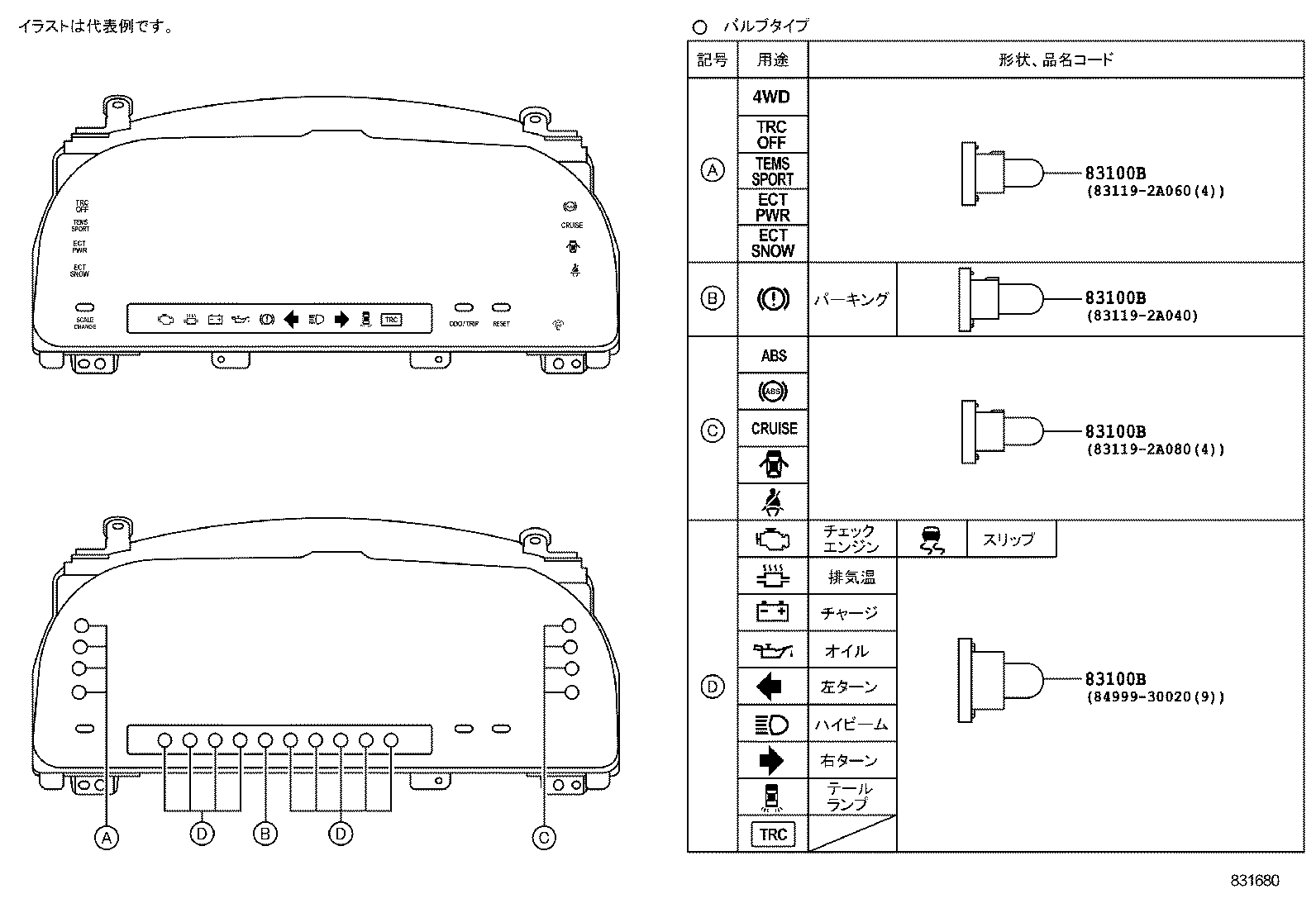

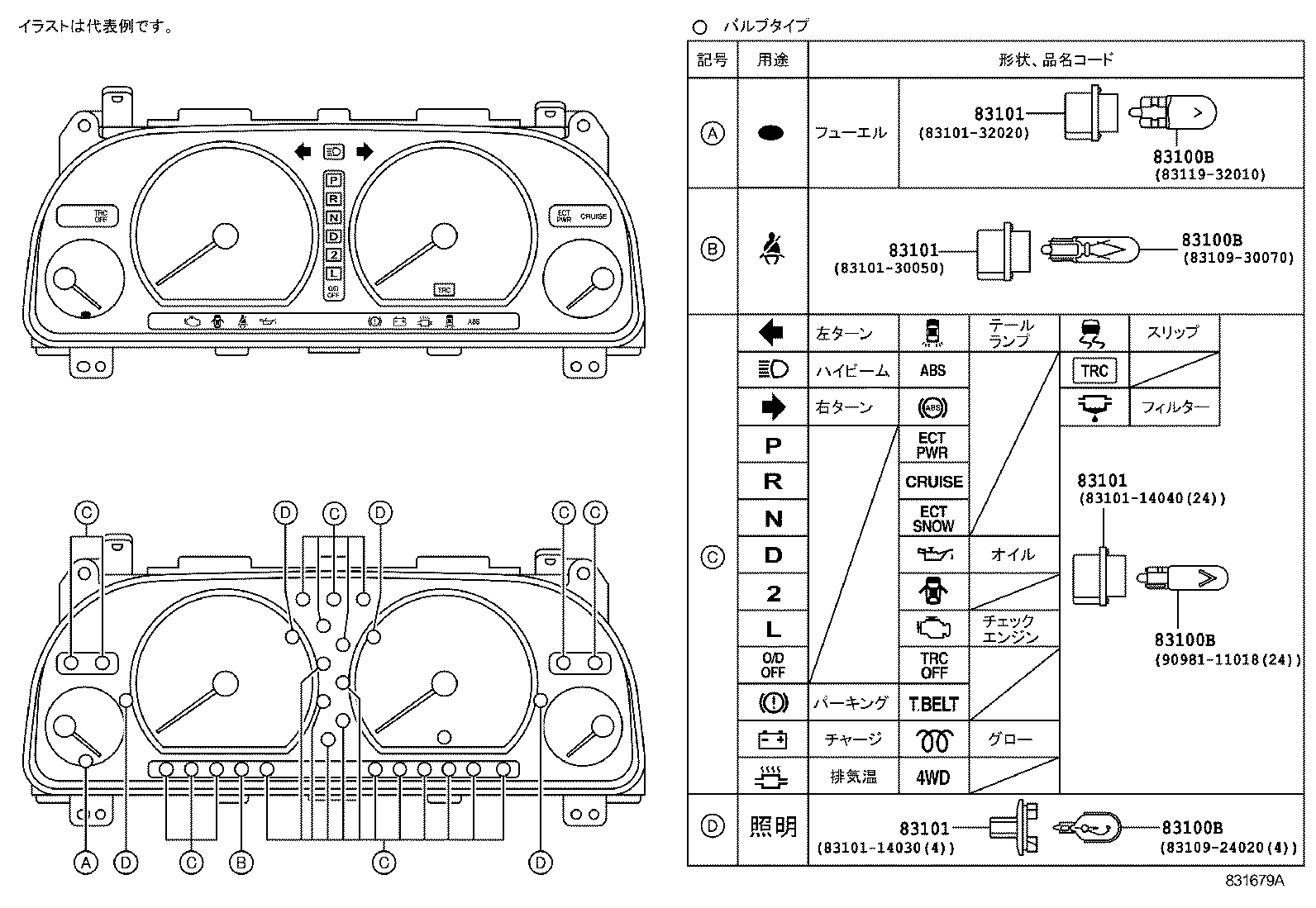

ILLUST NO. 2 OF 3(9210- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ｱﾅﾛｸﾞﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W |
4 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-32020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W |
4 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-32020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W |
4 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-32020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W |
1 | ||
| 83101-14030 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W |
4 | ||
| 83101-30050 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 2.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
| 83101-32020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83101-14040 |
GX90,JZX9#,LX90,SX90 12V 1.4W |
1 | ||
ILLUST NO. 2 OF 3(9210- )
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ(ﾃﾞｼﾞﾀﾙﾒｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83109-24020 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 12V 3.4W ｷｬｯﾌﾟ付き |
4 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83109-30070 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 2.0W,ｿｹｯﾄなし |
1 | ||
| 83119-2A060 |
GX90,JZX9#,LX90,SX90 14V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-32010 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV 14V 3.0W |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 90981-11018 |
GX90,JZX9#,LX90,SX90 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 84999-30020 |
GX90,JZX9#,LX90,SX90 12V 1.4W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A080 |
GX90,JZX9#,LX90,SX90 14V 1.12W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
| 83119-2A040 |
GX90,JZX9#,LX90,SX90 12V 2W,ﾃﾞｼﾞﾀﾙﾒｰﾀﾖｳ |
1 | ||
ILLUST NO. 3 OF 3(9210- )
ｽﾋﾟ-ﾄﾞ ｾﾝｻ & ｽﾋﾟ-ﾄﾞｳｵ-ﾆﾝｸﾞ ﾌﾞｻﾞ-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82219D - WIRE, SENSOR | ||||
| 82219-24010 |
GX90,JZX9#..ATM..(GD,GDG) |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24050 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-24050 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 90301-18004 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 86650G - BUZZER ASSY | ||||
| 86650-12030 |
GX90,JZX90,93,LX90,SX90..GD,GL,GRO,TOUS,TOUV |
1 | ||
| Common parts | ||||
| 90159-40027 | ||||
| 91611-60820 | ||||
| 91651-40825 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
