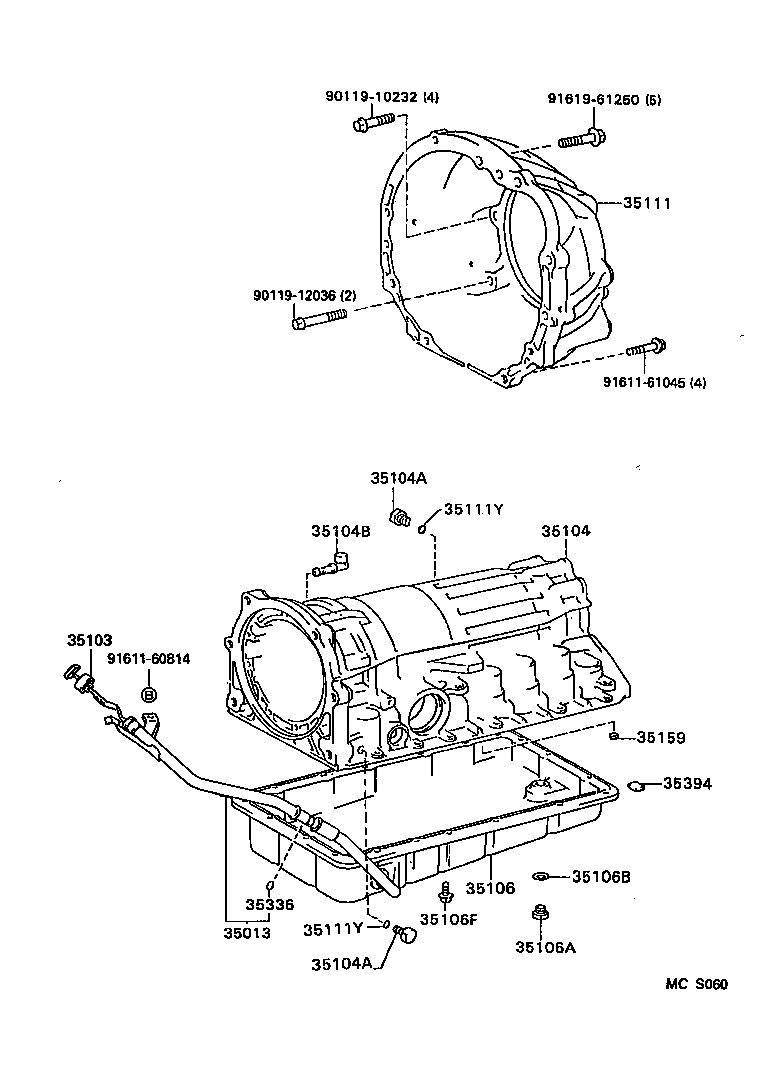

JZX90-ATMVZ (1992)
Toyota Mark 2
(9210-9409)JZX90,91..ATM
A340E,A341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22460 |
JZX90..ATM..TOUV |
1 | ||
| 35013-22360 |
JZX90..ATM..TOUV |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-22220 |
JZX90..ATM..TOUV |
1 | ||
| 35103-22320 |
JZX90..ATM..TOUV |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30170 |
JZX90..ATM..TOUV |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX90,JZX90,91,LX90,SX90..ATM |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX90,JZX90,91,LX90,SX90..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-24020 |
JZX90,91..ATM |
1 | ||
| 35106-30180 |
JZX90,91..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
JZX9#..ATM |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22081 |
JZX9#..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX90,JZX9#,LX90,SX90..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX90,JZX9#,LX90,SX90..ATM |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
JZX9#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
JZX9#..ATM |
4 | ||
| 35394-30011 |
JZX90,91..ATM |
3 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 91611-60814 | ||||
| 91611-61014 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||

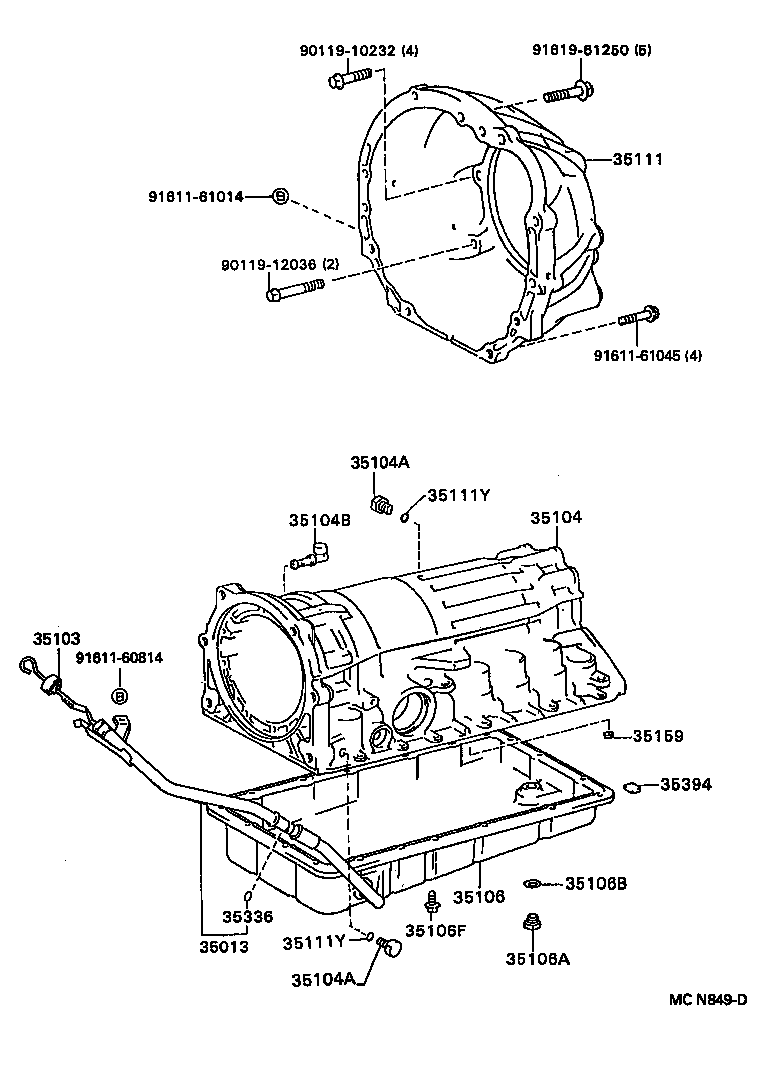

(9409- )JZX90,91..ATM
A340E,A341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22460 |
JZX90..ATM..TOUV |
1 | ||
| 35013-22360 |
JZX90..ATM..TOUV |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-22220 |
JZX90..ATM..TOUV |
1 | ||
| 35103-22320 |
JZX90..ATM..TOUV |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-30170 |
JZX90..ATM..TOUV |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX90,JZX90,91,LX90,SX90..ATM |
2 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX90,JZX90,91,LX90,SX90..ATM |
2 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-24020 |
JZX90,91..ATM |
1 | ||
| 35106-30180 |
JZX90,91..ATM |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GX90,JZX90,91,LX90,SX90..ATM |
1 | ||
| 35106F - BOLT (FOR AUTOMATIC TRANSMISSION OIL PAN) | ||||
| 90119-06513 |
JZX9#..ATM |
19 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22081 |
JZX9#..ATM |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX90,JZX9#,LX90,SX90..ATM |
2 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX90,JZX9#,LX90,SX90..ATM |
2 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
JZX9#..ATM |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GX90,JZX9#,LX90,SX90..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
JZX9#..ATM |
4 | ||
| 35394-30011 |
JZX90,91..ATM |
3 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 91611-60814 | ||||
| 91611-61045 | ||||
| 91619-61250 | ||||
