JZX81-ATPZF (1990)

Toyota Mark 2

Production Aug 1990 - Oct 1992
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZX81

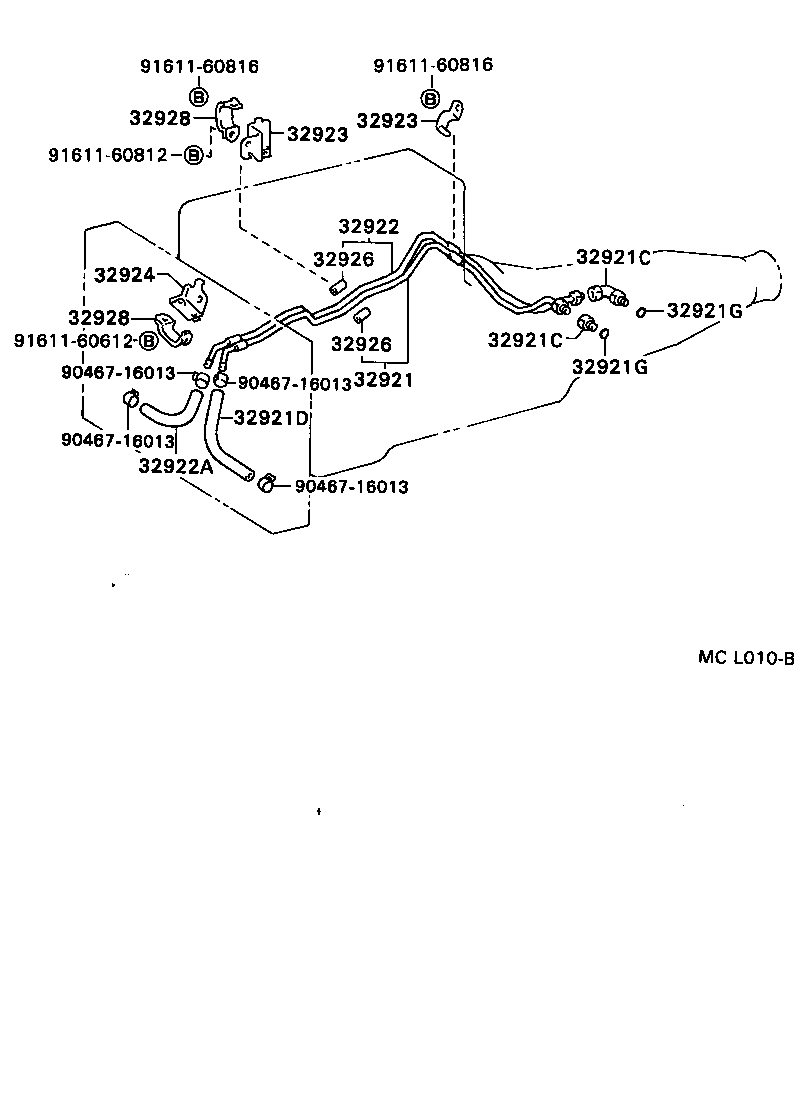

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32923 32924 32926 32926 32928 32928 9046716013 9046716013 9046716013 9046716013 9161160612 9161160812 9161160816 9161160816
Part # Description Qty Price
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

GX81,JZX81,MX83..4FC..(SPC,TWC,TWT)

 2
Common parts
90467-16013
91611-60612
91611-60812
91611-60816
