JZX81-AEPZF (1990)
Toyota Mark 2

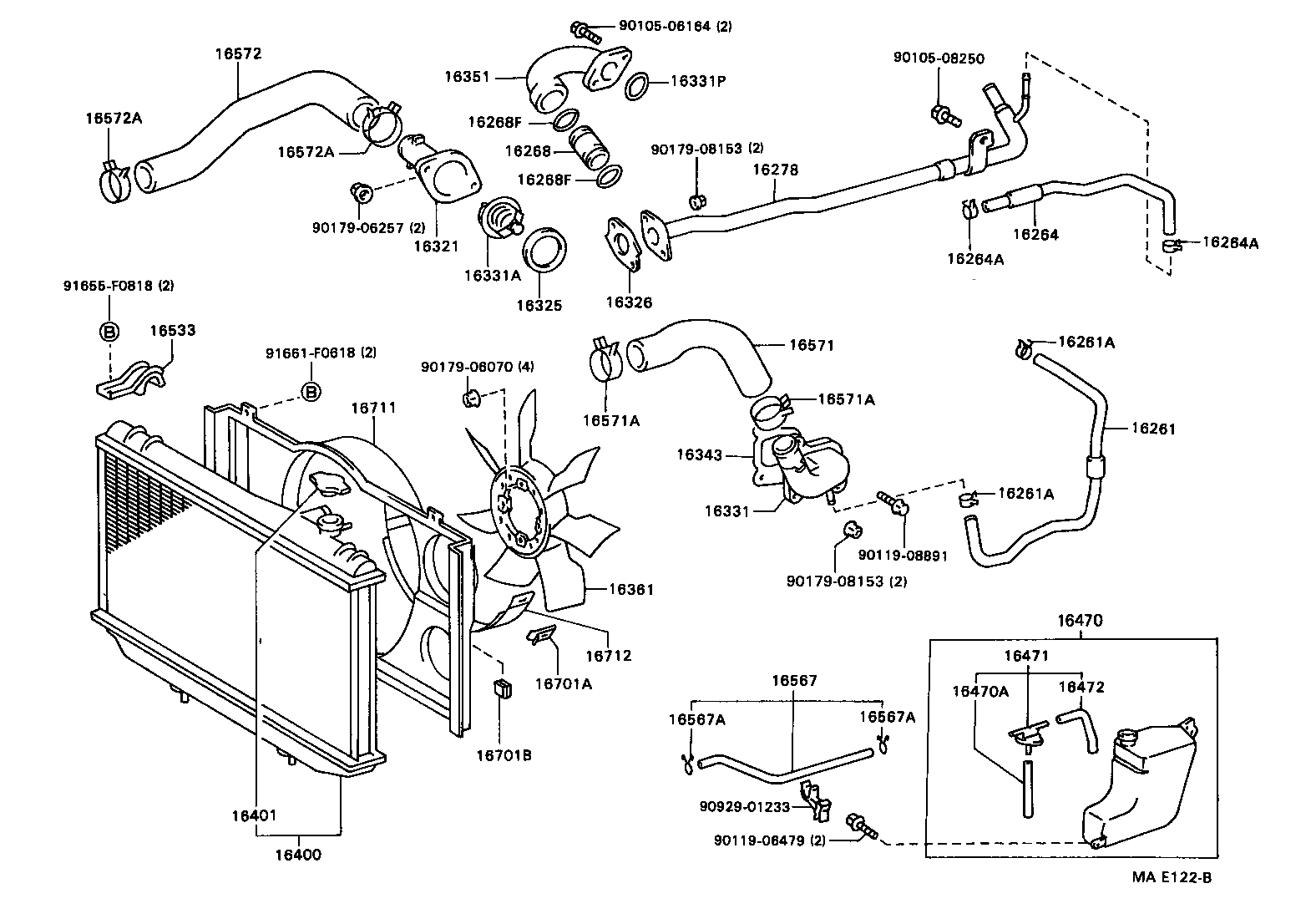

ILLUST NO. 1 OF 2(9008- )1JZGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-46020 |
1JZGE..JZX81 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1JZGE..JZX81 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13050 |
1JZGE..JZX81 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-46010 |
1JZGE..JZX81 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE..JZX81 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13050 |
1JZGE..JZX81 |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-46010 |
1JZGE..JZX81 |
1 | ||
| 16268-46011 |
1JZGE..JZX81 |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
1JZGE..JZX81 |
2 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24022 |
1JZGE..JZX81 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-46010 |
1JZGE..JZX81 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-46040 |
1JZGE..JZX81 |
2 | ||
| 16321-46010 |
1JZGE..JZX81 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1JZ#..JZX81 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16325-46010 |
1JZ#..JZX81 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-46020 |
1JZGE..JZX81 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03093 |
1JZGE..JZX81 *WAX 82−95 |
1 | ||
| 90916-03092 |
1JZ#..JZX81 *WAX 82−95 |
1 | ||
| 90916-03093 |
1JZ#..JZX81 *WAX 82−95 |
1 | ||
| 16331P - RING,O(FOR WATER OUTLET) | ||||
| 96761-24028 |
1JZGE..JZX81 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-46020 |
1JZGE..JZX81 |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-46010 |
1JZGE..JZX81 |
1 | ||
| 16361 - FAN | ||||
| 16361-46030 |
1JZGE..JZX81 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-46040 |
1JZGE..JZX81 |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-46010 |
1JZ#..JZX81 |
2 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-46010 |
1JZ#..JZX81 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1JZ#..JZX81 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1JZ#..JZX81 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-46010 |
1JZGE..JZX81 |
1 | ||
| 16571-46010 |
1JZGE..JZX81 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1JZ#..JZX81 |
2 | ||
| 90467-37002 |
1JZ#..JZX81 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1JZ#..JZX81 |
2 | ||
| 90467-37002 |
1JZ#..JZX81 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-46110 |
1JZGE..JZX81 |
1 | ||
| 16572-46010 |
1JZGE..JZX81 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1JZ#..JZX81 |
2 | ||
| 90467-41007 |
1JZ#..JZX81 INLET SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1JZ#..JZX81 |
2 | ||
| 90467-41007 |
1JZ#..JZX81 INLET SIDE |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
1JZGE..JZX81 |
2 | ||
| 16701B - CUSHION, FAN SHROUD | ||||
| 90541-11002 |
1JZGE..JZX81 |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-46010 |
1JZGE..JZX81 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-46010 |
1JZGE..JZX81 |
1 | ||
| Common parts | ||||
| 90105-06164 | ||||
| 90105-08250 | ||||
| 90119-06479 | ||||
| 90119-08891 | ||||
| 90179-06070 | ||||
| 90179-06257 | ||||
| 90179-08153 | ||||
| 90929-01233 | ||||
| 91655-F0818 | ||||
| 91661-F0618 | ||||
