JZX81-AEPQF (1990)

Toyota Mark 2

Production Aug 1990 - Feb 1993
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )GX81,JZX81,MX83,SX80,YX80..GD,GDG,GT,KYO ; (9302- )GX81,SX80..GD,GL,G

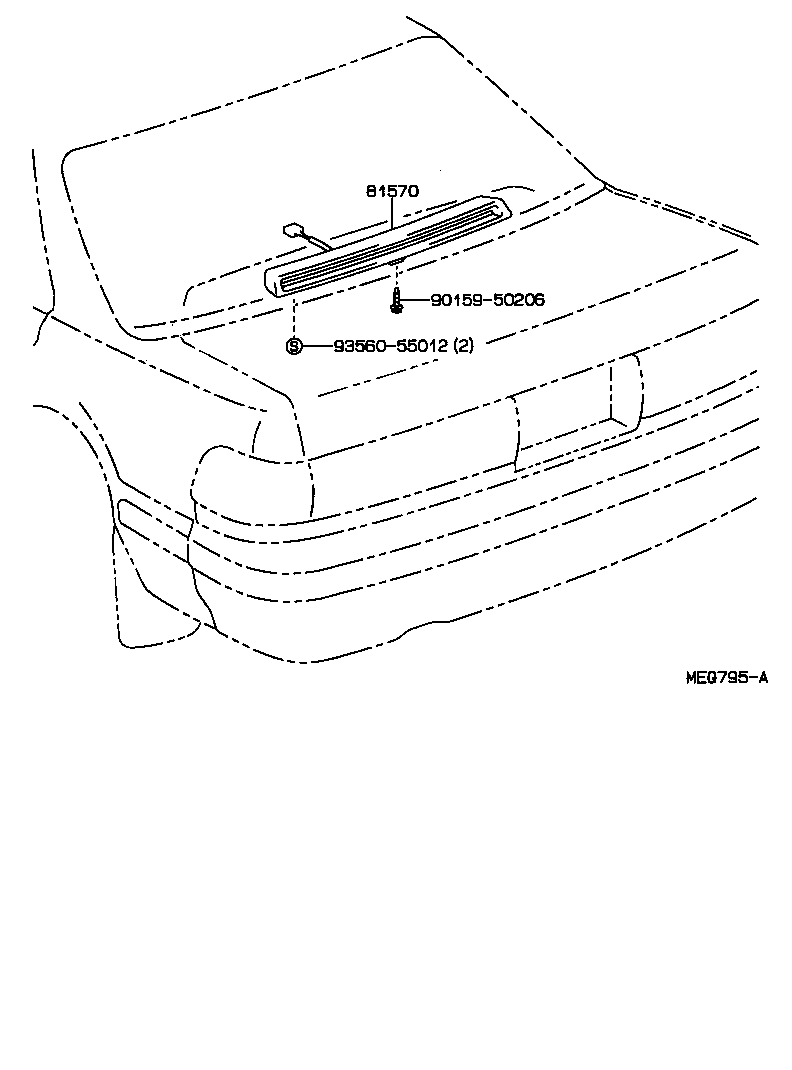

Click highlighted areas on diagram

diagram 81570 9015950206 9356055012
Part # Description Qty Price
81570 - LAMP ASSY, CENTER STOP
81570-2203006

GX81,JZX81,MX83..SED..(GD,GDG)

SABLE,TRIM4#

 1
81570-2203003

GX81,JZX81,MX83..SED..(GD,GDG)

GRAY,TRIM1#

 1
81570-2203002

GX81,JZX81,MX83..SED..(GD,GDG)

MAROON,TRIM3#

 1
Common parts
90159-50206
93560-55012
