JZX81-AEPQF (1990)

Toyota Mark 2

Production Aug 1990 - Feb 1993
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )JZX81..TWC

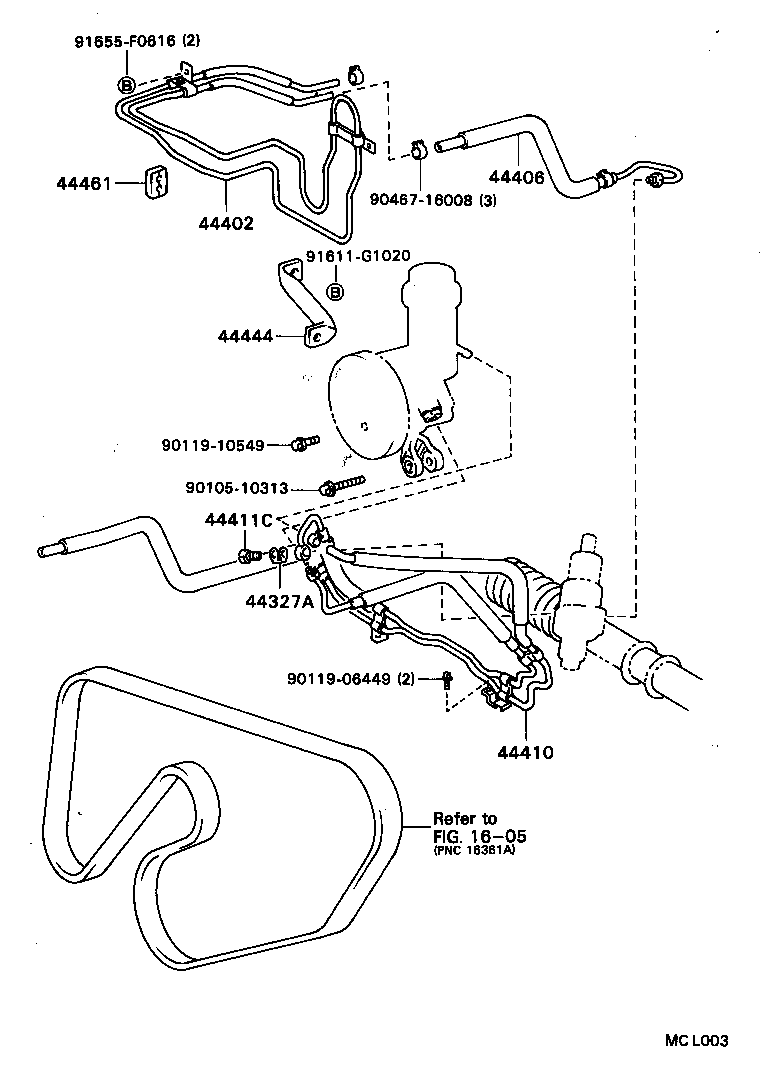

Click highlighted areas on diagram

diagram 1605 44327A 44402 44406 44410 44411C 44444 44461 9010510313 9011906449 9011910549 9046716008 91611G1020 91655F0616
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-12010

GX81,JZX81,MX83..SPC,TWC,TWT

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22201

GX81,JZX81,MX83..TWC

 1
44406 - TUBE SUB-ASSY, RETURN
44406-22131

GX81,JZX81,MX83..TWC,TWT

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-22500

JZX81..TWC

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90401-16008

GX81,JZX81,MX83..SPC,TWC,TWT

 1
44444 - STAY, PUMP, REAR
44444-22090

JZX81

 1
Common parts
90105-10313
90119-06449
90119-10549
90467-16008
91611-G1020
91655-F0616
Linked diagrams
1605
