JZX105-ATPQF (1996)
Toyota Mark 2
Production
Sep 1996
-
Oct 2000
Engine
1JZGE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )GX105,JZX105

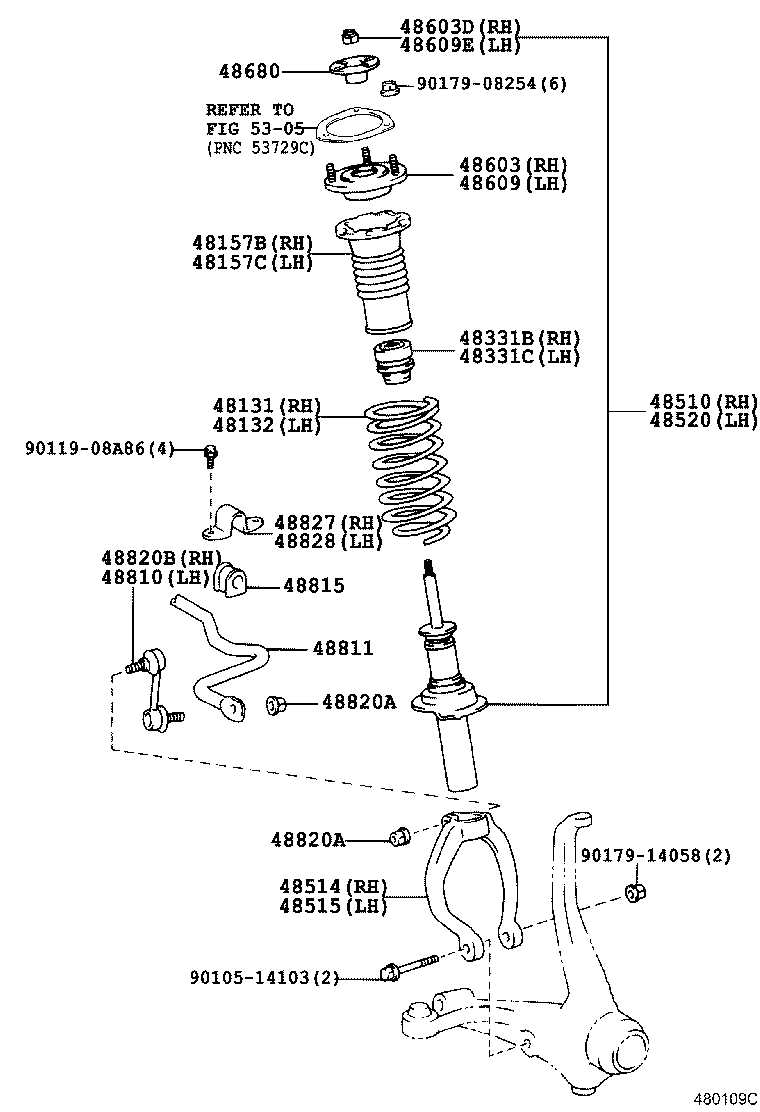

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-2C230 |
JZX105 |
1 | ||
| 48131-2C240 |
JZX105 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-2C230 |
JZX105 |
1 | ||
| 48131-2C240 |
JZX105 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-22050 |
GX105,JZX105 |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-22050 |
GX105,JZX105 |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-30110 |
GX10#,JZX10#,LX100 |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-30110 |
GX10#,JZX10#,LX100 |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-29615 |
JZX105 |
1 | ||
| 48510-29715 |
JZX105 |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-22020 |
GX105,JZX105 |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-22020 |
GX105,JZX105 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-29325 |
JZX105 |
1 | ||
| 48520-29425 |
JZX105 |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48680-22040 |
GX105,JZX105 |
1 | ||
| 48603D - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH) | ||||
| 90179-12140 |
GX100,JZX100,105,LX100..GD,GL,TOU,TOUS,TOUV |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48680-22060 |
GX105,JZX105 |
1 | ||
| 48609E - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH) | ||||
| 90179-12140 |
GX100,JZX100,105,LX100..GD,GL,TOU,TOUS,TOUV |
1 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48680-22050 |
GX105,JZX105 |
2 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48810-22041 |
GX105,JZX105 |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-22530 |
GX105,JZX105 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-22180 |
GX105,JZX105 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12051 |
GX105,JZX105 ｽﾀﾋﾞﾗｲｻﾞﾊﾞｰ側 |
2 | ||
| 90179-12047 |
GX10#,JZX10#,LX100 ﾌﾞﾗｹｯﾄ側 |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12051 |
GX105,JZX105 ｽﾀﾋﾞﾗｲｻﾞﾊﾞｰ側 |
2 | ||
| 90179-12047 |
GX10#,JZX10#,LX100 ﾌﾞﾗｹｯﾄ側 |
2 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-22051 |
GX105,JZX105 |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48824-22060 |
GX105,JZX105 |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48824-22060 |
GX105,JZX105 |
1 | ||
| Common parts | ||||
| 90105-14103 | ||||
| 90119-08A86 | ||||
| 90179-08254 | ||||
| 90179-14058 | ||||
| Linked diagrams | ||||
| 5305 | ||||
