JZX105-ATPQF (1996)

Toyota Mark 2

Production Sep 1996 - Oct 2000
Engine 1JZGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9609- )GX10#,JZX100,105..GD,GDG,TOU,TOUS

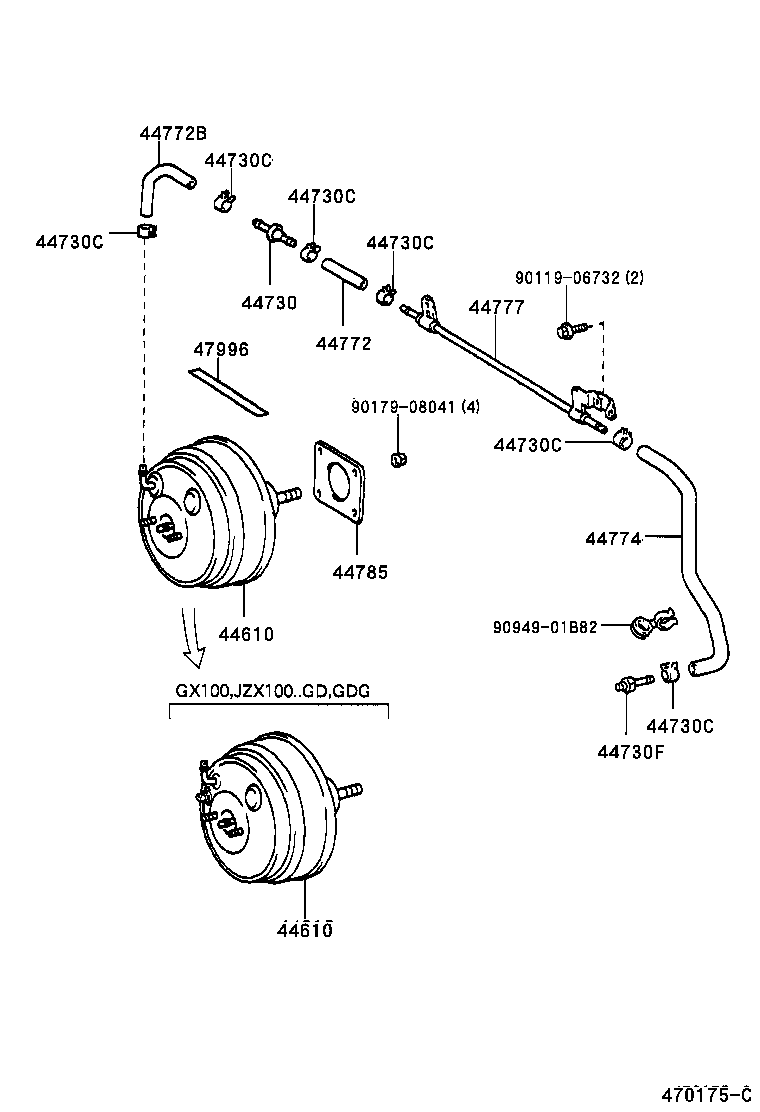

Click highlighted areas on diagram

diagram 44610 44610 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730F 44772 44772B 44774 44777 44785 47996 9011906732 9017908041 9094901B82
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-2A230

GX105,JZX105;GX100,JZX100..TOU,TOUS

 1
44610-2A160

JZX100,105..GD,GDG,TOUS

 1
44610 - BOOSTER ASSY, BRAKE
44610-2A230

GX105,JZX105;GX100,JZX100..TOU,TOUS

 1
44610-2A160

JZX100,105..GD,GDG,TOUS

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-10010

GX100,JZX100,105

 1
44730-10010

GX10#,JZX10#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX10#,JZX10#,LX100

 6
90467-16002

GX100,JZX100,105,LX100

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX10#,JZX10#,LX100

 6
90467-16002

GX100,JZX100,105,LX100

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX10#,JZX10#,LX100

 6
90467-16002

GX100,JZX100,105,LX100

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX10#,JZX10#,LX100

 6
90467-16002

GX100,JZX100,105,LX100

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX10#,JZX10#,LX100

 6
90467-16002

GX100,JZX100,105,LX100

 6
44730C - CLIP(FOR VACUUM HOSE)
90467-16002

GX10#,JZX10#,LX100

 6
90467-16002

GX100,JZX100,105,LX100

 6
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GX10#,JZX100,105..GD,GDG,TOU,TOUS

 1
90404-51319

JZX100,105..GD,GDG,TOUS

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-22300

GX10#,JZX10#

 1
44772-22300

GX100,JZX100,105

 1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22310

GX100,JZX100,105

 1
44772-22310

GX10#,JZX10#

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22350

JZX105

 1
44777 - CONNECTOR, VACUUM HOSE, NO.1
44770-22040

GX100,JZX100,105

 1
44770-22040

JZX10#

 1
44785 - GASKET, BRAKE BOOSTER
44785-32010

GX100,JZX100,105,LX100

 1
44785-32010

GX10#,JZX10#,LX100

 1
Common parts
90119-06732
90179-08041
90949-01B82
